935004 (YT 832) - Ariens Sierra 32" Yard Tractor, 8hp Tecumseh, Gear (SN: 000901 & Above) Engine, Fuel System & Electrical Components Parts Diagram

Sierra 32" Yard Tractor, 8hp Tecumseh, Gear

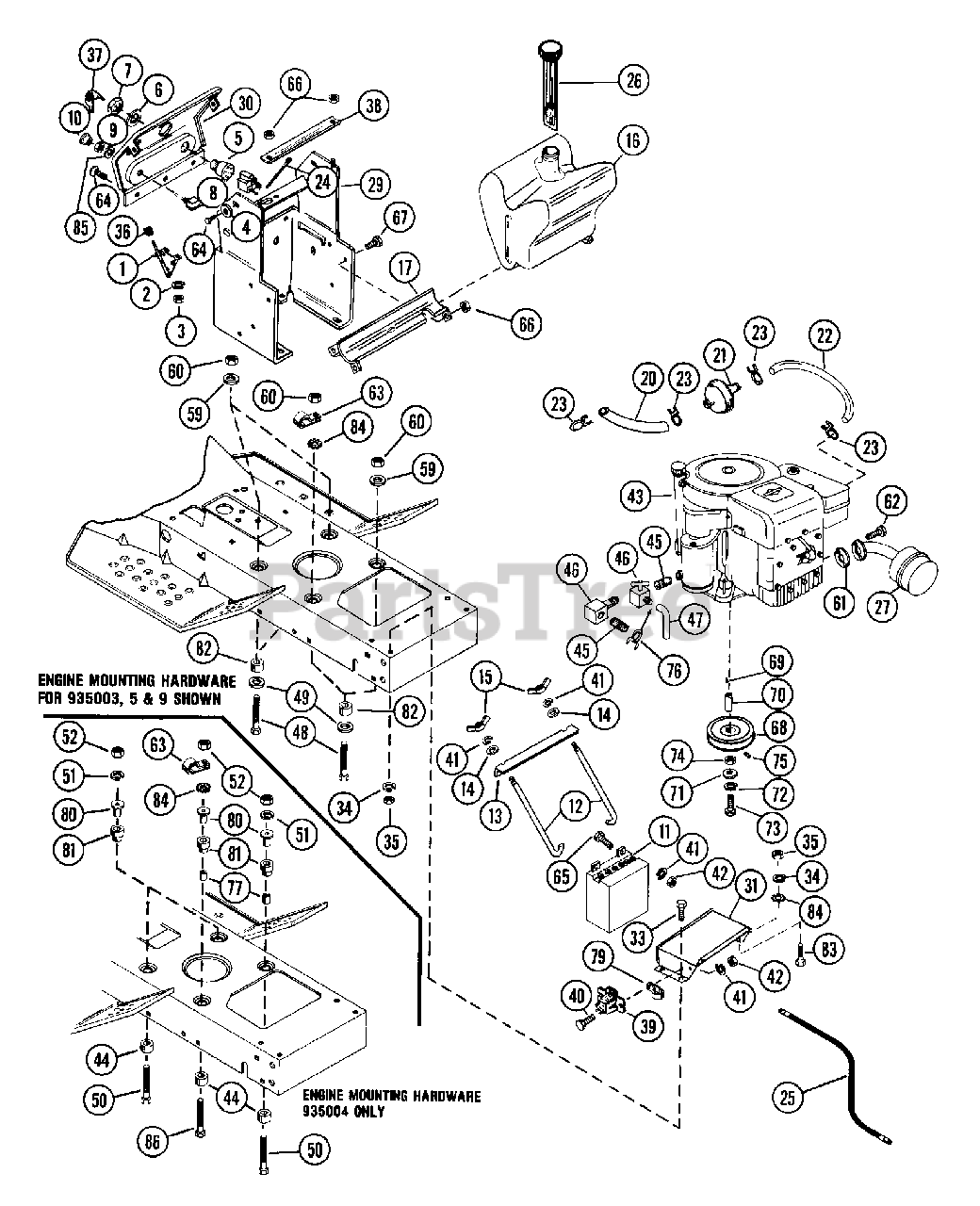

Engine, Fuel System & Electrical Components Parts Diagram

  • Title

1

Ariens 06909500

THROTTLE
(Superseded to 06912600)

$

$

Not available

2

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

$1.49

$

Usually ships in 4-12 days

0

3

Ariens 06505500

NUT-HEX 10-24 PL

$

$

Not available

4

Ariens 06400100

WSHR-FL-STL .250X.562X.049 PL
(Superseded to 06442300)

$1.99

$

In Stock, only 2 left!

0

5

Ariens 02914900

IGNITION SWITCH
(Superseded to 53507600)

$62.99

$

In Stock, only 1 left!

0

6

Ariens 06302900

WSHR-LK-INT .563X.040 PL
(Superseded to 06310900)

$2.49

$

In Stock, only 4 left!

0

7

Ariens 06510600

NUT .562-24

$

$

Not available

8

Ariens 03115100

LIGHT SWITCH
(Superseded to 51513800)

$34.99

$

Usually ships in 4-12 days

0

9

Ariens 06510400

NUT .50-20 PL

$

$

Not available

10

Ariens 07506800

KNOB

$5.99

$

Usually ships in 4-12 days

0

11

Ariens 02917500

BATTERY
(Superseded to 53123300)

$

$

Not available

12

Ariens 03507000

HOOK BOLT

$

$

Not available

13

Ariens 01304400

BATTERY HOLD DOWN
(Superseded to 03057800)

$

$

Not available

14

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 10

0

15

Ariens 06501200

NUT-WING .250-20 YWZC

$2.49

$

Usually ships in 4-12 days

0

16

Ariens 03507100

FUEL TANK
(Superseded to 03563700)

$

$

Not available

17

Ariens 03539200

LOWER TANK SUPPORT
(Superseded to 03507200)

$

$

Not available

20

Ariens 03153700

PARTS MANUAL - PM-31

$

$

Not available

21

Ariens 02910800

FUEL FILTER

$7.49

$

Usually ships in 4-12 days

0

22

Ariens 03153700

PARTS MANUAL - PM-31

$

$

Not available

23

Ariens 02917200

CLAMP-HOSE WIR.490/.510X.092#8
(Superseded to 06939100)

$3.99

$

In Stock, Qty 20+

0

24

Ariens 06905300

TIE DOWN
(Superseded to 07517300)

$

$

Not available

25

Ariens 03111100

GROUND CABLE .31X22.00X.31
(Superseded to 03111101)

Note: (Used Only On Model(s): 935003,005,009).

$20.99

$

In Stock, only 2 left!

0

26

Ariens 03507600

FUEL GAUGE

$47.99

$

Usually ships in 4-12 days

0

27

Ariens 03511200

EXHAUST MUFFLER

Note: (Used Only On Model(s): 935003,005,009).

$

$

Not available

27

EXHAUST MUFFLER

Note: (Used Only On Model(s): 935004). CONSISTS OF: 71028 TIRE, 71129 RIM, 54089 BEARINGS

$

$

Not available

29

Ariens 53501600

DASH BASE WITH DECALS
(Superseded to 53507100)

$

$

Not available

30

Ariens 03538900

DASH

Note: (USE W/DASH DECAL 078547)

$

$

Not available

31

Ariens 03500400

BATTERY STAND

$

$

Not available

32

Ariens 53502800

FRAME W/DECALS

$

$

Not available

33

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 16

0

34

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

35

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

36

Ariens 07501900

KNOB

$

$

Not available

37

Ariens 01315700

KEYS
(Superseded to 02460700)

$7.99

$

In Stock, Qty 19

0

38

Ariens 03507400

CLAMP STRAP

$

$

Not available

39

Ariens 03533500

SOLENOID
(Superseded to 53504000)

$73.99

$

In Stock, only 1 left!

0

40

Ariens 05913200

BLT-HEX .25-20X1.00 GR2
(Superseded to 05947700)

$1.49

$

In Stock, Qty 7

0

41

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

42

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 7

0

43

ENGINE

$

$

Not available

44

Ariens 03531000

TOP ISOLATION MOUNT
(Superseded to 53503300)

Note: (Used Only On Model(s): 935004).

$

$

Not available

45

Ariens 03507700

BUSHING
(Superseded to 03493100)

Note: (Used Only On Model(s): 935003,005,009).

$5.99

$

Usually ships in 4-12 days

0

46

Ariens 03510500

DRAIN LOCK

Note: (Used Only On Model(s): 935003,005,009).

$

$

Not available

46

Ariens 03524200

PIPE FITTING 90 DEG. X 3/8 ELB

Note: (Used Only On Model(s): 935004).

$

$

Not available

47

Ariens 03510100

TUBE

Note: (Used Only On Model(s): 935003,005).

$

$

Not available

48

Ariens 05917000

BLT-HEX .31-18X2.00 PL GR5
(Superseded to 05957200)

Note: (Used Only On Model(s): 935003,005,009).

$1.49

$

In Stock, Qty 14

0

49

Ariens 06409900

WSHR-FL-STL .312X1.62X.13

Note: (Used Only On Model(s): 935003,05,09).

$

$

Not available

50

Ariens 05913100

BLT-HEX .31-18X2.50 PL GR2
(Superseded to 05952600)

Note: (Used Only On Model(s): 935004).

$1.49

$

In Stock, only 4 left!

0

51

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

Note: (Used Only On Model(s): 935004).

$0.99

$

In Stock, only 4 left!

0

52

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

Note: (Used Only On Model(s): 935004).

$0.99

$

In Stock, Qty 16

0

59

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

Note: (Used Only On Model(s): 935003,005,009).

$0.99

$

In Stock, Qty 10

0

60

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

Note: (Used Only On Model(s): 935003,5,9).

$1.49

$

In Stock, Qty 20+

0

61

Ariens 03506300

GASKET - EXHAUST FLANGE

Note: (Used Only On Model(s): 935003,5,9).

$5.99

$

Usually ships in 4-12 days

0

62

Ariens 05909000

SCR-SKH .31-18X.75 PL

Note: (Used Only On Model(s): 935003,005,009).

$2.49

$

In Stock, Qty 20+

0

63

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 11

0

64

Ariens 07407300

SCR-SHT.MET10-16X.375 HWH PL B

$

$

Not available

65

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$0.99

$

In Stock, Qty 12

0

66

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

67

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 5

0

68

Ariens 07311200

PLY-? 3.50X1.0
(Superseded to 03550900)

$

$

Not available

69

Ariens 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 10

0

70

Ariens 03188100

BEARING SPACER 1.032X1.25X1.78

$26.99

$

In Stock, only 1 left!

0

71

Ariens 06415700

WSHR-FL-STL .469X1.380X.125

$

$

Not available

72

Ariens 06300500

WSHR-LK .438X.133 HVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

73

Ariens 05915300

BLT-HEX .44-20X1.00 GR5
(Superseded to 05964500)

$

$

Not available

74

Ariens 03506900

SPACER 1.032X1.250X.312
(Superseded to 03550900)

$

$

Not available

75

Ariens 06000600

SCR-SET .32-18X.25 SKHCUP OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 17

0

76

Ariens 03019900

HOSE CLAMP

Note: (Used Only On Model(s): 935003,5,9).

$

$

Not available

77

Ariens 03521600

RUBBER BUSHING

Note: (Used Only On Model(s): 935004).

$3.49

$

Usually ships in 4-12 days

0

79

Ariens 06911000

CLIP

$

$

Not available

80

Ariens 03530900

SPACER-SHOULDER
(Superseded to 53503300)

Note: (Used Only On Model(s): 935004).

$

$

Not available

81

Ariens 03531100

BOTTOM ISOLATION MOUNT
(Superseded to 53503300)

Note: (Used Only On Model(s): 935004).

$

$

Not available

82

Ariens 03506200

ENGINE SPACER

Note: (Used Only On Model(s): 935003,5,9).

$25.99

$

Usually ships in 4-12 days

0

83

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 16

0

84

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

$2.49

$

Usually ships in 4-12 days

0

85

Ariens 06405200

WSHR-FL-STL .382X.812X.023 PL
(Superseded to 06436500)

$2.49

$

In Stock, only 2 left!

0

86

Ariens 05907400

BLT-HEX .31-18X2.75 PL GR2
(Superseded to 05960600)

Note: (Used Only On Model(s): 935004).

$2.49

$

Usually ships in 4-12 days

0

86

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

Note: (CABLES TO SOLENOID)

$0.99

$

In Stock, only 4 left!

0

86

Ariens 06510000

NUT-JAM .312-24 PL
(Superseded to 06536700)

Note: (CABLES TO SOLENOID)

$0.99

$

In Stock, Qty 8

0

86

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

Note: (WIRING TO SOLENOID)

$1.49

$

Usually ships in 4-12 days

0

86

Ariens 06502600

NUT 10-32 PL

Note: (WIRING TO SOLENOID)

$

$

Not available
