935005 (YT 1132) - Ariens Sierra 32" Yard Tractor, 11hp Briggs & Stratton, Gear (SN: 002915 - 003500) Linkage Assembly Parts Diagram

Sierra 32" Yard Tractor, 11hp Briggs & Stratton, Gear

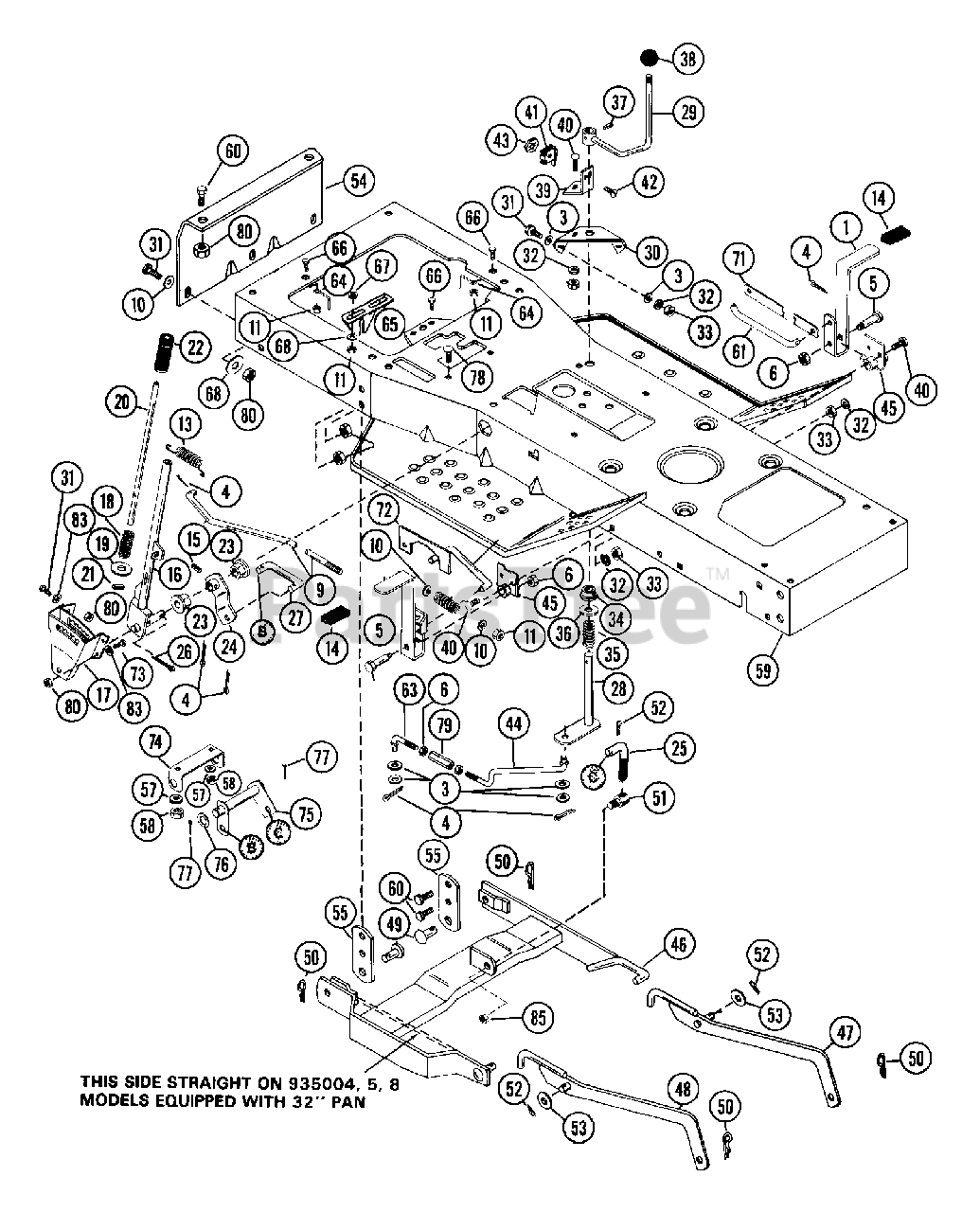

Linkage Assembly Parts Diagram

  • Title

1

Ariens 03503300

CLUTCH PEDAL
(Superseded to 03563800)

$

$

Not available

2

Ariens 06503400

NUT-LK-CTR .625-18 PL

$

$

Not available

3

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

5

Ariens 00301600

SHOULDER BOLT .50 X 1.75

$

$

Not available

6

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 03503500

BRAKE PEDAL

$

$

Not available

8

Ariens 03503600

PARKING BRAKE ROD

$

$

Not available

9

Ariens 03503700

BRAKE ROD

$

$

Not available

10

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

11

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 08309100

SG-COMP .102X.85X1.031

$

$

Not available

13

Ariens 08317800

SG-TENS .072X.75X2.81 WLD ??

$

$

Not available

14

Ariens 07502900

PEDAL COVER

$

$

Not available

15

Ariens 05804000

PIN-GRV .250X1.25 TP A

$

$

Not available

16

Ariens 03504500

LIFT HANDLE

$

$

Not available

17

Ariens 03504600

LIFT QUADRANT

$

$

Not available

18

Ariens 08310400

SG-COMP .048X.59X2.06 WLD9

$

$

Not available

19

Ariens 06409600

WSHR-FL-STL .458X.750X.06 PL

$

$

Not available

20

Ariens 03504700

PLUNGER ROD

$

$

Not available

21

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 11

0

22

Ariens 07505300

GRIP

$

$

Not available

23

Ariens 01212800

FLANGE BUSHING

$7.49

$

Usually ships in 4-12 days

0

24

Ariens 03504800

LIFT ARM

$

$

Not available

25

Ariens 03532200

ADJUSTMENT LINK

$

$

Not available

26

Ariens 06702100

PIN-COTR .12X1.50 PL
(Superseded to 06714300)

$2.49

$

Usually ships in 4-12 days

0

27

Ariens 03504900

LIFT LINK

$

$

Not available

28

Ariens 03505700

PTO LEVER

$

$

Not available

29

Ariens 03505800

P T O HANDLE

$

$

Not available

30

Ariens 03505900

BRACKET

$

$

Not available

31

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.99

$

In Stock, Qty 20+

0

32

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 5

0

33

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$1.49

$

In Stock, Qty 8

0

34

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$3.99

$

In Stock, Qty 11

0

35

Ariens 08313200

SG-COMP .080X.85X1.44

$

$

Not available

36

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$1.49

$

In Stock, only 4 left!

0

37

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 14

0

38

Ariens 07500100

SHIFT BALL
(Superseded to 07505200)

$22.99

$

In Stock, only 1 left!

0

39

Ariens 03506000

SWITCH BRACKET

$

$

Not available

40

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

41

Ariens 02707800

SWITCH INTERLOCK

$

$

Not available

42

Ariens 06105000

SCR-MCH 10-24X1.00 SLRH PL

$

$

Not available

43

Ariens 06505100

NUT-KEPS 10-24 PL
(Superseded to 06536600)

$0.99

$

In Stock, only 3 left!

0

44

Ariens 03534600

IDLER LINK

$

$

Not available

45

Ariens 03500500

PEDAL PIVOT

$5.99

$

Usually ships in 4-12 days

0

46

Ariens 03524100

REAR HANGER

Note: (Used Only On Model(s): 935003).

$

$

Not available

46

Ariens 03522300

REAR HANGER

Note: (Used Only On Model(s): 935004,005).

$

$

Not available

47

Ariens 03522500

RIGHT HANGER
(Superseded to 03563900)

$

$

Not available

48

Ariens 03522400

LEFT HANGER
(Superseded to 03564000)

$

$

Not available

49

Ariens 03138100

PIN-CLEV .494X1.25 YWZC
(Superseded to 06821600)

$3.99

$

In Stock, only 1 left!

0

50

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

51

Ariens 03532100

ROD END

$

$

Not available

52

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.99

$

In Stock, only 1 left!

0

53

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$1.49

$

In Stock, only 4 left!

0

54

Ariens 03502300

DRAW BAR

$

$

Not available

55

Ariens 03502400

HANGER BRACKET
(Superseded to 03588751)

$31.99

$

Usually ships in 4-12 days

0

57

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$1.49

$

In Stock, Qty 17

0

58

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.49

$

In Stock, Qty 20+

0

59

Ariens 53502800

FRAME W/DECALS

$

$

Not available

60

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.99

$

In Stock, Qty 10

0

61

Ariens 03503400

CLUTCH ROD

$

$

Not available

63

Ariens 03535200

IDLER ADJUSTOR LINK

$

$

Not available

64

Ariens 03175500

BELT FINGER

$

$

Not available

65

Ariens 03502600

CAM ACTUATOR

$

$

Not available

66

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

$2.99

$

In Stock, Qty 9

0

67

Ariens 03502700

SPACER -FLANGED .325X.498X.318

$

$

Not available

68

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$1.49

$

In Stock, Qty 20+

0

71

Ariens 03516700

LINK

$

$

Not available

72

Ariens 03516600

CAM

$

$

Not available

73

Ariens 05913400

BLT-HEX .31-18X1.25 PL GR5
(Superseded to 05947500)

$2.99

$

In Stock, Qty 6

0

74

Ariens 03500800

CENTER LIFT BRACKET

$

$

Not available

75

Ariens 03500900

CENTER LIFT LEVER

$

$

Not available

76

Ariens 06406200

WSHR-FL-STL .754X1.125X.062 PL
(Superseded to 06441400)

$1.49

$

In Stock, Qty 6

0

77

Ariens 06702100

PIN-COTR .12X1.50 PL
(Superseded to 06714300)

$2.49

$

Usually ships in 4-12 days

0

78

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

79

Ariens 06514700

NUT-CUPLG .375-16 PL

$

$

Not available

80

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

81

Ariens 06501700

NUT-JAM .50-13 PL
(Superseded to 06529300)

$1.99

$

In Stock, Qty 20+

0

83

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$1.49

$

In Stock, Qty 20+

0

84

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.99

$

Usually ships in 4-12 days

0

85

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$4.99

$

In Stock, Qty 16

0
