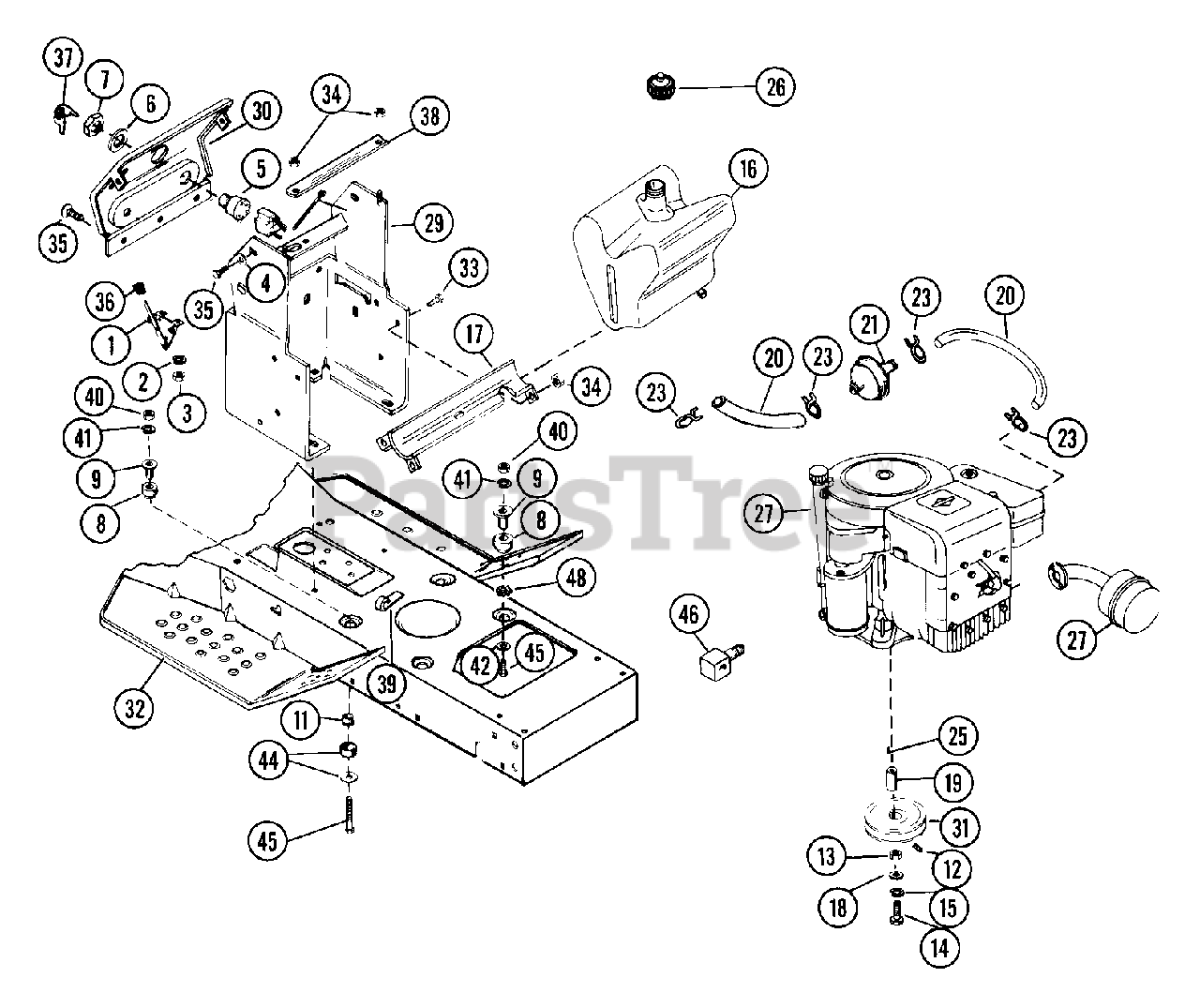

935008 (LT 832) - Ariens Sierra 32" Yard Tractor, 8hp Tecumseh, Gear (SN: 000101 & Above) Fuel System & Electrical Components Parts Diagram

Sierra 32" Yard Tractor, 8hp Tecumseh, Gear

Fuel System & Electrical Components Parts Diagram

  • Title

1

Ariens 06912600

THROTTLE CONTROL

$

$

Not available

2

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

$1.49

$

Usually ships in 4-12 days

0

3

Ariens 06505500

NUT-HEX 10-24 PL

$

$

Not available

4

Ariens 06400100

WSHR-FL-STL .250X.562X.049 PL
(Superseded to 06442300)

$1.99

$

In Stock, only 1 left!

0

5

Ariens 02914900

IGNITION SWITCH
(Superseded to 53507600)

$62.99

$

Usually ships in 4-12 days

0

6

Ariens 06302900

WSHR-LK-INT .563X.040 PL
(Superseded to 06310900)

$2.49

$

In Stock, only 3 left!

0

7

Ariens 06510600

NUT .562-24

$

$

Not available

8

Ariens 03531100

BOTTOM ISOLATION MOUNT
(Superseded to 53503300)

$

$

Not available

9

Ariens 03530900

SPACER-SHOULDER
(Superseded to 53503300)

$

$

Not available

11

Ariens 03521600

RUBBER BUSHING

$3.49

$

Usually ships in 4-12 days

0

12

Ariens 06000600

SCR-SET .32-18X.25 SKHCUP OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 17

0

13

Ariens 03506900

SPACER 1.032X1.250X.312
(Superseded to 03550900)

$

$

Not available

14

Ariens 05915300

BLT-HEX .44-20X1.00 GR5
(Superseded to 05964500)

$

$

Not available

15

Ariens 06300500

WSHR-LK .438X.133 HVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

16

Ariens 03507100

FUEL TANK
(Superseded to 03563700)

$

$

Not available

17

Ariens 03507200

LOWER TANK SUPPORT

$

$

Not available

18

Ariens 06415700

WSHR-FL-STL .469X1.380X.125

$

$

Not available

19

Ariens 03188100

BEARING SPACER 1.032X1.25X1.78

$26.99

$

In Stock, only 1 left!

0

20

Ariens 03002000

HOSE (SERV. ONLY)
(Superseded to 03072500)

$37.99

$

Usually ships in 4-12 days

0

21

Ariens 02910800

FUEL FILTER

$7.49

$

Usually ships in 4-12 days

0

23

Ariens 02917200

CLAMP-HOSE WIR.490/.510X.092#8
(Superseded to 06939100)

$3.99

$

In Stock, Qty 20+

0

24

Ariens 06905300

TIE DOWN
(Superseded to 07517300)

$

$

Not available

25

Ariens 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 10

0

26

Ariens 03533900

GAS CAP

$

$

Not available

27

EXHAUST MUFFLER

$

$

Not available

29

Ariens 53501600

DASH BASE WITH DECALS
(Superseded to 53507100)

$

$

Not available

30

Ariens 02911700

DASH

Note: (USE W/DASH DECAL 078547)

$

$

Not available

31

Ariens 07311200

PLY-? 3.50X1.0
(Superseded to 03550900)

$

$

Not available

32

Ariens 53502800

FRAME W/DECALS

$

$

Not available

33

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 5

0

34

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 07407300

SCR-SHT.MET10-16X.375 HWH PL B

$

$

Not available

36

Ariens 07501900

KNOB

$

$

Not available

37

Ariens 01315700

KEYS
(Superseded to 02460700)

$7.99

$

In Stock, Qty 16

0

38

Ariens 03507400

CLAMP STRAP

$

$

Not available

39

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 11

0

40

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

41

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 3 left!

0

42

Ariens 06409900

WSHR-FL-STL .312X1.62X.13

$

$

Not available

43

8 HP TECUMESH TVM 195

$

$

Not available

44

Ariens 03531000

TOP ISOLATION MOUNT
(Superseded to 53503300)

$

$

Not available

45

Ariens 05913100

BLT-HEX .31-18X2.50 PL GR2
(Superseded to 05952600)

$1.49

$

In Stock, only 4 left!

0

46

Ariens 03524200

PIPE FITTING 90 DEG. X 3/8 ELB

$

$

Not available

47

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 10

0

48

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

$2.49

$

Usually ships in 4-12 days

0
