935011 (YT 1032) - Ariens Sierra 32" Yard Tractor, 10hp Tecumseh, Gear (SN: 000101 & Above) Electrical Parts Diagram

Sierra 32" Yard Tractor, 10hp Tecumseh, Gear

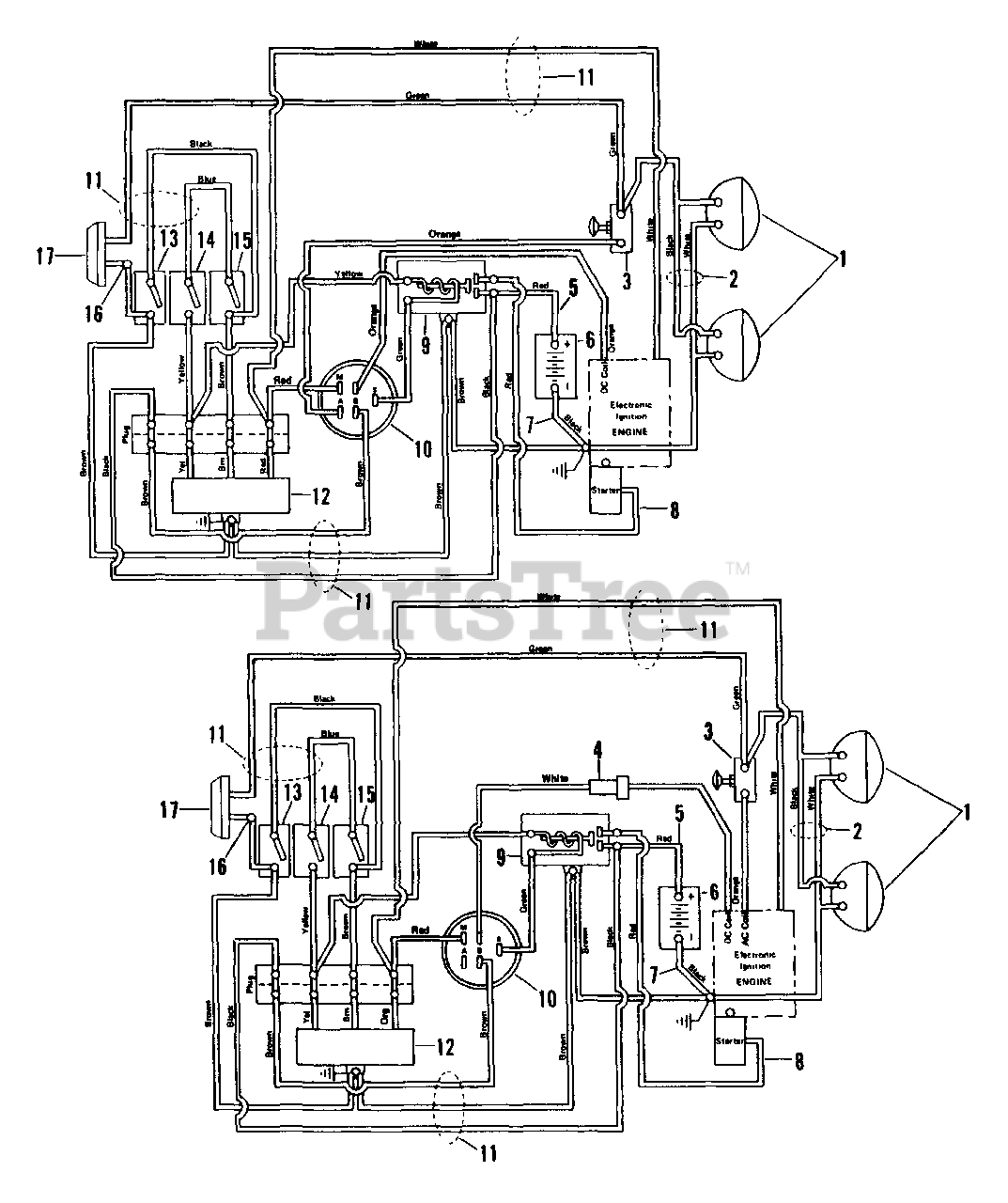

Electrical Parts Diagram

  • Title

1

Ariens 03114900

HEAD LIGHT

$20.99

$

Usually ships in 4-12 days

0

2

Ariens 03539800

WIRE HARNESS - HEADLIGHT

$

$

Not available

3

Ariens 03115100

LIGHT SWITCH
(Superseded to 51513800)

$34.99

$

Usually ships in 4-12 days

0

4

15 AMP FUSE

$

$

Not available

5

Ariens 03557600

STARTER CABLE

$

$

Not available

6

Ariens 03550500

BATTERY
(Superseded to 53123300)

$

$

Not available

7

Ariens 03537000

GROUND CABLE

$

$

Not available

8

Ariens 03557500

STARTER CABLE 16"

$

$

Not available

9

Ariens 03551000

SOLENOID

$34.99

$

In Stock, only 4 left!

0

10

Ariens 53507600

IGNITION SWITCH ASSEMBLY

$62.99

$

Usually ships in 4-12 days

0

11

Ariens 03551100

WIRE HARNESS

$

$

Not available

11

Ariens 03558800

WIRE HANRESS 10HP (BAL)

Note: (BAL)

$

$

Not available

12

Ariens 03553800

MODULE
(Superseded to 53510300)

$

$

Not available

13

Ariens 03171600

SWITCH SEAT

$

$

Not available

14

Ariens 02707800

SWITCH INTERLOCK

$17.99

$

Usually ships in 4-12 days

0

15

UNKNOWN

$

$

Not available

16

Ariens 03005000

MALE DISCONNECT ADAPTER

$

$

Not available

17

Ariens 03063500

TAIL LIGHT ASSEMBLY W/BULLET
(Superseded to 53128400)

$119.99

$

Usually ships in 4-12 days

0
