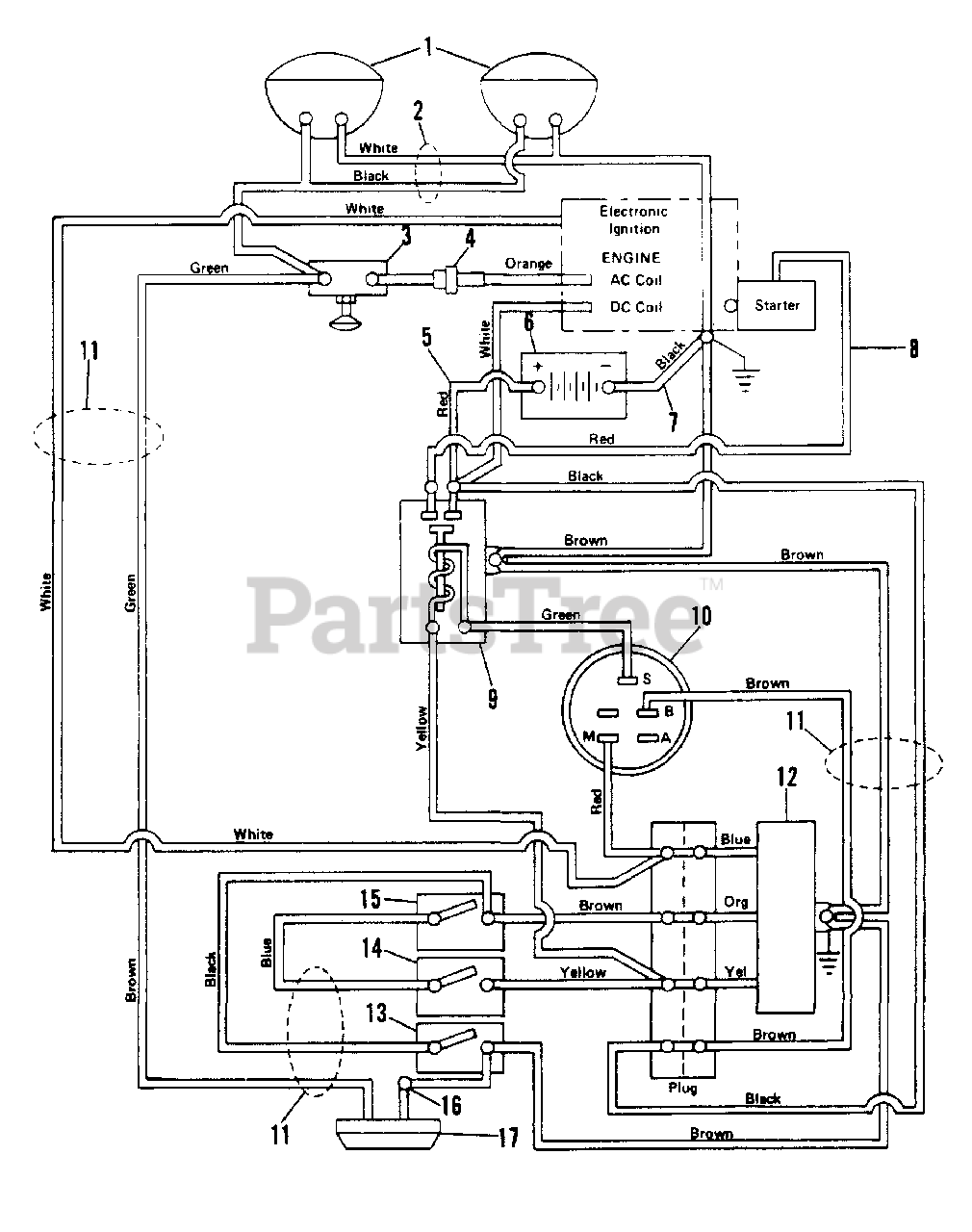

935017 (1232-G) - Gravely 32" Lawn Tractor, 12hp Briggs & Stratton, Gear Drive (SN: 000101 & Above) ELECTRICAL Parts Diagram

32" Lawn Tractor, 12hp Briggs & Stratton, Gear Drive

ELECTRICAL Parts Diagram

  • Title

1

Gravely 039069

HEAD LIGHT
(Superseded to 03114900)

$23.99

$

In Stock, only 2 left!

0

2

Gravely 044761

WIRE HARNESS - HEADLIGHT
(Superseded to 03539800)

$

$

Not available

3

Gravely 036117

LIGHT SWITCH KIT
(Superseded to 51513800)

$

$

Not available

4

FUSE, 6 AMP

$

$

Not available

5

Gravely 044762

CABLE STARTER
(Superseded to 03561900)

$

$

Not available

6

Gravely 044763

BATTERY
(Superseded to 09206000)

$

$

Not available

7

Gravely 044764

CABLE-GROUND
(Superseded to 03562000)

$

$

Not available

8

Gravely 044765

CABLE
(Superseded to 03562100)

$

$

Not available

9

Gravely 044766

SOLENOID
(Superseded to 03551000)

$45.99

$

In Stock, only 3 left!

0

10

Gravely 044767

IGNITION SWITCH ASSEMBLY
(Superseded to 53507600)

$67.99

$

Usually ships in 4-12 days

0

11

Gravely 044768

WIRE HARNESS
(Superseded to 03578100)

$

$

Not available

12

Gravely 036108

KIT, INTERLOCK MODULE
(Superseded to 53510500)

Note: (W/CONNECTOR)

$

$

Not available

13

Gravely 036121

SWITCH SEAT
(Superseded to 03171600)

$

$

Not available

14

Gravely 036107

SWITCH INTERLOCK
(Superseded to 02707800)

$

$

Not available

15

Gravely 020916

SWITCH-NEUTRAL START N.O.
(Superseded to 02913100)

$48.99

$

In Stock, only 2 left!

0

16

Gravely 036126

MALE DISCONNECT ADAPTER
(Superseded to 03005000)

$

$

Not available

17

Gravely 039488

TAIL LIGHT ASSY (2 PIECES)
(Superseded to 53128400)

$

$

Not available

NS

Gravely 033847

BOOT, INSULATOR
(Superseded to 03384700)

$

$

Not available
