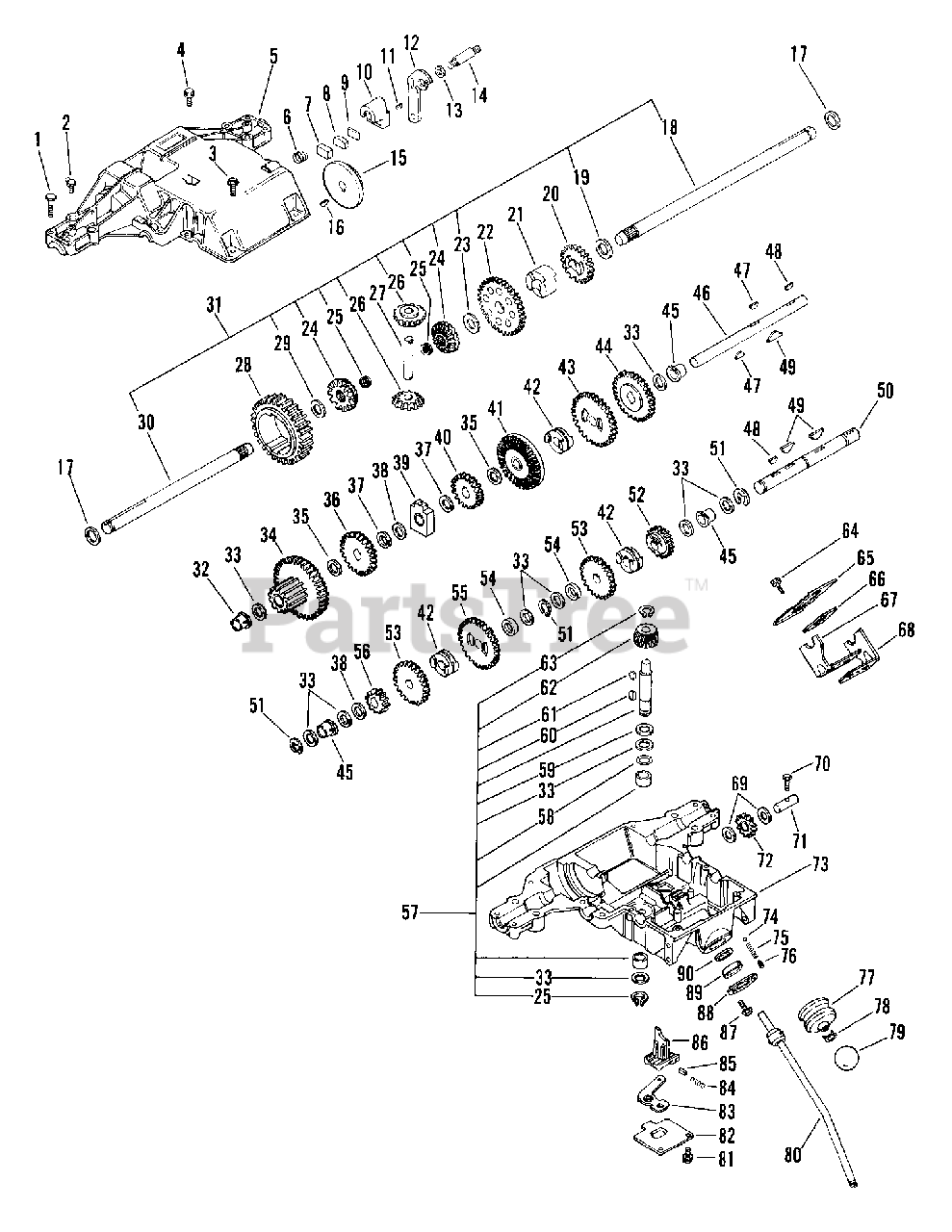

935028 (YT 1238) - Ariens Sierra 38" Yard Tractor, 12hp Briggs & Stratton, Gear (SN: 000101 & Above) Gear Transaxle Parts Diagram

Sierra 38" Yard Tractor, 12hp Briggs & Stratton, Gear

Gear Transaxle Parts Diagram

  • Title

1

Ariens 05905600

BLT-HEX .25-20X1.25 PL GR5
(Superseded to 05947400)

$1.99

$

In Stock, Qty 5

0

2

Ariens 03557100

ZERK FITTING

$

$

Not available

3

Ariens 07407000

SCR-TAP .250-20X.860 HH

$

$

Not available

4

Ariens 06105600

SCR-MCH 12-24X.62 HEXWH
(Superseded to 06120000)

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 53505300

LOWER HOUSING ASSEMBLY

$

$

Not available

6

Ariens 08318000

SG-COMP J.B. FOOTE

$

$

Not available

7

Ariens 03524900

FRICTION PAD

$35.99

$

Usually ships in 4-12 days

0

8

Ariens 03525300

BRAKE JAW FRICTION PUCK

$

$

Not available

9

Ariens 03525600

SPACER - FLAT .045 THICK

$5.99

$

Usually ships in 4-12 days

0

10

Ariens 53500400

BRAKE JAW ASSY

$

$

Not available

11

Ariens 06003500

SCR-SET 8-32 FOOTE 1606

$

$

Not available

12

Ariens 53500500

ACTUATING LEVER ASSY

$

$

Not available

13

Ariens 06417700

WSHR-FL-STL .505X.750X.006

$

$

Not available

14

Ariens 03515700

SHOULDER BOLT

$

$

Not available

15

Ariens 03515300

BRAKE DISC
(Superseded to 53502000)

$

$

Not available

16

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.49

$

In Stock, Qty 10

0

17

Ariens 05610300

SEAL J.B.FOOTE #5130

$

$

Not available

18

Ariens 03560100

AXLE, RH

$

$

Not available

19

Ariens 06415800

WSHR-FL-STL .760X1.250X.060 PL

$

$

Not available

20

Ariens 03514800

SPUR GEAR 22T

$

$

Not available

21

Ariens 03514700

GEAR LOCK

$

$

Not available

22

Ariens 03514600

SPUR GEAR 35T

$

$

Not available

23

Ariens 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

In Stock, only 2 left!

0

24

Ariens 03559500

GEAR,MITER,15T,SPLINED
(Superseded to 53507000)

$

$

Not available

25

Ariens 05708400

RG-RTNG-EXT .625X.035
(Superseded to 05711900)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 03559300

RING-RETAINING

$3.49

$

Usually ships in 4-12 days

0

26

Ariens 03559400

GEAR,MITER,15T
(Superseded to 53507000)

$

$

Not available

27

Ariens 5354074

CROSS SHAFT ASSEMBLY

$

$

Not available

27

Ariens 03579100

SHAFT, CROSS
(Superseded to 53507400)

$

$

Not available

28

Ariens 53507300

GEAR & SHAFT ASSEMBLY

$

$

Not available

28

Ariens 03579000

GEAR, SPUR, 32T.
(Superseded to 53507300)

$

$

Not available

29

Ariens 53506500

SHIM PACKAGE

$

$

Not available

30

Ariens 03560200

AXLE, LH
(Superseded to 53507000)

$

$

Not available

31

Ariens 53507000

DIFFERENTIAL ASSEMBLY

$

$

Not available

32

Ariens 03513000

FLANGE BEARING

$

$

Not available

33

Ariens 53506400

SHIM PACKAGE

$

$

Not available

34

Ariens 53504900

GEAR ASSEMBLY

$

$

Not available

35

Ariens 03511500

WASHER
(Superseded to 53506400)

$

$

Not available

36

Ariens 03513400

SPUR GEAR 25T

$

$

Not available

37

Ariens 03525400

WASHER

$

$

Not available

38

Ariens 03512200

SPACER .630X1.000X.110

$

$

Not available

39

Ariens 53500200

SHAFT SUPPORT ASSY

$

$

Not available

40

Ariens 03513600

SPUR GEAR 20T

$

$

Not available

41

Ariens 53500300

BEVEL GEAR ASSY

$

$

Not available

42

Ariens 03512500

CLUTCH COLLAR

$

$

Not available

43

Ariens 03513800

SPUR GEAR 33T

$

$

Not available

44

Ariens 03513900

SPUR GEAR 30T

$

$

Not available

45

Ariens 03512100

FLANGE BEARING

$

$

Not available

46

Ariens 03514000

DRIVE SHAFT

$

$

Not available

47

Ariens 06603900

KEY-WDRF FOOTE #3311

$

$

Not available

48

Ariens 06600600

KEY-WDRF .125X.500X.203 SAE 3

$1.49

$

Usually ships in 4-12 days

0

49

Ariens 06603800

KEY-FTHR FOOTE #3068
(Superseded to 06604100)

$

$

Not available

50

Ariens 03512900

INTERMEDIATE SHAFT

$

$

Not available

51

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, only 4 left!

0

52

Ariens 03512800

SPUR GEAR 20T

$

$

Not available

53

Ariens 03512400

SPUR GEAR 25T

$

$

Not available

54

Ariens 03512700

SPACER .633X1.00X.260

$

$

Not available

55

Ariens 03512600

SPUR GEAR 30T

$

$

Not available

56

Ariens 03512300

SPUR GEAR 13T

$

$

Not available

57

Ariens 53500800

INPUT SHAFT ASSY KIT

$

$

Not available

58

Ariens 05610400

O-RING .612X.805X.102

$

$

Not available

59

Ariens 03550700

WASHER

$

$

Not available

60

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 7

0

61

Ariens 06600600

KEY-WDRF .125X.500X.203 SAE 3

$1.49

$

Usually ships in 4-12 days

0

62

Ariens 03513100

PINION

$

$

Not available

63

Ariens 05708500

RG-RTNG-EXT .500X.035

$

$

Not available

64

Ariens 05901500

BLT-HEX .25-28X.75 PL GR5
(Superseded to 05952300)

$1.99

$

Usually ships in 4-12 days

0

65

Ariens 03513700

LOCK-OUT PLATE

$

$

Not available

66

Ariens 03515400

FORK PLATE SUPPORT

$

$

Not available

67

Ariens 03515900

SHIFTER FORK

$

$

Not available

68

Ariens 03515600

SHIFTER FORK

$

$

Not available

69

Ariens 06417800

WSHR-FL-STL .505X1.000X.020

$

$

Not available

70

Ariens 06103500

SCR-MCH 10-24X1.00 HEX PL
(Superseded to 05960800)

$3.99

$

Usually ships in 4-12 days

0

71

Ariens 03515800

IDLER SHAFT

$

$

Not available

72

Ariens 53500600

IDLER GEAR ASSY

$

$

Not available

73

Ariens 03516000

UPPER HOUSING

$

$

Not available

74

Ariens 03513500

DETENT BALL

$3.49

$

Usually ships in 4-12 days

0

75

Ariens 08318200

SG-COMP ??X??X?? FOOTE

$

$

Not available

76

Ariens 06000800

SCR-SET .25-20X.38 SKHCUP OH

$

$

Not available

77

Ariens 03559200

BOOT-SWITCH

$14.99

$

Usually ships in 4-12 days

0

78

Ariens 02917200

CLAMP-HOSE WIR.490/.510X.092#8
(Superseded to 06939100)

$3.99

$

In Stock, Qty 20+

0

79

Ariens 07500100

SHIFT BALL
(Superseded to 07505200)

$20.99

$

Usually ships in 4-12 days

0

80

Ariens 53500700

SHIFT LEVER ASSY

$

$

Not available

81

Ariens 06104300

SCR-MCH 8-32X.50 SLTR PL

$

$

Not available

82

Ariens 03516300

HI-LO COVER PLATE

$

$

Not available

83

Ariens 03516100

HI-LO SHIFT LEVER

$

$

Not available

84

Ariens 08318100

SG-COMP .035X.186X.702

$

$

Not available

85

Ariens 03516500

DETENT PIN

$

$

Not available

86

Ariens 03525000

HI-LO SHIFTER FORK
(Superseded to 53502400)

$

$

Not available

87

Ariens 07406900

SCR-TAP 10-24X.484 HWH TR

$2.49

$

Usually ships in 4-12 days

0

88

Ariens 03516400

NYLON COVER

$20.99

$

Usually ships in 4-12 days

0

89

Ariens 03515500

NYLON INSERT

$

$

Not available

90

Ariens 03515000

WAVE WASHER .760X1.062X.105FH

$

$

Not available
