93583 (1002-0) - Generac 18" Deluxe Wheel Kit for Portable Generator Deluxe Wheel Kit Parts Diagram

18" Deluxe Wheel Kit for Portable Generator

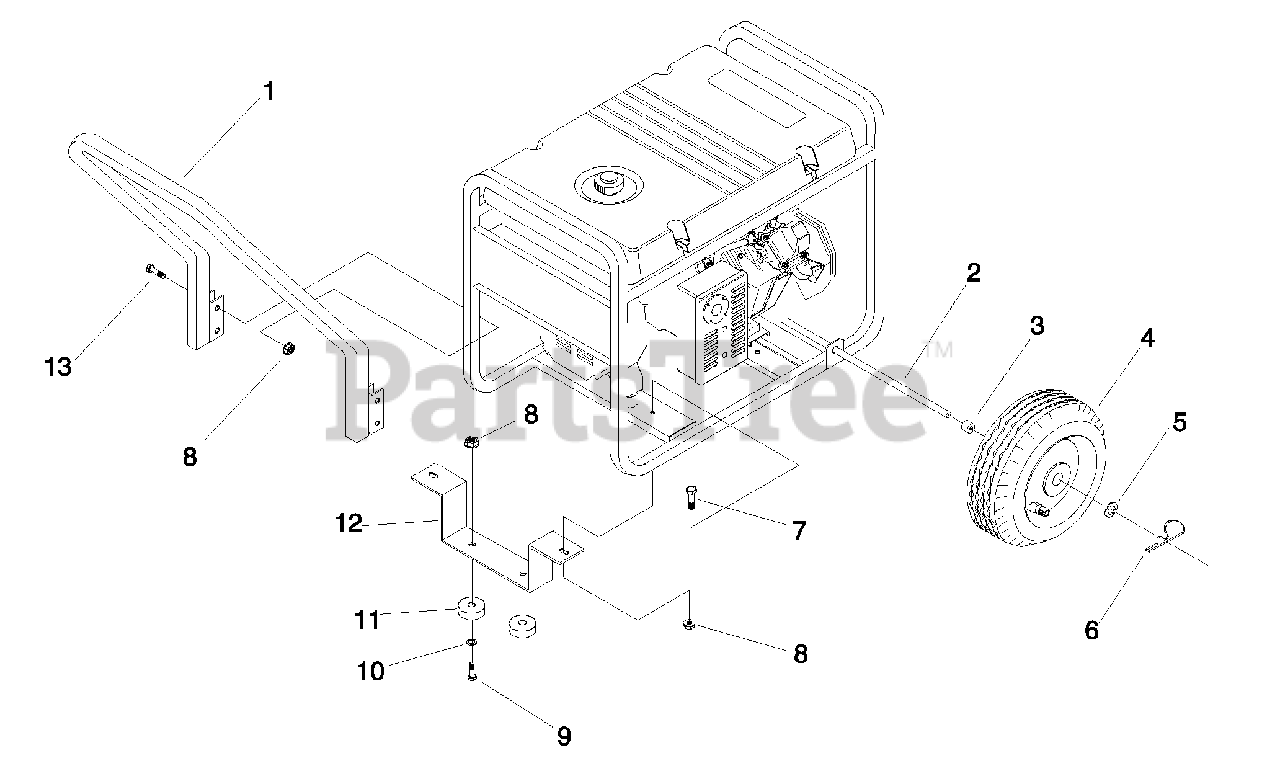

Deluxe Wheel Kit Parts Diagram

  • Title

1

Briggs & Stratton 93393A

HANDLE, Wheel Kit

$

$

Currently unavailable

2

Briggs & Stratton 93693A

AXLE, 5/8 Zinc
(Superseded to 191267AGS)

$89.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 89635

SPACER, Wheel

$

$

Currently unavailable

4

Briggs & Stratton 89742

WHEEL Assy 12" Dia.

$

$

Not available

5

Briggs & Stratton 22247

WASHER, Flat M8
(Superseded to 5022247)

$45.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 87005

PIN, Retaining
(Superseded to 87005GS)

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 39253

CAP SCREW, M8-1.25 x 20 mm
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 52858

NUT, M8-1.25 Hex Lock
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 42909

CAP SCREW, M8-1.25 x 30 mm
(Superseded to 42909GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 22145

WASHER, Flat

$

$

Not available

11

Briggs & Stratton 27007

VIB Mount, Donut type
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

12

Briggs & Stratton 93696

BRACKET, Unit Support

$

$

Currently unavailable

13

Briggs & Stratton 39287

CAP SCREW, M8-1.25 x 45 mm
(Superseded to 39287GS)

$3.99

$

Usually ships in 2-12 days

0
