936003 (YT 12 H) - Ariens 40" Yard Tractor, 12.5hp Tecumseh, Hydro (SN: 000101 & Above) ELECTRICAL YT12H Parts Diagram

40" Yard Tractor, 12.5hp Tecumseh, Hydro

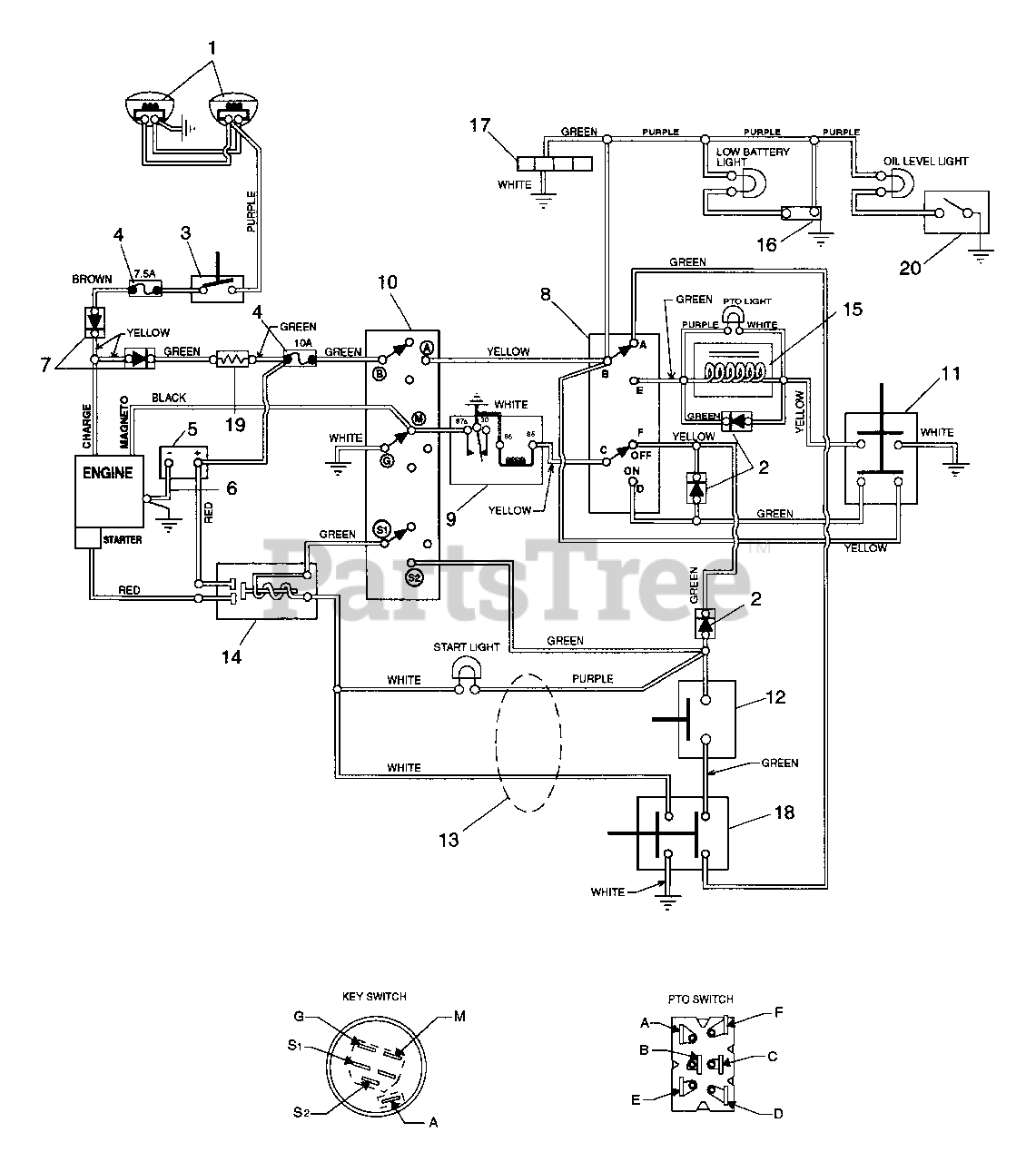

ELECTRICAL YT12H Parts Diagram

  • Title

1

Ariens 03602000

HEADLIGHT- L.H.

$

$

Not available

1

Ariens 03602100

HEADLIGHT- R.H.

$

$

Not available

2

Ariens 03081700

MOLDED DIODE PLUG 1 AMP

$26.99

$

Usually ships in 4-12 days

0

3

Ariens 03603700

LIGHT SWITCH

$

$

Not available

4

7.5 AMP FUSE

$

$

Not available

4

10 AMP FUSE

$

$

Not available

5

Ariens 03603900

BATTERY
(Superseded to 03621100)

$

$

Not available

6

Ariens 03111100

GROUND CABLE .31X22.00X.31
(Superseded to 03111101)

$20.99

$

In Stock, only 2 left!

0

7

Ariens 02745200

DIODE & HOUSING

$40.99

$

Usually ships in 4-12 days

0

8

Ariens 03602400

SWITCH ASSEMBLY- PTO

$

$

Not available

9

Ariens 03042800

RELAY
(Superseded to 00432101)

$20.99

$

In Stock, Qty 20+

0

10

Ariens 03602300

KEY SWITCH

$26.99

$

In Stock, only 2 left!

0

11

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$15.99

$

Usually ships in 4-12 days

0

12

Ariens 02913100

SWITCH-NEUTRAL START N.O.

$45.99

$

In Stock, only 1 left!

0

13

Ariens 03614700

WIRE HARNESS- YT12H
(Superseded to 03617900)

$

$

Not available

13

Ariens 03617900

WIRE HARNESS- YT12H

$

$

Not available

14

Ariens 03551000

SOLENOID

$34.99

$

In Stock, Qty 7

0

15

Ariens 03601800

ELECTRIC CLUTCH/BRAKE(1.8AMP)

$258.99

$

Usually ships in 4-12 days

0

16

Ariens 03614500

VOLTAGE SENSOR
(Superseded to 03653300)

$62.99

$

Usually ships in 4-12 days

0

17

Ariens 03609000

HOUR METER W/ LEADS

Note: (OPTIONAL)

$

$

Not available

18

Ariens 03612700

SWITCH- DOUBLE POLE N.C./N.C.
(Superseded to 20827200)

$17.99

$

Usually ships in 4-12 days

0

19

Ariens 03619300

RESISTOR- 1 OHM 25 WATT

$

$

Not available

19

Ariens 53600600

REGULATOR KIT

Note: (OPTIONAL)

$

$

Not available

20

Ariens 03614500

VOLTAGE SENSOR
(Superseded to 03653300)

$62.99

$

Usually ships in 4-12 days

0
