936004 (YT 15 H) - Ariens 40" Yard Tractor, 15hp Tecumseh, Hydro (SN: 000101 & Above) HANGER ARM Parts Diagram

40" Yard Tractor, 15hp Tecumseh, Hydro

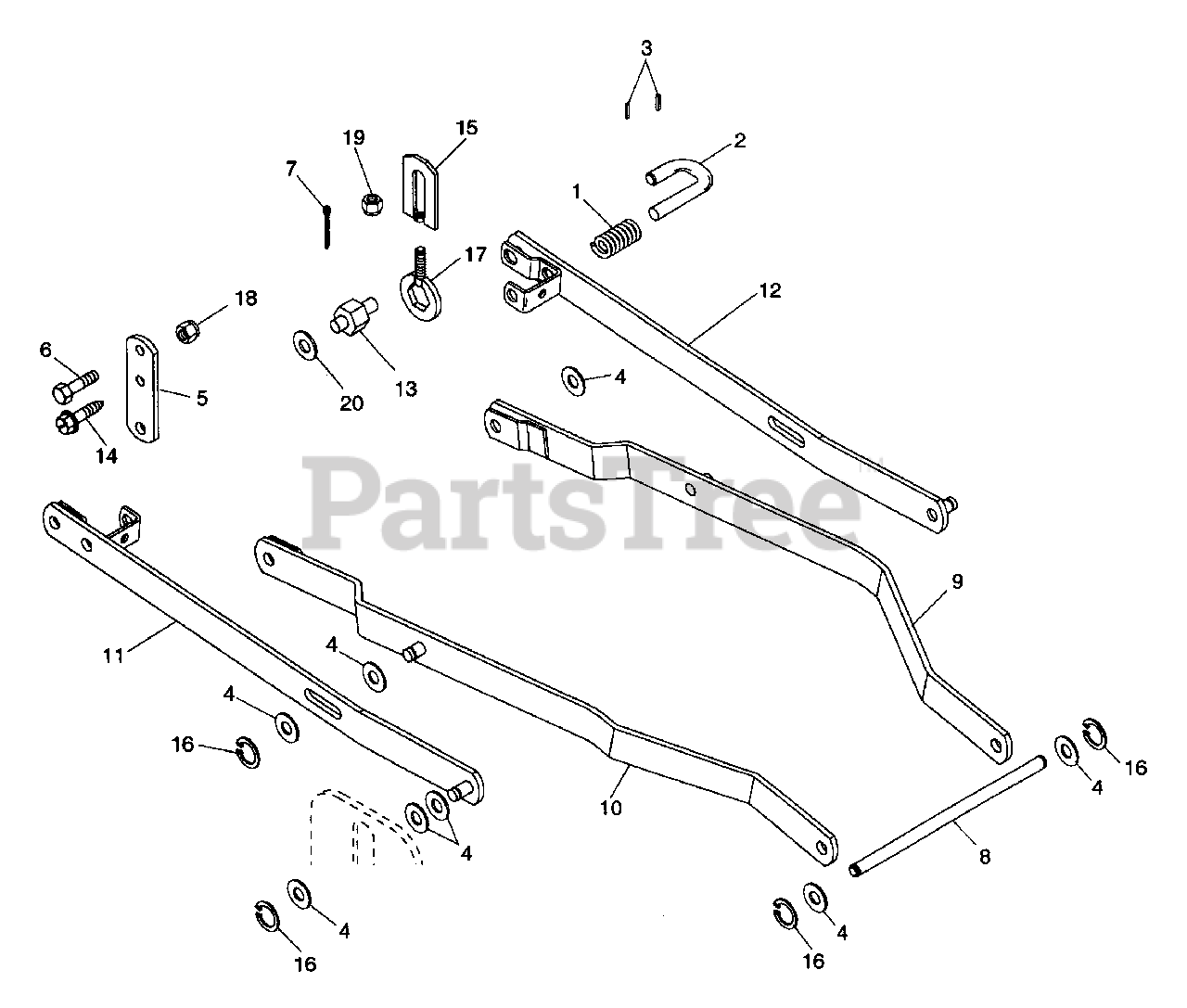

HANGER ARM Parts Diagram

  • Title

1

Ariens 08325900

SPRG, COMP .058X.65X2.13 WLD15

$9.49

$

Usually ships in 4-12 days

0

2

Ariens 03584700

LATCH PIN

$

$

Not available

3

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 9

0

4

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 03588700

HANGER BRACKET
(Superseded to 03588751)

$30.99

$

Usually ships in 4-12 days

0

6

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, only 2 left!

0

7

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0

8

Ariens 03521900

PIN
(Superseded to 53602400)

$54.99

$

Usually ships in 4-12 days

0

9

Ariens 03570900

LH LIFT ARM

$

$

Not available

10

Ariens 03571000

RH LIFT ARM

$

$

Not available

11

Ariens 03571100

REAR HANGER RH

$

$

Not available

12

Ariens 03571200

REAR HANGER LH

$

$

Not available

13

Ariens 03607500

HANGER PIVOT

$

$

Not available

14

Ariens 07403000

SCR-TAP .375-16X1.0 HWH PL TR
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

15

Ariens 03486400

LINK, ADJUSTMENT

$43.99

$

In Stock, only 2 left!

0

16

Ariens 05701500

RG-RTNG-EXT .500X.035
(Superseded to 05717100)

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 03486300

HEX HANGER

$

$

Not available

18

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

$0.99

$

In Stock, Qty 9

0

20

Ariens 06420100

WSHR-FL-STL .531X1.250X.100 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0
