936005 (YT 15 G) - Ariens 40" Yard Tractor, 15hp Tecumseh, Gear (SN: 000101 & Above) ELECTRICAL YT15G Parts Diagram

40" Yard Tractor, 15hp Tecumseh, Gear

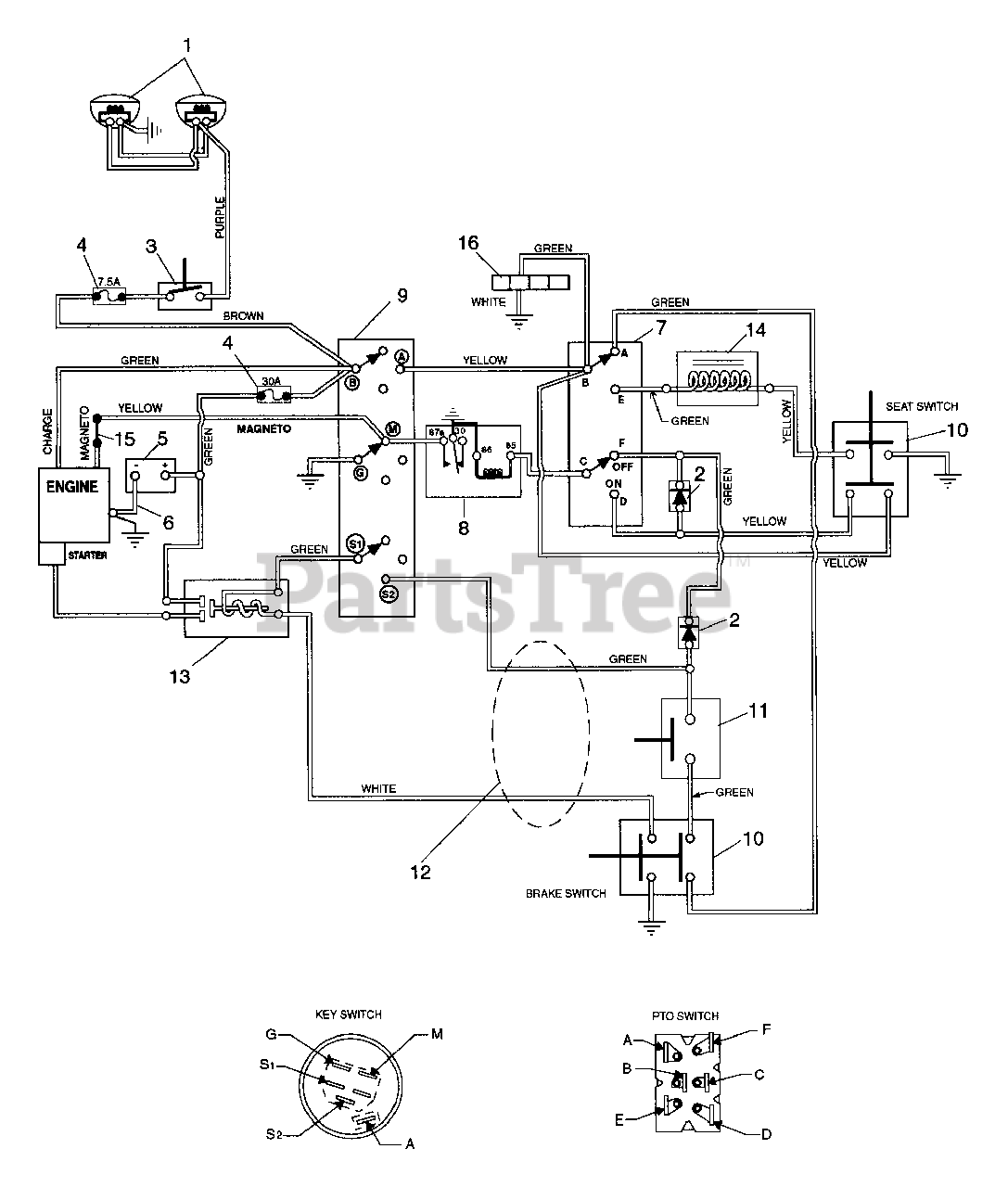

ELECTRICAL YT15G Parts Diagram

  • Title

1

Ariens 03602000

HEADLIGHT- L.H.

$

$

Not available

1

Ariens 03602100

HEADLIGHT- R.H.

$

$

Not available

2

Ariens 02745200

DIODE & HOUSING

$

$

Not available

3

Ariens 03603700

LIGHT SWITCH

$

$

Not available

4

7.5 AMP FUSE

$

$

Not available

4

30 AMP FUSE

$

$

Not available

5

Ariens 03603900

BATTERY
(Superseded to 03621100)

$

$

Not available

6

Ariens 03111100

GROUND CABLE .31X22.00X.31
(Superseded to 03111101)

$23.99

$

In Stock, only 1 left!

0

7

Ariens 03602400

SWITCH ASSEMBLY- PTO

$

$

Not available

8

Ariens 03042800

RELAY
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

9

Ariens 03602300

KEY SWITCH

$26.99

$

In Stock, Qty 20+

0

10

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, Qty 20+

0

11

Ariens 02913100

SWITCH-NEUTRAL START N.O.

$46.99

$

In Stock, Qty 6

0

12

Ariens 03617400

WIRE HARNESS- YT15G

$

$

Not available

13

Ariens 03551000

SOLENOID

$43.99

$

In Stock, Qty 9

0

14

Ariens 03601800

ELECTRIC CLUTCH/BRAKE(1.8AMP)

$268.99

$

In Stock, only 1 left!

0

15

Ariens 03615100

WIRE HARNESS ADAPTER

$

$

Not available

16

Ariens 03609000

HOUR METER W/ LEADS

Note: (OPTIONAL)

$

$

Not available
