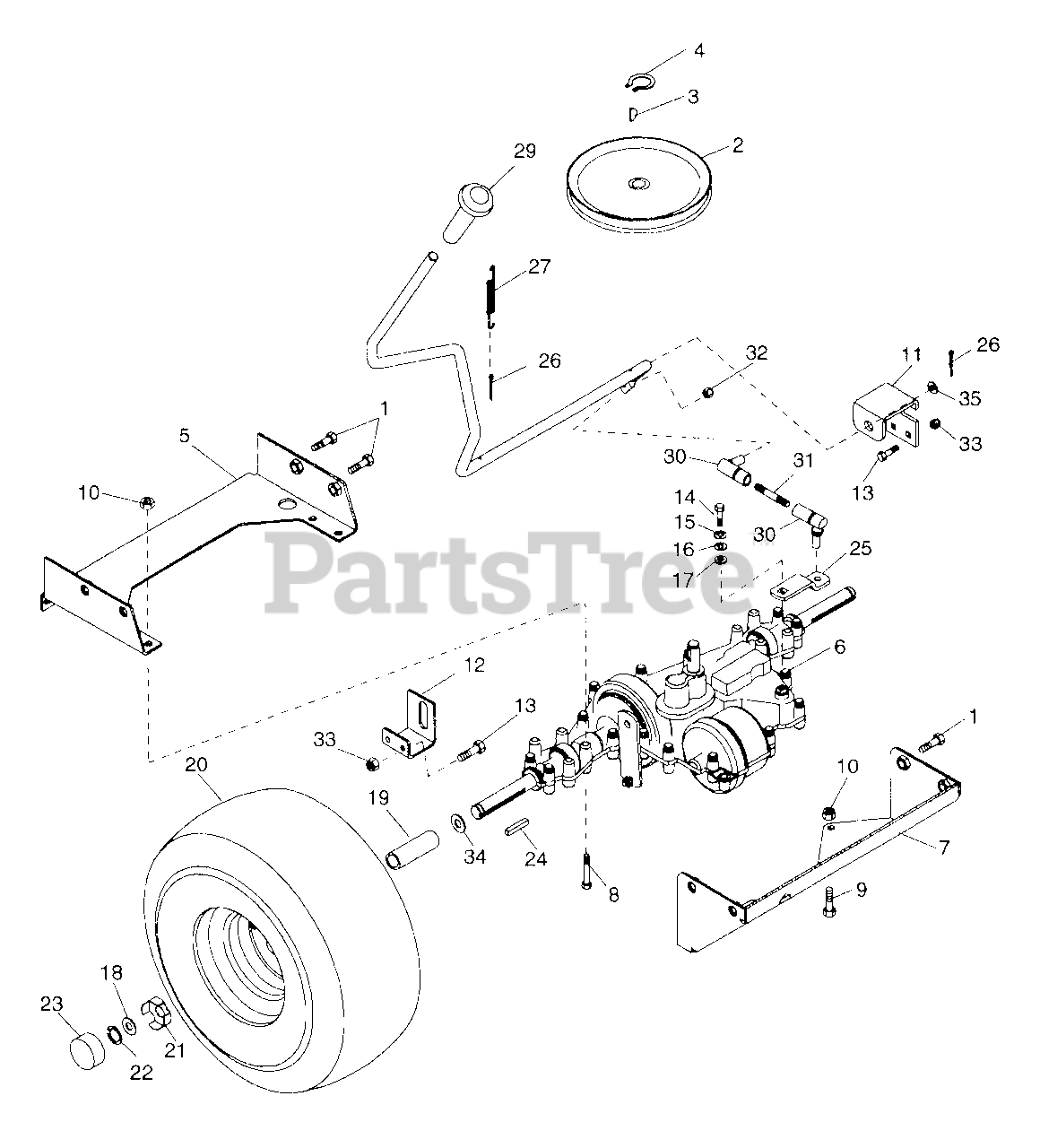

936005 (YT 15 G) - Ariens 40" Yard Tractor, 15hp Tecumseh, Gear (SN: 000101 & Above) GEAR DRIVE Parts Diagram

40" Yard Tractor, 15hp Tecumseh, Gear

GEAR DRIVE Parts Diagram

  • Title

1

Ariens 07402200

SCR-TAP .375-16X.75 HWH PL TR
(Superseded to 07415400)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 07309100

PLY-TRANS 7.00X.626

$

$

Not available

3

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 7

0

4

Ariens 05701900

RG-RTNG-EXT .625X.035
(Superseded to 05711900)

$0.99

$

In Stock, Qty 18

0

5

Ariens 03601500

REAR TRANSAXLE MOUNT

$

$

Not available

6

Ariens 03604000

TRANSAXLE-GEAR 940-011 5-SPD
(Superseded to 03629000)

Note: (Used Only On Model(s): 936002,005).

$

$

Not available

7

Ariens 03601400

TORQUE MOUNT

Note: (Used Only On Model(s): 936002,005).

$

$

Not available

8

Ariens 05916300

BLT-HEX .31-18X2.50 PL GR5
(Superseded to 05952600)

$1.49

$

In Stock, only 4 left!

0

9

Ariens 05917000

BLT-HEX .31-18X2.00 PL GR5
(Superseded to 05957200)

$1.49

$

In Stock, Qty 12

0

10

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 03603300

SHIFT PIVOT BRACKET

Note: (Used Only On Model(s): 936002,005).

$

$

Not available

12

Ariens 03603400

SHIFT GUIDE BRACKET

Note: (Used Only On Model(s): 936002,005).

$11.99

$

Usually ships in 4-12 days

0

13

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$0.99

$

In Stock, Qty 12

0

14

Ariens 05901500

BLT-HEX .25-28X.75 PL GR5
(Superseded to 05952300)

$1.99

$

Usually ships in 4-12 days

0

15

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

16

Ariens 06421400

WSHR-FL-STL .328X1.0X.094 PL
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

17

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06404800

WSHR-FL-STL .755X1.375X.062 PL
(Superseded to 06441500)

$3.99

$

In Stock, Qty 13

0

19

Ariens 05510400

BSHG-SLV .750X1.125X1.062

$

$

Not available

20

Ariens 07126900

T/WHL ASSY 20X8.00-8

$

$

Not available

Ariens 07133100

RIM
(Superseded to 07153600)

$

$

Not available

Ariens 07133200

TIRE 20X10-8 2P TS TL

$102.99

$

Usually ships in 4-12 days

0

21

Ariens 03516900

SPINDLE CUP

$19.99

$

In Stock, only 1 left!

0

22

Ariens 05707400

RG-RTNG-EXT .750X.050

$2.49

$

In Stock, only 3 left!

0

23

Ariens 00337700

HUB CAP

$2.99

$

In Stock, only 2 left!

0

24

Ariens 06601900

KEY-SQ .188X2.0X.188 SAE 8630

$

$

Not available

25

Ariens 03603500

SHIFT ARM

Note: (Used Only On Model(s): 936002,005).

$

$

Not available

26

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0

27

Ariens 08314100

SG-TENS .063X.44X1.56

Note: (Used Only On Model(s): 936002,005).

$5.99

$

In Stock, Qty 12

0

28

Ariens 03607700

SHIFT LEVER

Note: (Used Only On Model(s): 936002,005).

$

$

Not available

29

Ariens 07514500

KNOB

$23.99

$

Usually ships in 4-12 days

0

30

Ariens 00306000

SNAP IN BALL JOINT

Note: (Used Only On Model(s): 936002,005).

$

$

Not available

31

Ariens 03605200

SHIFT LINK

$

$

Not available

32

Ariens 06504300

NUT-LK-CTR .312-24 PL
(Superseded to 06537000)

$1.49

$

In Stock, only 3 left!

0

33

Ariens 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$4.99

$

In Stock, only 2 left!

0

34

Ariens 06404100

WSHR-FL-STL .754X1.000X.032
(Superseded to 06444100)

$2.99

$

In Stock, Qty 17

0

35

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

$2.49

$

In Stock, Qty 16
