936008 (LT 14 G) - Ariens 40" Yard Tractor, 14hp Briggs & Stratton, Gear (SN: 000101 & Above) Gear Case (Model 836004) Parts Diagram

40" Yard Tractor, 14hp Briggs & Stratton, Gear

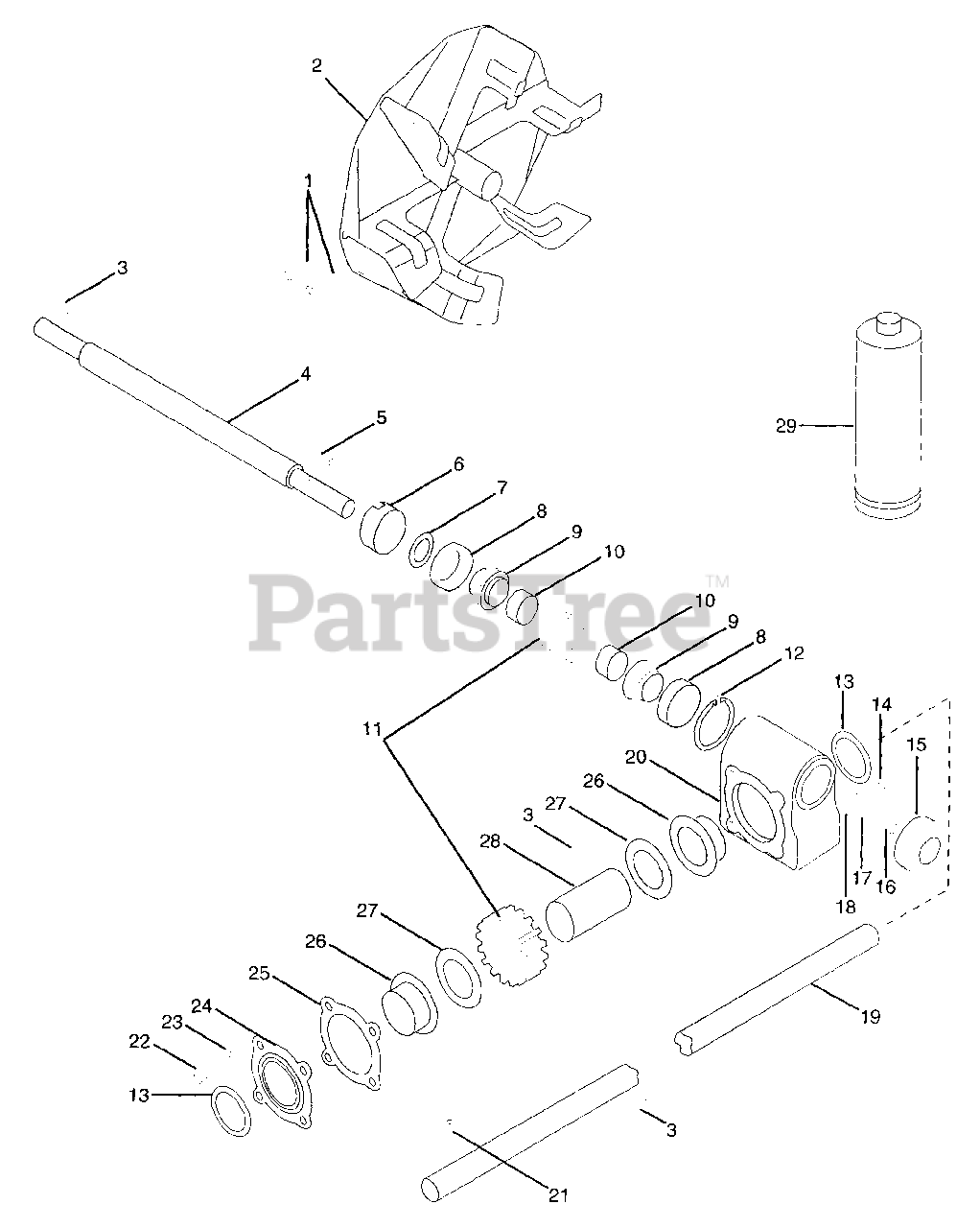

Gear Case (Model 836004) Parts Diagram

  • Title

1

Ariens 05801500

PIN-ROLL .313X1.75

$2.49

$

In Stock, Qty 8

0

2

Ariens 02437600

FAN - 14"
(Superseded to 02437651)

$281.99

$

Usually ships in 4-12 days

0

3

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

$3.99

$

In Stock, only 2 left!

0

4

Ariens 03519400

WORM SHAFT

$218.99

$

In Stock, only 1 left!

0

5

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

6

Ariens 02401500

ADJUSTMENT PLUG - 1" SHAFT

$92.99

$

Usually ships in 4-12 days

0

7

Ariens 05606100

SEAL 1.000X1.312X.150

$11.99

$

In Stock, Qty 7

0

8

Ariens 05404400

BRG-CUP 1.781X.475

$9.49

$

In Stock, Qty 20+

0

9

Ariens 05404500

BRG-CONE .750X.61

$22.99

$

In Stock, Qty 20+

0

10

Ariens 00200500

BSHG, SPCR .755X1.12X.50 PM

$7.49

$

In Stock, only 2 left!

0

11

Ariens 52400900

WORM & GEAR SERVICE ASSEMBLY

$176.99

$

Usually ships in 4-12 days

0

12

Ariens 05707500

RG-RTNG-INT 1.781X.062

$9.49

$

In Stock, only 1 left!

0

13

Ariens 05607000

SEAL 1.625X2.125X.250

$9.99

$

In Stock, only 3 left!

0

14

Ariens 00113800

PIPE PLUG

$5.99

$

Usually ships in 4-12 days

0

15

Ariens 00403700

DUST CAP

$18.99

$

In Stock, only 1 left!

0

16

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 16

0

17

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

18

Ariens 06408200

WSHR-FL-STL .328X1.0X.094
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

19

Ariens 03519500

SHAFT, 36" RAKE - 1.00 DIA.

$

$

Not available

20

Ariens 02400200

GEAR CASE - CAST IRON

$355.99

$

Usually ships in 4-12 days

0

21

Ariens 05803000

PIN-ROLL .188X1.50

$0.99

$

In Stock, Qty 20+

0

22

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$0.99

$

In Stock, Qty 12

0

23

Ariens 06301700

WSHR-LK-EXT. 250 ID

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 02401300

GEAR CASE COVER

$136.99

$

Usually ships in 4-12 days

0

25

Ariens 00200800

GASKET

$3.99

$

In Stock, only 3 left!

0

26

Ariens 05505900

BSHG-FLG .683X1.87X1.68X2.250

$14.99

$

In Stock, only 4 left!

0

27

Ariens 06408700

WSHR-FL-STL 1.625X2.500X.012

$11.99

$

In Stock, only 4 left!

0

28

Ariens 02406400

GEAR CASE SHAFT

$180.99

$

Usually ships in 4-12 days

0

29

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

$17.99

$

In Stock, Qty 13

0
