936010 (YT 13 H) - Ariens 40" Yard Tractor, 13hp Tecumseh, Hydro (SN: 000101 - 001399) Engine & Belt Drive Parts Diagram

40" Yard Tractor, 13hp Tecumseh, Hydro

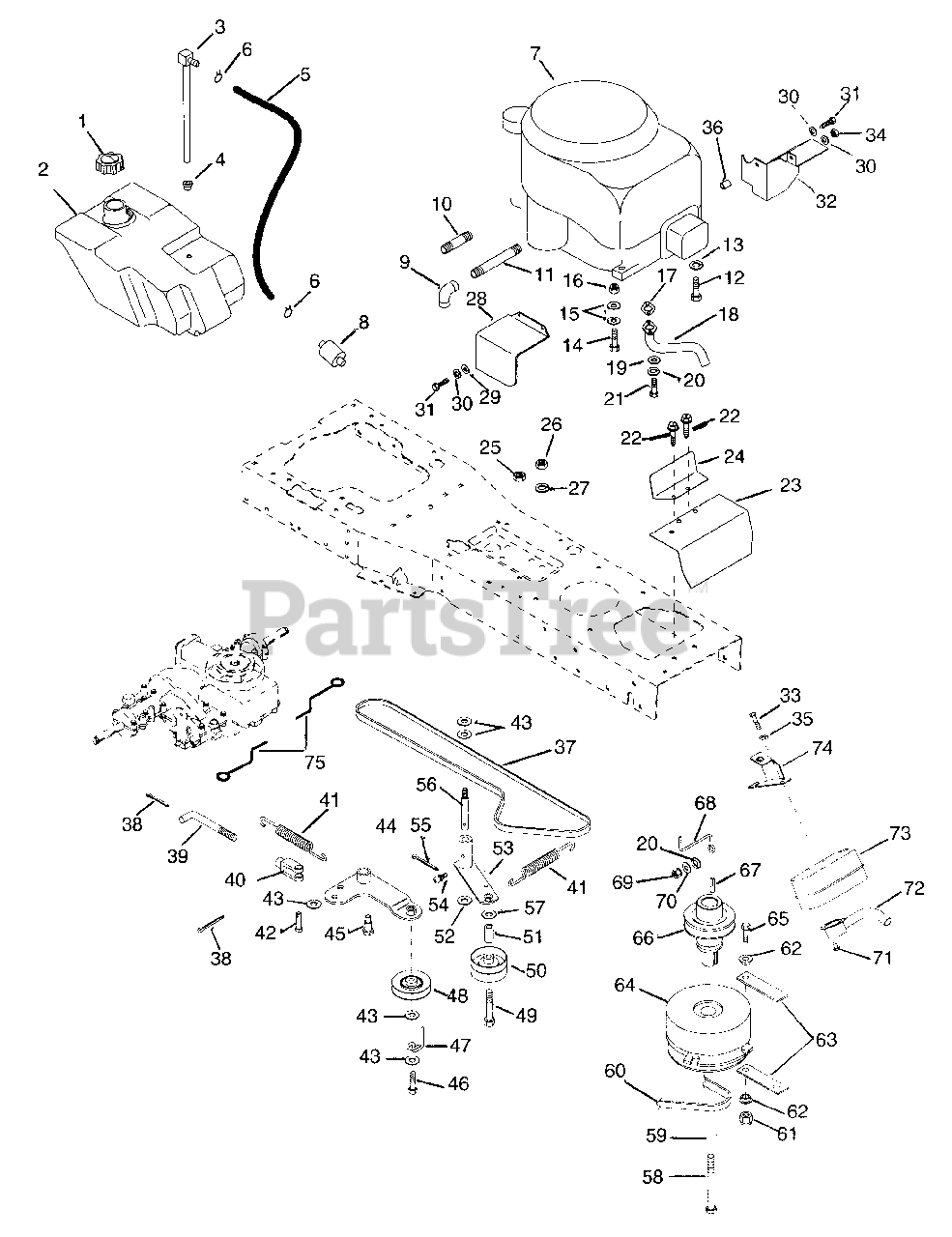

Engine & Belt Drive Parts Diagram

  • Title

1

Ariens 03601900

FUEL CAP
(Superseded to 01538400)

Note: (008,009,010,011,012)

$17.99

$

In Stock, Qty 17

0

2

Ariens 03627500

FUEL TANK

Note: (008,009,010,011,012)

$

$

Not available

3

Ariens 03606500

TANK FITTING

Note: (008,009,010,011,012)

$

$

Not available

4

Ariens 07511400

BSHG-FLG .375 X 1.062 X .625 R

Note: (008,009,010,011,012)

$4.99

$

In Stock, Qty 20+

0

5

Ariens 03609600

HOSE- FUEL LINE 34.00"

Note: (008,009,010,011,012)

$

$

Not available

6

Ariens 02917200

CLAMP-HOSE WIR.490/.510X.092#8
(Superseded to 06939100)

Note: (008,009,010,011,012)

$4.99

$

In Stock, Qty 20+

0

7

Ariens 08236000

ENGINE- 12.0 OHV TEC

Note: (006) OHV12-202719B

$

$

Not available

7

Ariens 08236800

ENGINE- 14.0 OHV B&S I/C QUIET

Note: (008) 287707-0230

$

$

Not available

7

Ariens 08236600

ENGINE- 13.0 OHV TEC

Note: (009,010) OHV13-203201A

$

$

Not available

7

Ariens 08233800

ENGINE 15HP TEC OHV15-

Note: (011,012)

$

$

Not available

8

Ariens 02910800

FUEL FILTER

Note: (008,009,010,011,012)

$7.99

$

Usually ships in 4-12 days

0

9

Ariens 07023500

ELBOW .375-18 NPTF

$

$

Not available

10

Ariens 02749600

NIPPLE

Note: (006,008,009,010)

$10.99

$

Usually ships in 4-12 days

0

11

Ariens 03475800

NIPPLE
(Superseded to 07000830)

Note: (011,012)

$20.99

$

Usually ships in 4-12 days

0

12

Ariens 07408800

SCR-TAP .375-16X1.25 HWH PL TR
(Superseded to 07414700)

Note: (011,012)

$3.99

$

In Stock, Qty 15

0

13

Ariens 06303000

WSHR-LK-EXT .375X.050

Note: (010,012)

$

$

Not available

14

Ariens 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

Note: (006,008,009,010)

$2.49

$

In Stock, Qty 9

0

14

Ariens 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

Note: (011,012)

$2.49

$

In Stock, Qty 9

0

15

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

Note: (008,009,010)

$4.99

$

Usually ships in 4-12 days

0

16

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

Note: (006,008,009,010)

$2.49

$

In Stock, Qty 20+

0

17

Ariens 03615000

GASKET- 12.5/13 TEC (#35-414)

Note: (009,010)

$6.99

$

Usually ships in 4-12 days

0

17

Ariens 03616200

GASKET:15-16.5HP TEC (#35-438)

Note: (011,012)

$11.99

$

Usually ships in 4-12 days

0

18

Ariens 03614800

EXHAUST TUBE WELDT- 12.5/13HP

Note: (009,010)

$

$

Not available

18

Ariens 03616500

EXHAUST TUBE WELDT- 15/16.5HP

Note: (011,012)

$

$

Not available

19

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.99

$

Usually ships in 4-12 days

0

20

Ariens 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

Note: (009,010,011,012)

$1.99

$

In Stock, Qty 20+

0

21

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

Note: (009,010,011,012)

$2.49

$

In Stock, Qty 20+

0

22

Ariens 07401700

SCR-TAP .312-18X.75 HWH PL TR
(Superseded to 07414400)

Note: (009,010,011,012)

$2.49

$

In Stock, Qty 12

0

23

Ariens 03616600

HEAT SHIELD
(Superseded to 03645600)

Note: (009,010,011,012)

$

$

Not available

24

Ariens 03617200

SHIELD

Note: (009,010)

$

$

Not available

25

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.99

$

In Stock, Qty 20+

0

26

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.99

$

In Stock, Qty 20+

0

27

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$1.99

$

In Stock, Qty 20+

0

28

Ariens 03634100

HEAT SHIELD- 14HP B&S
(Superseded to 03646900)

Note: (008)

$

$

Not available

29

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

Note: (008)

$1.99

$

In Stock, Qty 20+

0

30

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

Note: (006,008)

$1.49

$

In Stock, Qty 7

0

31

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

Note: (008)

$1.99

$

In Stock, Qty 20+

0

31

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

Note: (006)

$1.99

$

In Stock, Qty 20+

0

32

Ariens 03627200

HEAT SHIELD

Note: (006)

$

$

Not available

33

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

Note: (009,010,011,012)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 06500400

NUT-HEX .250-28 YWZC

Note: (006)

$2.99

$

Usually ships in 4-12 days

0

35

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

Note: (009,010,011,012)

$1.49

$

In Stock, Qty 7

0

36

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

Note: (006)

$

$

Not available

37

Ariens 07224800

V-BELT, HA-WRAPPED

Note: (936008 only)

$54.99

$

Usually ships in 4-12 days

0

37

Ariens 07216100

V-BELT, 4L-RAW EDGE

Note: (010,012)

$64.99

$

In Stock, only 3 left!

0

38

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 03621700

LINK

$

$

Not available

40

Ariens 07014700

YOKE, .312-24 X 2.25

$15.99

$

Usually ships in 4-12 days

0

41

Ariens 08329200

SG-TENS .091X.56X5.07 WLD 30

$21.99

$

Usually ships in 4-12 days

0

42

Ariens 06811800

PIN-CLEV .312X.822 HDND PL
(Superseded to 06814000)

$

$

Not available

43

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

$9.49

$

In Stock, only 3 left!

0

44

Ariens 03621400

IDLER PIVOT ARM

Note: (006,008,009,011)

$

$

Not available

44

Ariens 03631200

IDLER PIVOT ARM

Note: (010,012)

$

$

Not available

45

Ariens 07023400

BLT-SHLDR .38-16X1.25

$37.99

$

Usually ships in 4-12 days

0

46

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$2.99

$

In Stock, Qty 20+

0

47

Ariens 03617100

BELT FINGER
(Superseded to 03638300)

$55.99

$

Usually ships in 4-12 days

0

48

Ariens 07309200

IDLER-V 3X.38

$39.99

$

In Stock, only 2 left!

0

49

Ariens 05904900

BLT-HEX .38-16X3.00 PL GR2
(Superseded to 05957800)

$3.49

$

In Stock, Qty 9

0

50

Ariens 07314600

IDLER-FLAT 2.75X.38 PAINTED
(Superseded to 07333500)

$27.99

$

In Stock, only 2 left!

0

51

Ariens 03604600

TUBE
(Superseded to 03638400)

$28.99

$

Usually ships in 4-12 days

0

52

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

$3.49

$

In Stock, Qty 20+

0

53

Ariens 03601100

IDLER PIVOT ARM

$

$

Not available

54

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

55

Ariens 06700600

PIN-COTR .18X1.25 PL
(Superseded to 06712700)

$2.99

$

In Stock, only 2 left!

0

56

Ariens 03622900

SHOULDER STUD

$37.99

$

In Stock, only 2 left!

0

57

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$2.49

$

In Stock, Qty 20+

0

58

Ariens 05926200

SCR-CAP .44-20X4.00 GR5 HHPL
(Superseded to 05966800)

$7.99

$

Usually ships in 4-12 days

0

59

Ariens 06300500

WSHR-LK .438X.133 HVY
(Superseded to 06310700)

$3.99

$

In Stock, only 1 left!

0

60

Ariens 07216500

V-BELT, 4L-RAW EDGE

$46.99

$

Usually ships in 4-12 days

0

61

Ariens 06506500

NUT-LK 10-24 NY PL
(Superseded to 06536000)

$1.99

$

In Stock, Qty 20+

0

62

Ariens 03015600

SPECIAL WASHER

$

$

Not available

63

Ariens 03622700

LINK

$28.99

$

Usually ships in 4-12 days

0

64

Ariens 03601800

ELECTRIC CLUTCH/BRAKE(1.8AMP)

Note: (1.8 AMP)

$280.99

$

In Stock, only 1 left!

0

65

Ariens 05928300

BLT-HEX 10-24X1.00 PL GR2
(Superseded to 05960800)

$5.49

$

Usually ships in 4-12 days

0

66

Ariens 03605400

SHEAVE EXTENSION SHAFT
(Superseded to 03636500)

Note: (006,008,009,011)

$

$

Not available

66

Ariens 03614200

SHEAVE EXTENSION SHAFT
(Superseded to 03636400)

Note: (010,012)

$

$

Not available

67

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$4.99

$

In Stock, Qty 10

0

68

Ariens 03622400

BELT FINGER

$45.99

$

Usually ships in 4-12 days

0

69

Ariens 06506100

NUT-JAM .312-18 PL
(Superseded to 06536100)

$1.99

$

In Stock, Qty 10

0

70

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$1.99

$

In Stock, Qty 20+

0

71

Ariens 07403400

SCR-TAP 8-32X.38 SL HWH PL 23
(Superseded to 07414500)

Note: (009,010,011,012)

$2.99

$

Usually ships in 4-12 days

0

72

Ariens 03614900

TAIL PIPE WELDT

Note: (009,010,011,012)

$

$

Not available

73

Ariens 03611500

MUFFLER ASSY

Note: (009,010,011,012)

$242.99

$

Usually ships in 4-12 days

0

74

Ariens 03620700

BRACKET

Note: (009,010,011,012)

$42.99

$

Usually ships in 4-12 days

0

75

Ariens 03622600

BELT FINGER

$

$

Not available
