936013 (YT 16.5 H) - Ariens 40" Yard Tractor, 16.5hp Tecumseh, Hydro (SN: 000101 & Above) Attachment Lift Parts Diagram

40" Yard Tractor, 16.5hp Tecumseh, Hydro

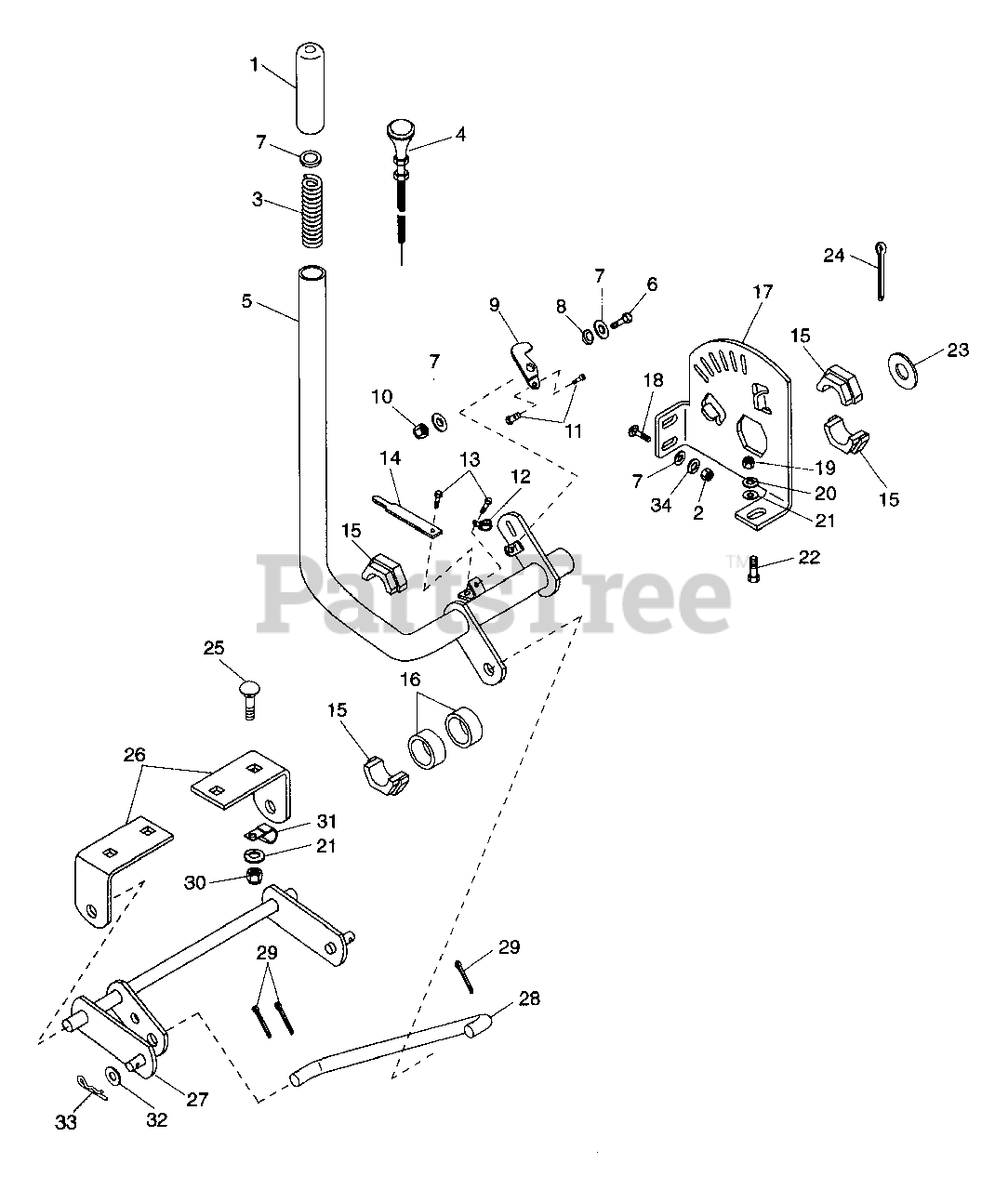

Attachment Lift Parts Diagram

  • Title

1

Ariens 07518700

HANDLE GRIP
(Superseded to 07500239)

$3.99

$

Usually ships in 4-12 days

0

2

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

3

Ariens 08310400

SG-COMP .048X.59X2.06 WLD9

$14.99

$

Usually ships in 4-12 days

0

4

Ariens 06920600

PUSH-PULL CONTROL

$68.99

$

Usually ships in 4-12 days

0

5

Ariens 03605600

LIFT LEVER
(Superseded to 03649000)

$331.99

$

Usually ships in 4-12 days

0

6

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 12

0

7

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 10

0

8

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

9

Ariens 03605900

LEVER

$

$

Not available

10

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 03604100

SWIVEL ASSY

$9.49

$

Usually ships in 4-12 days

0

12

Ariens 06909100

CABLE CLAMP NON SKID

$3.49

$

Usually ships in 4-12 days

0

13

Ariens 07404300

SCR-TAP 10-16X.50 HWH PL AB

$

$

Not available

14

Ariens 03604200

INDICATOR

$

$

Not available

15

Ariens 05507900

BSHG-FLG 1.014X1.750X.72

$29.99

$

Usually ships in 4-12 days

0

16

Ariens 03604300

SPACER 1.070X1.380X.615

$

$

Not available

17

Ariens 03605700

QUADRANT

$14.99

$

Usually ships in 4-12 days

0

18

Ariens 06209500

BLT-RDHDSQNK.31-18X.88 GR5YWZC

$2.99

$

Usually ships in 4-12 days

0

19

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 18

0

22

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06406300

WSHR-FL-STL 1.016X1.625X.045
(Superseded to 06436300)

$1.49

$

In Stock, Qty 16

0

24

Ariens 06702700

PIN-COTR .25X1.50 ST PL

$

$

Not available

25

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 03570700

CENTER LIFT BRACKET

$

$

Not available

27

Ariens 03645400

LEVER - CENTER LIFT

$

$

Not available

28

Ariens 03625300

LIFT LINK

$30.99

$

Usually ships in 4-12 days

0

29

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

Note: (Used Only On Model(s): 010,012,013,303,304).

$0.99

$

In Stock, Qty 12

0

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

Note: (Used Only On Model(s): 006,009,301,302).

$0.99

$

In Stock, Qty 12

0

30

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 1 left!

0

31

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

32

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06703700

PIN-HAIR EXT .12X.31X2.37 PL
(Superseded to 06711900)

$2.99

$

In Stock, only 3 left!

0

34

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0
