936013 (YT 16.5 H) - Ariens 40" Yard Tractor, 16.5hp Tecumseh, Hydro (SN: 000101 & Above) Hanger Arm Parts Diagram

40" Yard Tractor, 16.5hp Tecumseh, Hydro

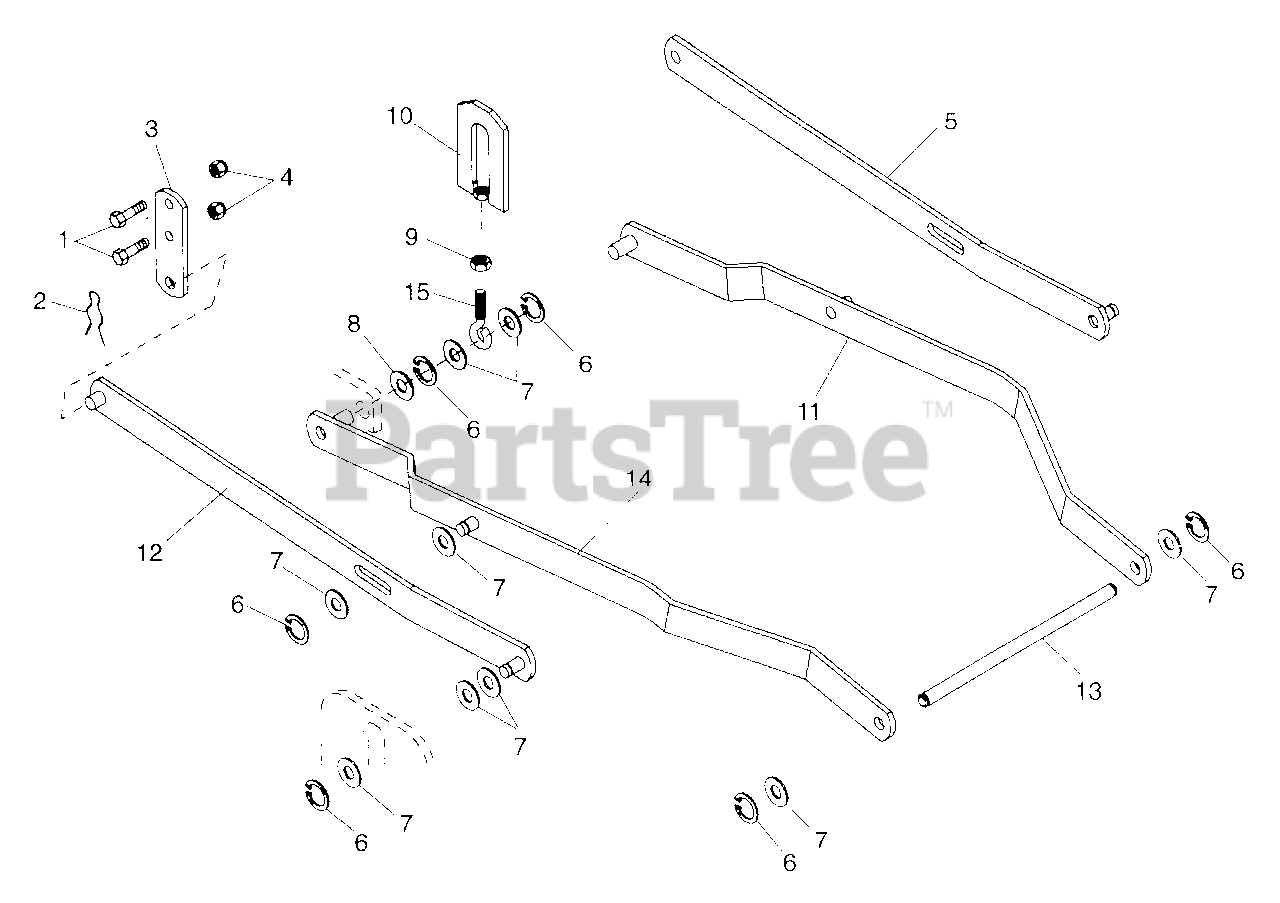

Hanger Arm Parts Diagram

  • Title

1

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.99

$

In Stock, Qty 10

0

2

Ariens 06705500

PIN-HAIR-EXT .062X.38X1.00

$

$

Not available

3

Ariens 03588700

HANGER BRACKET
(Superseded to 03588751)

$31.99

$

Usually ships in 4-12 days

0

4

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.99

$

Usually ships in 4-12 days

0

5

Ariens 03623700

REAR HANGER LH
(Superseded to 53605300)

$

$

Not available

6

Ariens 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, only 2 left!

0

7

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$1.49

$

In Stock, only 4 left!

0

8

Ariens 06420100

WSHR-FL-STL .531X1.250X.100 PL
(Superseded to 06441900)

$1.49

$

In Stock, only 4 left!

0

9

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 03486400

LINK, ADJUSTMENT

$44.99

$

In Stock, only 2 left!

0

11

Ariens 03623400

LH LIFT ARM
(Superseded to 53605300)

$

$

Not available

12

Ariens 03623600

REAR HANGER RH
(Superseded to 53605400)

$

$

Not available

13

Ariens 03622000

PIN
(Superseded to 53602400)

$55.99

$

Usually ships in 4-12 days

0

14

Ariens 03623500

RH LIFT ARM
(Superseded to 53605400)

$

$

Not available

15

Ariens 03624500

HANGER

$

$

Not available
