936013 (YT 16.5 H) - Ariens 40" Yard Tractor, 16.5hp Tecumseh, Hydro (SN: 000101 & Above) Steering Parts Diagram

40" Yard Tractor, 16.5hp Tecumseh, Hydro

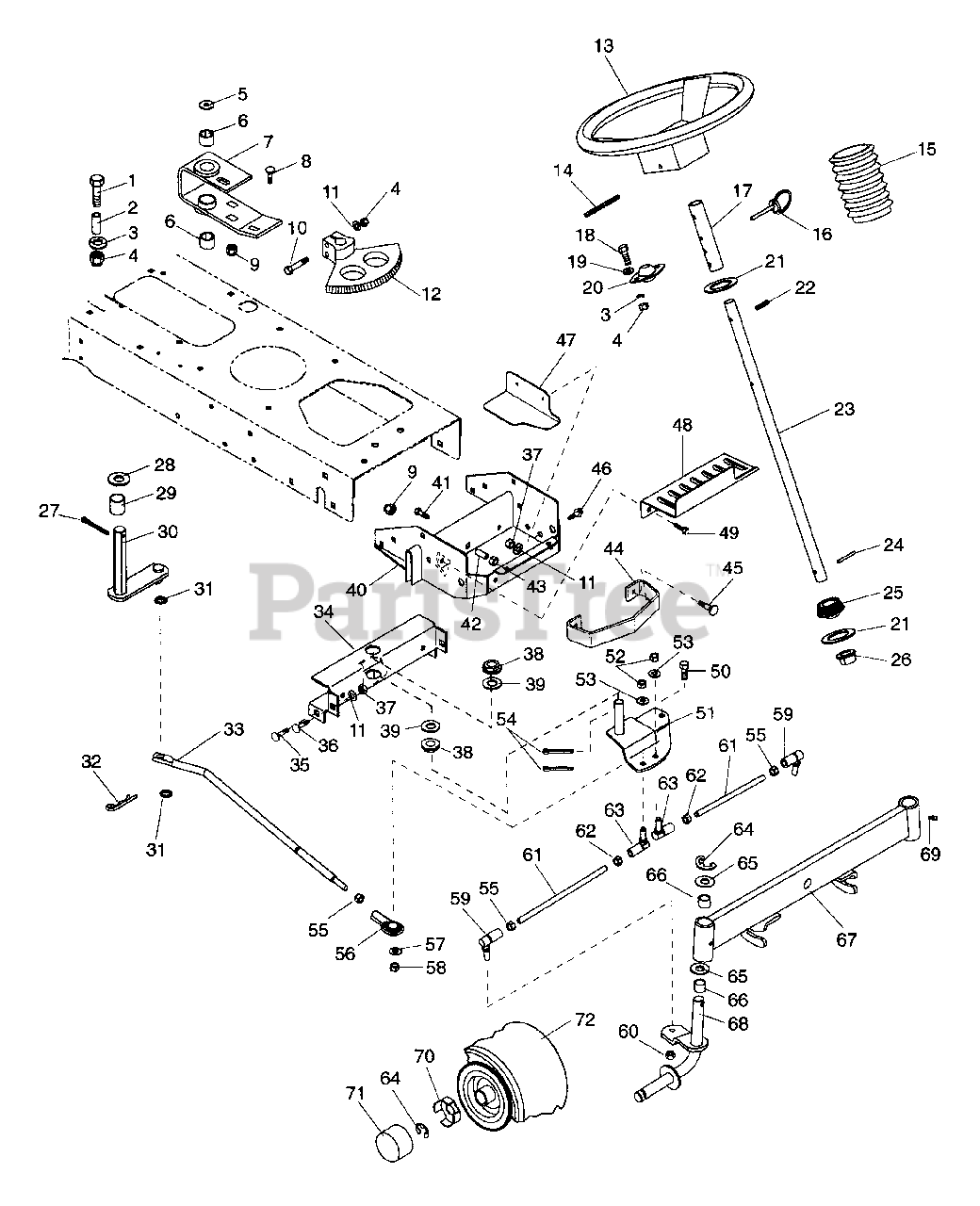

Steering Parts Diagram

  • Title

1

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.99

$

In Stock, Qty 6

0

2

Ariens 03418600

SPACER .344X.500X.875

$

$

Not available

3

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 5

0

4

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$1.49

$

In Stock, Qty 8

0

5

Ariens 06407100

WSHR-FL-STL .880X1.250X.062
(Superseded to 06436900)

$2.49

$

In Stock, Qty 6

0

6

Ariens 05508300

BSHG-SLV .750X1.000X.750 HX SB

$120.99

$

In Stock, only 2 left!

0

7

Ariens 03507800

STEERING BRACKET

$

$

Not available

8

Ariens 06207800

BLT-RDHDSQNK .375-16X.75 GR5PL
(Superseded to 06223900)

$1.99

$

In Stock, only 4 left!

0

9

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05907300

BLT-HEX .31-18X1.75 PL GR2
(Superseded to 05957400)

$3.49

$

In Stock, Qty 5

0

11

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 5

0

12

Ariens 02901900

STEERING BEVEL GEAR

$

$

Not available

13

Ariens 03600600

STEERING WHEEL 13"
(Superseded to 03671200)

$

$

Not available

14

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 11

0

15

Ariens 03602500

BOOT

$

$

Not available

16

Ariens 07003300

PIN-DET W/RING .25X1.00

$10.99

$

Usually ships in 4-12 days

0

17

Ariens 03603100

TUBE .754 X .999 X 5.00

$

$

Not available

18

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.99

$

In Stock, Qty 20+

0

19

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 05402500

BRG-FLG .751X2 HOLESX.81

$23.99

$

Usually ships in 4-12 days

0

21

Ariens 06406200

WSHR-FL-STL .754X1.125X.062 PL
(Superseded to 06441400)

$1.49

$

In Stock, Qty 6

0

22

Ariens 05802100

PIN-ROLL .188X1.13

$2.49

$

Usually ships in 4-12 days

0

23

Ariens 03602700

STEERING COLUMN

$

$

Not available

24

Ariens 02913300

PIN .249X1.125 DRIV-LOK SP

$18.99

$

Usually ships in 4-12 days

0

25

Ariens 02902100

PINION GEAR-STEERING

$65.99

$

In Stock, only 2 left!

0

26

Ariens 05508000

BSHG-FLG .750X1.093X.625X1.375

$19.99

$

Usually ships in 4-12 days

0

27

Ariens 06700600

PIN-COTR .18X1.25 PL
(Superseded to 06712700)

$2.49

$

In Stock, only 3 left!

0

28

Ariens 06411100

WSHR-FL-STL .875X1.250X.075

$

$

Not available

29

Ariens 03560700

SPACER .900X1.017X1.090

$

$

Not available

30

Ariens 03571800

ARM & SHAFT

$

$

Not available

31

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

$2.99

$

In Stock, Qty 20+

0

32

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.99

$

In Stock, only 1 left!

0

33

Ariens 03603000

DRAG LINK

$127.99

$

Usually ships in 4-12 days

0

34

Ariens 03566300

STEERING PIVOT CHANNEL
(Superseded to 53510600)

$

$

Not available

35

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.99

$

In Stock, Qty 20+

0

36

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

37

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 01212900

FLANGE BUSHING

$

$

Not available

39

Ariens 06400400

WSHR-FL-STL.656X1.312X.095 PL
(Superseded to 06442800)

$2.99

$

In Stock, Qty 20+

0

40

Ariens 03601200

FRONT AXLE SUPPORT

$

$

Not available

41

Ariens 05920000

BLT-HEX .50-13X1.50 PL GR5
(Superseded to 05962000)

$4.99

$

In Stock, Qty 7

0

42

Ariens 03503200

SPACER .531X.748X.524

$

$

Not available

43

Ariens 06512700

NUT-LK-CROWN .50-13 GR C PL
(Superseded to 06528200)

$3.99

$

In Stock, Qty 11

0

44

Ariens 03634900

FRONT BUMPER

Note: (Used Only On Model(s): 936009,936010,936012,936013,936303,936304).

$

$

Not available

45

Ariens 06201900

BLT-RDHDSQNK .38-16X.62 GR5 PL
(Superseded to 06223900)

Note: (Used Only On Model(s): 936009,936010,936012,936013,936303,936304).

$1.99

$

In Stock, only 4 left!

0

46

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

$2.49

$

In Stock, Qty 5

0

47

Ariens 03626300

DEFLECTOR PLATE

Note: (Used Only On Model(s): 012,013).

$

$

Not available

48

Ariens 03626200

BAFFLE- HEAT (ENG.COOLING AIR)

Note: (Used Only On Model(s): 012,013).

$

$

Not available

49

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.99

$

In Stock, Qty 10

0

50

Ariens 05913300

BLT-HEX .38-16X1.25 PL GR5
(Superseded to 05958000)

$1.99

$

In Stock, Qty 16

0

51

Ariens 03567400

STEERING PIVOT

$

$

Not available

52

Ariens 06506800

NUT-LK-CTR .375-24
(Superseded to 06539400)

$2.49

$

In Stock, only 4 left!

0

53

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

$8.49

$

In Stock, Qty 8

0

54

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 12

0

55

Ariens 06500500

NUT .375-24 PL

$4.99

$

In Stock, only 1 left!

0

56

Ariens 03563100

ROD END, .38 RH

$17.99

$

In Stock, only 2 left!

0

57

Ariens 06409300

WSHR-FL-STL .382X.812X.062
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

58

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.99

$

Usually ships in 4-12 days

0

59

Ariens 03562800

BALL JOINT-RH

$

$

Not available

60

Ariens 06512300

NUT-LK .375-24 PL

$3.99

$

Usually ships in 4-12 days

0

61

Ariens 03562700

TIE ROD

$

$

Not available

62

Ariens 06507300

NUT L.H. THD .375-24 PL

$

$

Not available

63

Ariens 03562900

BALL JOINT-LH

$46.99

$

Usually ships in 4-12 days

0

64

Ariens 05707400

RG-RTNG-EXT .750X.050

$2.99

$

Usually ships in 4-12 days

0

65

Ariens 06401700

WSHR-FL-STL .755X1.375X.093
(Superseded to 06441500)

$3.99

$

In Stock, Qty 20+

0

66

Ariens 05505700

BSHG-SLV .750X.814X .750 BRZ

$17.99

$

In Stock, only 2 left!

0

67

Ariens 03620800

FRONT AXLE

$

$

Not available

68

Ariens 03620900

SPINDLE LH

$68.99

$

Usually ships in 4-12 days

0

68

Ariens 03621000

SPINDLE RH

$67.02

$

Usually ships in 4-12 days

0

69

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

70

Ariens 03516900

SPINDLE CUP

$19.99

$

In Stock, only 1 left!

0

71

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

72

Ariens 07137000

T/WHL ASSY 13X5.00-6

Note: (Used Only On Model(s): 006,301).

$

$

Not available

72

Ariens 07137600

RIM

Note: (Used Only On Model(s): 006,301).

$

$

Not available

72

Ariens 07102800

TIRE

Note: (Used Only On Model(s): 006,301).

$

$

Not available

72

Ariens 07136500

T/WHL ASSY 15X6.00-6
(Superseded to 07149400)

Note: (Used Only On Model(s): 009,010,012,013,302,303,304).

$148.99

$

Usually ships in 4-12 days

0

72

Ariens 07136600

RIM
(Superseded to 07149500)

Note: (Used Only On Model(s): 009,010,012,013,302,303,304).

$

$

Not available

72

Ariens 07109900

TIRE

Note: (Used Only On Model(s): 009,010,012,013,302,303,304).

$

$

Not available

72

Ariens 05520700

BSHG .75 BORE
(Superseded to 05434900)

$15.99

$

In Stock, Qty 20+

0
