936014 (1340 G) - Ariens Sierra 40" Yard Tractor, 13hp Tecumseh, Gear (SN: 000101 - 000300)

Sierra 40" Yard Tractor, 13hp Tecumseh, Gear

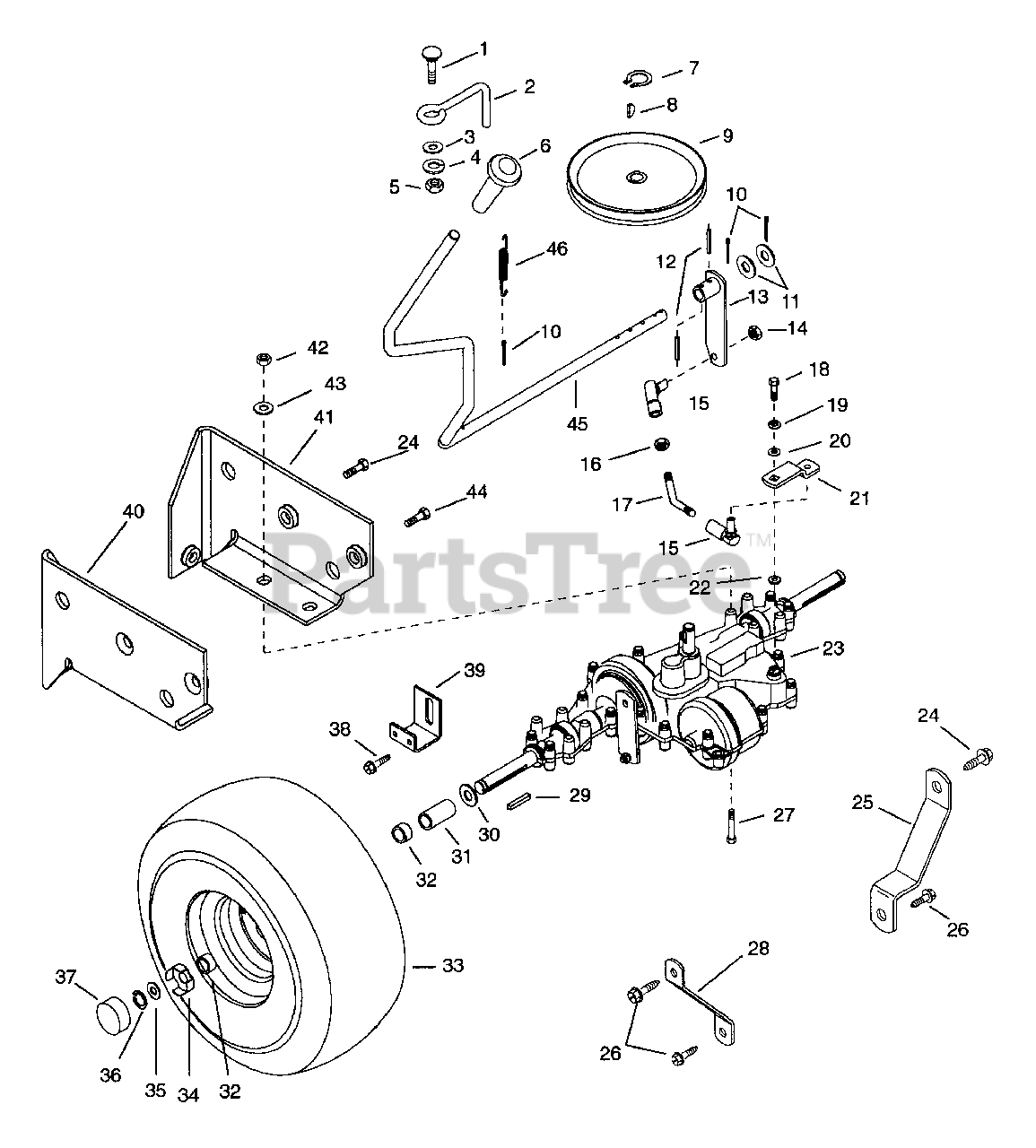

936014 (1340 G) - Ariens Sierra 40" Yard Tractor, 13hp Tecumseh, Gear (SN: 000101 - 000300) > Parts Diagrams (11) > Rear Wheel & Gear Drive

  • Title
06204100

1

BLT-RDHDSQNK.31-18X.75GR5SHTPL

Part# 06204100 (Superseded to 06220800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

03648300

2

FINGER - BELT

Part# 03648300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.39

06412300

3

WSHR-FL-STL.344X.688X.065PL

Part# 06412300 (Superseded to 06437200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06300300

4

WSHR-LK .312X.097 PL HVY

Part# 06300300 (Superseded to 06307400)

OEM Warranty Repair Part for Ariens

Not available

06501500

5

NUT-HEX .312-18

Part# 06501500 (Superseded to 06529200)

OEM Warranty Repair Part for Ariens

Not available

07514500

6

KNOB

Part# 07514500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $23.42

05701900

7

RG-RTNG-EXT .625X.035

Part# 05701900 (Superseded to 05711900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06600300

8

KEY-WDRF .188X.75X.313 SAE 9

Part# 06600300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

07309100

9

PLY-TRANS 7.00X.626

Part# 07309100

OEM Warranty Repair Part for Ariens

Not available

06700400

10

PIN-COTR .12X1.0 PL

Part# 06700400 (Superseded to 06707100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06418000

11

WSHR-FL-STL .520X.827X.062 YZ

Part# 06418000 (Superseded to 06441100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05804500

12

PIN-GRV .188X1.25 TP A

Part# 05804500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

03638100

13

ARM & HUB

Part# 03638100

OEM Warranty Repair Part for Ariens

Not available

06504300

14

NUT-LK-CTR .312-24 PL

Part# 06504300 (Superseded to 06537000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

03645500

15

BALL JOINT- SNAP IN

Part# 03645500

OEM Warranty Repair Part for Ariens

Not available

06510000

16

NUT-JAM .312-24 PL

Part# 06510000 (Superseded to 06536700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

03638200

17

LINK - SHIFT

Part# 03638200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

05931000

18

BLT-HEX .25-28X.75 PL GR8

Part# 05931000 (Superseded to 05970000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

06300200

19

WSHR-LK .250X.077 HVY PL

Part# 06300200 (Superseded to 06308000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06421400

20

WSHR-FL-STL .328X1.0X.094 PL

Part# 06421400 (Superseded to 06437500)

OEM Warranty Repair Part for Ariens

Not available

03638600

21

ARM - SHIFT 6 SPD

Part# 03638600

OEM Warranty Repair Part for Ariens

Not available

06405800

22

WSHR-FL-STL .505X1.000X.062

Part# 06405800 (Superseded to 06439200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03652600

23

TRANSAXLE - GEAR 6 SPEED MST

Part# 03652600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $604.77

07402200

24

SCR-TAP .375-16X.75 HWH PL TR

Part# 07402200 (Superseded to 07415400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

03638500

25

STRAP - TORQUE,LH 6 SPD

Part# 03638500

OEM Warranty Repair Part for Ariens

Not available

07401700

26

SCR-TAP .312-18X.75 HWH PL TR

Part# 07401700 (Superseded to 07414400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05916300

27

BLT-HEX .31-18X2.50 PL GR5

Part# 05916300 (Superseded to 05952600)

OEM Warranty Repair Part for Ariens

Not available

03645100

28

TORQUE STRAP

Part# 03645100

OEM Warranty Repair Part for Ariens

Not available

06601900

29

KEY-SQ .188X2.0X.188 SAE 8630

Part# 06601900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06404800

30

WSHR-FL-STL .755X1.375X.062 PL

Part# 06404800 (Superseded to 06441500)

OEM Warranty Repair Part for Ariens

Not available

05510400

31

BSHG-SLV .750X1.125X1.062

Part# 05510400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $9.34

03604800

32

SPACER .760X1.000X.575

Part# 03604800

OEM Warranty Repair Part for Ariens

Not available

07126900

33

T/WHL ASSY 20X8.00-8

Part# 07126900

OEM Warranty Repair Part for Ariens

Not available

07133100

RIM

Part# 07133100 (Superseded to 07153600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $111.74

07133200

TIRE 20X10-8 2P TS TL

Part# 07133200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $91.68

03516900

34

SPINDLE CUP

Part# 03516900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.24

06404800

35

WSHR-FL-STL .755X1.375X.062 PL

Part# 06404800 (Superseded to 06441500)

OEM Warranty Repair Part for Ariens

Not available

05707400

36

RG-RTNG-EXT .750X.050

Part# 05707400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00337700

37

HUB CAP

Part# 00337700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

07413400

38

SCR-TAP .312-18X.50 HWH TR BL

Part# 07413400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

03603400

39

SHIFT GUIDE BRACKET

Part# 03603400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

03643900

40

MOUNT - TRANS. RH

Part# 03643900

OEM Warranty Repair Part for Ariens

Not available

03645900

41

MOUNT - TRANS. LH

Part# 03645900

OEM Warranty Repair Part for Ariens

Not available

06512400

42

NUT-LK-TOP .312-18 GR C PL

Part# 06512400 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06409000

43

WSHR-FL-STL .328X.875X.062 PL

Part# 06409000 (Superseded to 06439400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

07401600

44

SCR-TAP .375-16X .50 HWH PL TR

Part# 07401600 (Superseded to 07412900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

03654500

45

LEVER - SHIFT

Part# 03654500

OEM Warranty Repair Part for Ariens

Not available

08314100

46

SG-TENS .063X.44X1.56

Part# 08314100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53
