936018 (1540 H) - Ariens Sierra 40" Yard Tractor, 15hp Kohler, Hydro (SN: 000101 - 001600)

Sierra 40" Yard Tractor, 15hp Kohler, Hydro

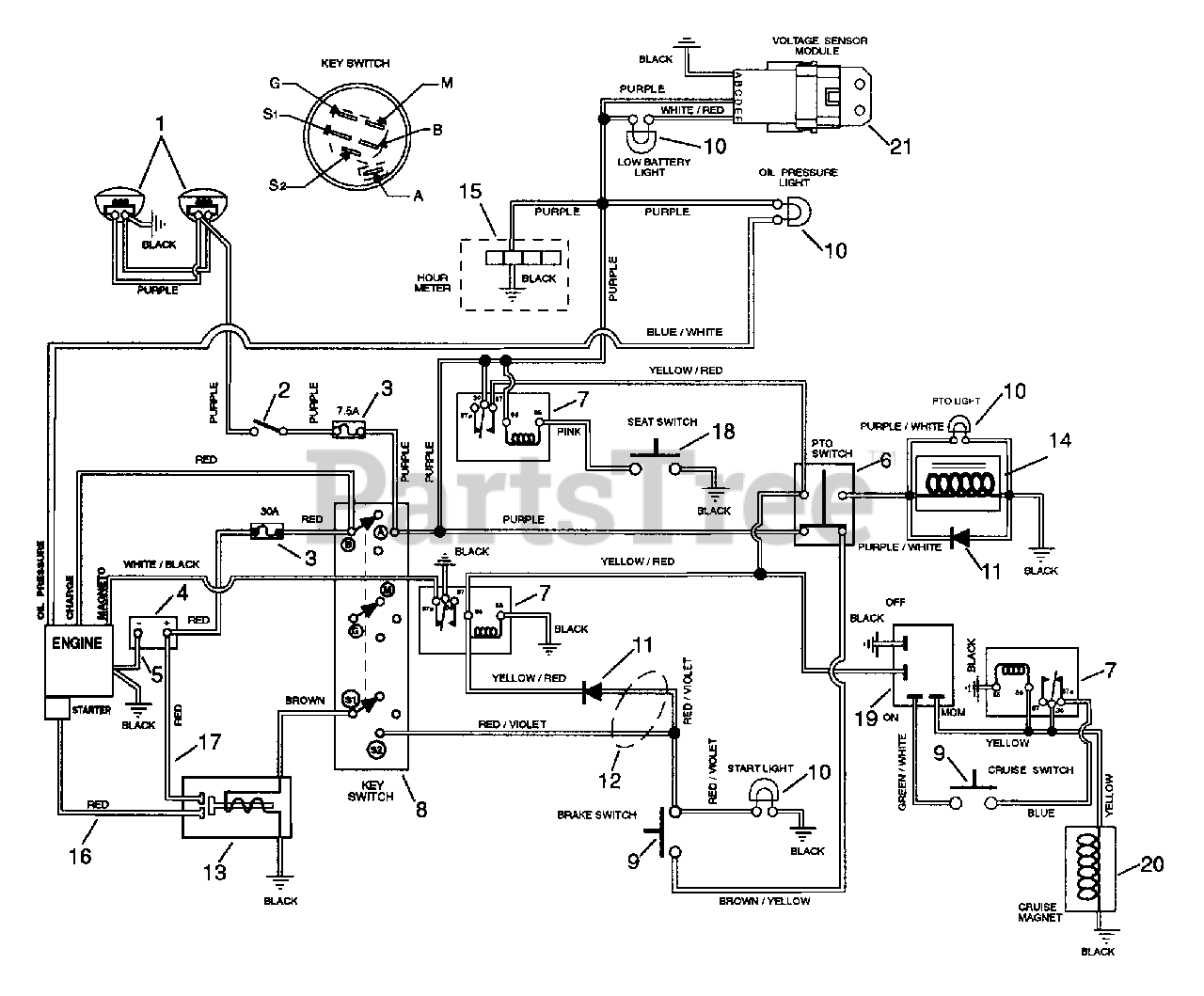

936018 (1540 H) - Ariens Sierra 40" Yard Tractor, 15hp Kohler, Hydro (SN: 000101 - 001600) > Parts Diagrams (11) > Electrical

  • Title
03647200

1

HEADLIGHT- RH

Part# 03647200

OEM Warranty Repair Part for Ariens

Not available

03647300

1

HEADLIGHT- LH

Part# 03647300

OEM Warranty Repair Part for Ariens

Not available

03656800

2

SWITCH - LIGHT

Part# 03656800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $35.16

3

7.5 AMP Fuse

Part#

Not available

3

30 AMP Fuse

Part#

Not available

03634400

4

BATTERY W/TUBE

Part# 03634400 (Superseded to 03621100)

OEM Warranty Repair Part for Ariens

Not available

03111100

5

GROUND CABLE .31X22.00X.31

Part# 03111100 (Superseded to 03111101)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

53603800

6

PTO KNOB/ SWITCH ASSY

Part# 53603800 (Superseded to 00355900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $73.90

03042800

7

RELAY

Part# 03042800 (Superseded to 00432101)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

03602300

8

KEY SWITCH

Part# 03602300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.89

03657100

9

SWITCH- SINGLE POLE N.O.

Part# 03657100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $9.34

10

#194 Bulb

Part#

Not available

03081700

11

MOLDED DIODE PLUG 1 AMP

Part# 03081700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $25.77

03658400

12

WIRE HARNESS - 1540H KOHLER

Part# 03658400 (Superseded to 03671800)

OEM Warranty Repair Part for Ariens

Not available

03492300

13

SOLENOID

Part# 03492300 (Superseded to 03551000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.55

03643100

14

ELECTRIC CLUTCH/BRAKE (3.4AMP)

Part# 03643100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $277.50

73600800

15

HOURMETER KIT- SIERRA

Part# 73600800

Note: (Optional)

OEM Warranty Repair Part for Ariens

Not available

02743300

16

START CABLE 22"

Part# 02743300 (Superseded to 03287200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.55

00145900

17

STARTER CABLE 6.75"

Part# 00145900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

03654200

18

SWITCH- SEAT

Part# 03654200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $41.03

03656900

19

SWITCH - CRUISE

Part# 03656900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $46.90

03655300

20

MAGNET

Part# 03655300 (Superseded to 03359700)

OEM Warranty Repair Part for Ariens

Not available

03653300

21

MODULE - VOLTAGE SENSOR

Part# 03653300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $60.99
