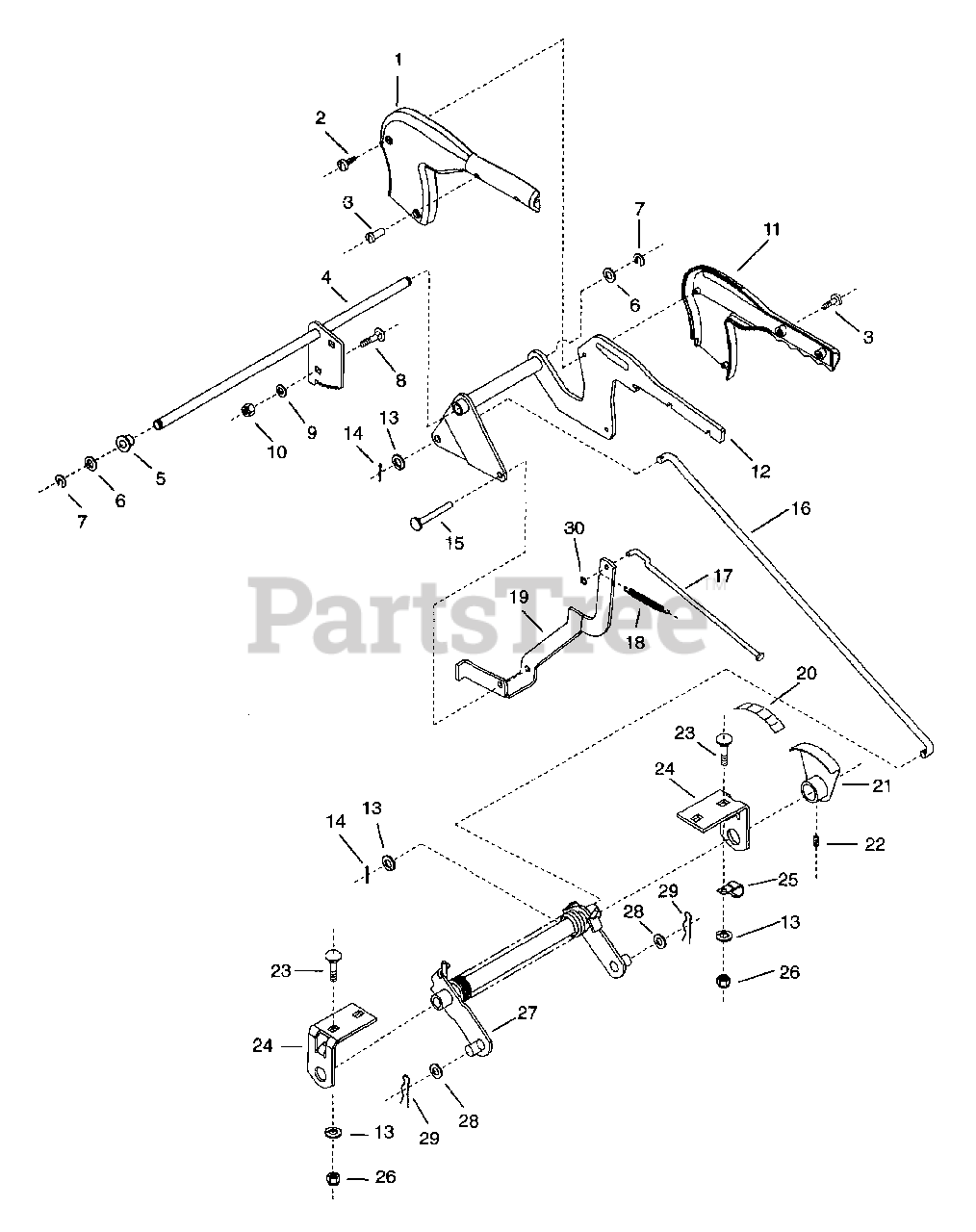

936020 (1640 H) - Ariens Sierra 40" Yard Tractor, 16hp Tecumseh, Hydro (SN: 000101 - 000300) > Parts Diagrams (11) > Attachment Lift

  • Title
03653400

1

COVER - LIFT RH

Part# 03653400 (Superseded to 03665500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $181.39

07412600

2

SCR-TAP 10-16X1.125HI-LOTPHBL

Part# 07412600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07030500

3

POST & SCREW-RAPID ASSY .375

Part# 07030500 (Superseded to 53604300)

OEM Warranty Repair Part for Ariens

Not available

03646000

4

PIVOT - LIFT LEVER

Part# 03646000 (Superseded to 53605000)

OEM Warranty Repair Part for Ariens

Not available

05522200

5

BSHG-FLG .508X.873X.375X1.19

Part# 05522200

OEM Warranty Repair Part for Ariens

Not available

06418000

6

WSHR-FL-STL .520X.827X.062 YZ

Part# 06418000 (Superseded to 06441100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05716900

7

RG-RTNG-EXT .500X.460

Part# 05716900 (Superseded to 05717100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06216600

8

BLT-RDHDSQNK .31-18X.75

Part# 06216600 (Superseded to 06200232)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06405700

9

WSHR-FL-STL .323X.625X.062 PL

Part# 06405700 (Superseded to 06436700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06506200

10

NUT-LK-NYL.312-18 PL

Part# 06506200 (Superseded to 06530200)

OEM Warranty Repair Part for Ariens

Not available

03653500

11

COVER - LIFT LH

Part# 03653500 (Superseded to 03665600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $85.82

03653900

12

LEVER - LIFT

Part# 03653900 (Superseded to 03666100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $156.46

06404300

13

WSHR-FL-STL.406X.812X.065PL

Part# 06404300 (Superseded to 06436200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06700400

14

PIN-COTR .12X1.0 PL

Part# 06700400 (Superseded to 06707100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

03653800

15

PIN, PIVOT .312 X 2.56

Part# 03653800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

03653700

16

LIFT LINK

Part# 03653700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

03654000

17

PIN - LIFT

Part# 03654000 (Superseded to 03675000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

08330300

18

SG-TENS .048X.44X2.25 WLD 9

Part# 08330300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

03654100

19

LEVER - DETENT

Part# 03654100 (Superseded to 03683051)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.61

07719000

20

DECAL - INDICATOR

Part# 07719000

OEM Warranty Repair Part for Ariens

Not available

03654900

21

INDICATOR - DECK HEIGHT

Part# 03654900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06000500

22

SCR-SET .25-20X.25 SKHCUP OH

Part# 06000500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.02

06201000

23

BLT-RDHDSQNK .38-16X.75 SHT PL

Part# 06201000 (Superseded to 06200004)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.98

03642400

24

BRACKET - CENTER LIFT

Part# 03642400

OEM Warranty Repair Part for Ariens

Not available

06916000

25

J-CLAMP

Part# 06916000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06503900

26

NUT-LK-CTR .375-16 GR A PL

Part# 06503900 (Superseded to 06529600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03643800

27

LEVER - CENTER LIFT

Part# 03643800

OEM Warranty Repair Part for Ariens

Not available

06403900

28

WSHR-FL-STL .630X1.005X.062 PL

Part# 06403900 (Superseded to 06436100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06703700

29

PIN-HAIR EXT .12X.31X2.37 PL

Part# 06703700 (Superseded to 06711900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05717600

30

RG-RTNG-EXT .250X.010

Part# 05717600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40
