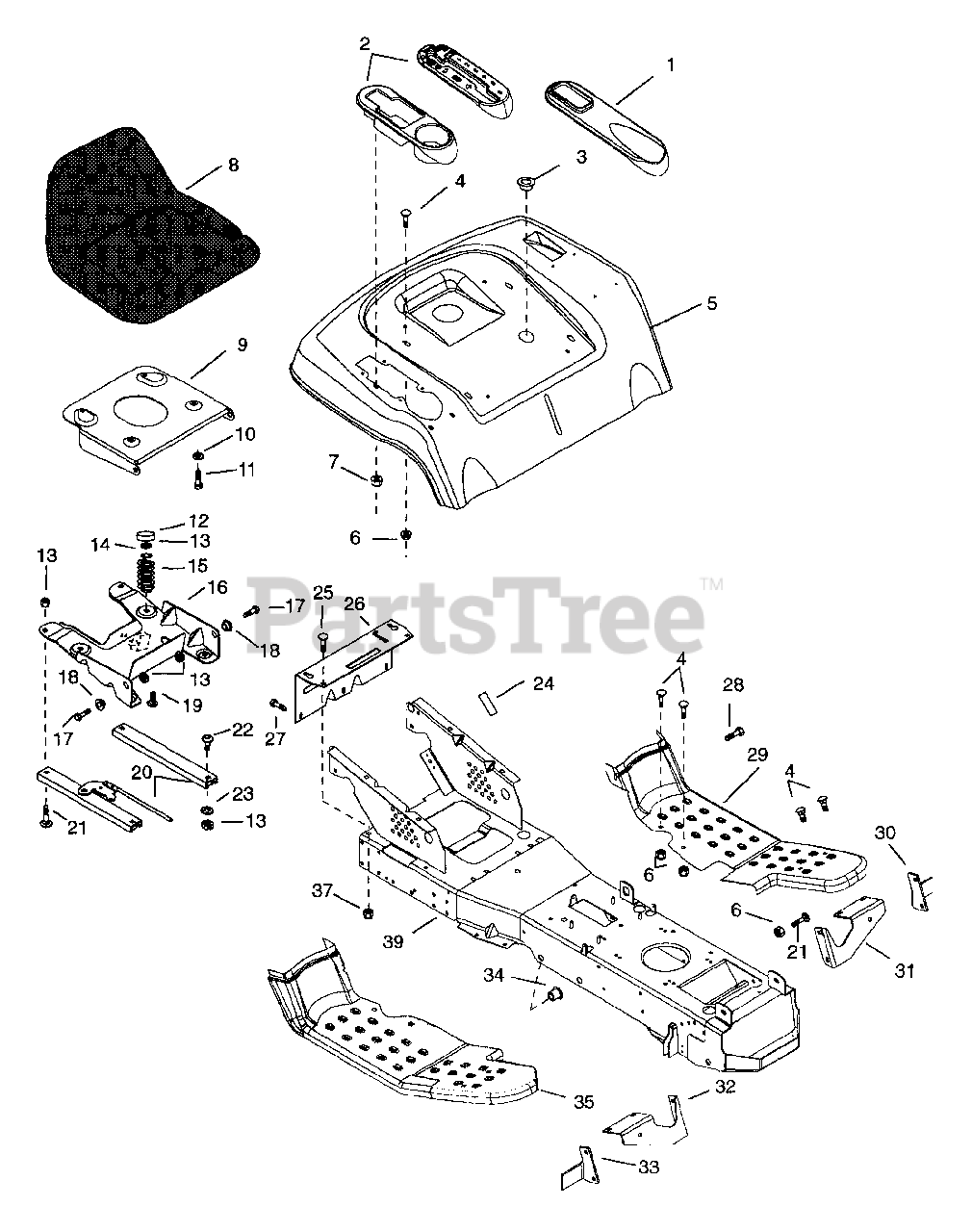

936020 (1640 H) - Ariens Sierra 40" Yard Tractor, 16hp Tecumseh, Hydro (SN: 000101 - 000300) > Parts Diagrams (11) > Frame & Rear Deck

  • Title
03650300

1

INSERT- LIFT

Part# 03650300

OEM Warranty Repair Part for Ariens

Not available

03652000

2

INSERT- SHIFT

Part# 03652000

Note: (Used Only On Model(s): 014,015,305).

OEM Warranty Repair Part for Ariens

Not available

03652500

2

INSERT - BEVERAGE

Part# 03652500

Note: (Used Only On Model(s): 016,017,018,019,020,306,307).

OEM Warranty Repair Part for Ariens

Not available

07521000

3

SNAP BUSHING

Part# 07521000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06203300

4

BLT-RDHDSQNK .312-18X.62SHTPL

Part# 06203300 (Superseded to 06212200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

03649400

5

REAR DECK

Part# 03649400 (Superseded to 03649459)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $75.80

06507800

6

NUT-FLG. .312-18 PL

Part# 06507800 (Superseded to 06530400)

OEM Warranty Repair Part for Ariens

Not available

07008000

7

NUT-SELF-THRDNG FITS.25 STUDPL

Part# 07008000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.66

03655600

8

SEAT- V1400

Part# 03655600

Note: (Used Only On Model(s): 014,015,016,017,305,306).

OEM Warranty Repair Part for Ariens

Not available

03643000

8

SEAT V-1500 HI WELTLESS

Part# 03643000 (Superseded to 00366300)

Note: (Used Only On Model(s): 018,019,020,307).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $348.63

03650400

9

SEAT PIVOT PLATE

Part# 03650400

OEM Warranty Repair Part for Ariens

Not available

06300300

10

WSHR-LK .312X.097 PL HVY

Part# 06300300 (Superseded to 06307400)

OEM Warranty Repair Part for Ariens

Not available

05902200

11

BLT-HEX .31-18X.75 PL GR2

Part# 05902200 (Superseded to 05947000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07521600

12

TUBE CAP

Part# 07521600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06504200

13

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06412300

14

WSHR-FL-STL.344X.688X.065PL

Part# 06412300 (Superseded to 06437200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

08328200

15

SG-COMP .148X1.23X2.41 WLD87

Part# 08328200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

03618100

16

BOX, SEAT

Part# 03618100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

05913500

17

BLT-HEX .31-18X.75 PL GR5

Part# 05913500 (Superseded to 05947000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05516200

18

BSHG-FLG .325X.465X.333X.685

Part# 05516200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

06204100

19

BLT-RDHDSQNK.31-18X.75GR5SHTPL

Part# 06204100 (Superseded to 06220800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

03600800

20

SEAT SLIDES -(RAME TAK-3010-4)

Part# 03600800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $90.00

06203400

21

BLT-RDHDSQNK .31-18X.75 SHT PL

Part# 06203400 (Superseded to 06214100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

07008100

22

SCR-CAP BTHD.31-18X.50 GR5 YZ

Part# 07008100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

06409000

23

WSHR-FL-STL .328X.875X.062 PL

Part# 06409000 (Superseded to 06439400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

08800600

24

PAD,BATTERY

Part# 08800600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06207800

25

BLT-RDHDSQNK .375-16X.75 GR5PL

Part# 06207800 (Superseded to 06223900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03601600

26

DRAW BAR

Part# 03601600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $78.20

07401700

27

SCR-TAP .312-18X.75 HWH PL TR

Part# 07401700 (Superseded to 07414400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07401600

28

SCR-TAP .375-16X .50 HWH PL TR

Part# 07401600 (Superseded to 07412900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

03649300

29

FOOTREST- LH

Part# 03649300 (Superseded to 03649359)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

03648100

30

BRACKET - MOWER HEIGHT L.H.

Part# 03648100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

03649800

31

BRACE - FOOT REST L.H.

Part# 03649800

OEM Warranty Repair Part for Ariens

Not available

03649900

32

BRACE - FOOT REST R.H.

Part# 03649900

OEM Warranty Repair Part for Ariens

Not available

03648200

33

BRACKET - MOWER HEIGHT R.H.

Part# 03648200

OEM Warranty Repair Part for Ariens

Not available

05521100

34

BSHG-FLG .515X.750X.745X1.00NY

Part# 05521100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

03649200

35

FOOTREST- RH HYDRO

Part# 03649200

Note: (Used Only On Model(s): 016,017,018,019,020,306,307).

OEM Warranty Repair Part for Ariens

Not available

03649500

35

FOOTREST- R GEAR

Part# 03649500

Note: (Used Only On Model(s): 014,015,305).

OEM Warranty Repair Part for Ariens

Not available

03650000

39

MAIN FRAME

Part# 03650000

Note: (not 021,309)

OEM Warranty Repair Part for Ariens

Not available

06503900

37

NUT-LK-CTR .375-16 GR A PL

Part# 06503900 (Superseded to 06529600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85
