936020 (1640 H) - Ariens Sierra 40" Yard Tractor, 16hp Tecumseh, Hydro (SN: 000101 - 000300)

Sierra 40" Yard Tractor, 16hp Tecumseh, Hydro

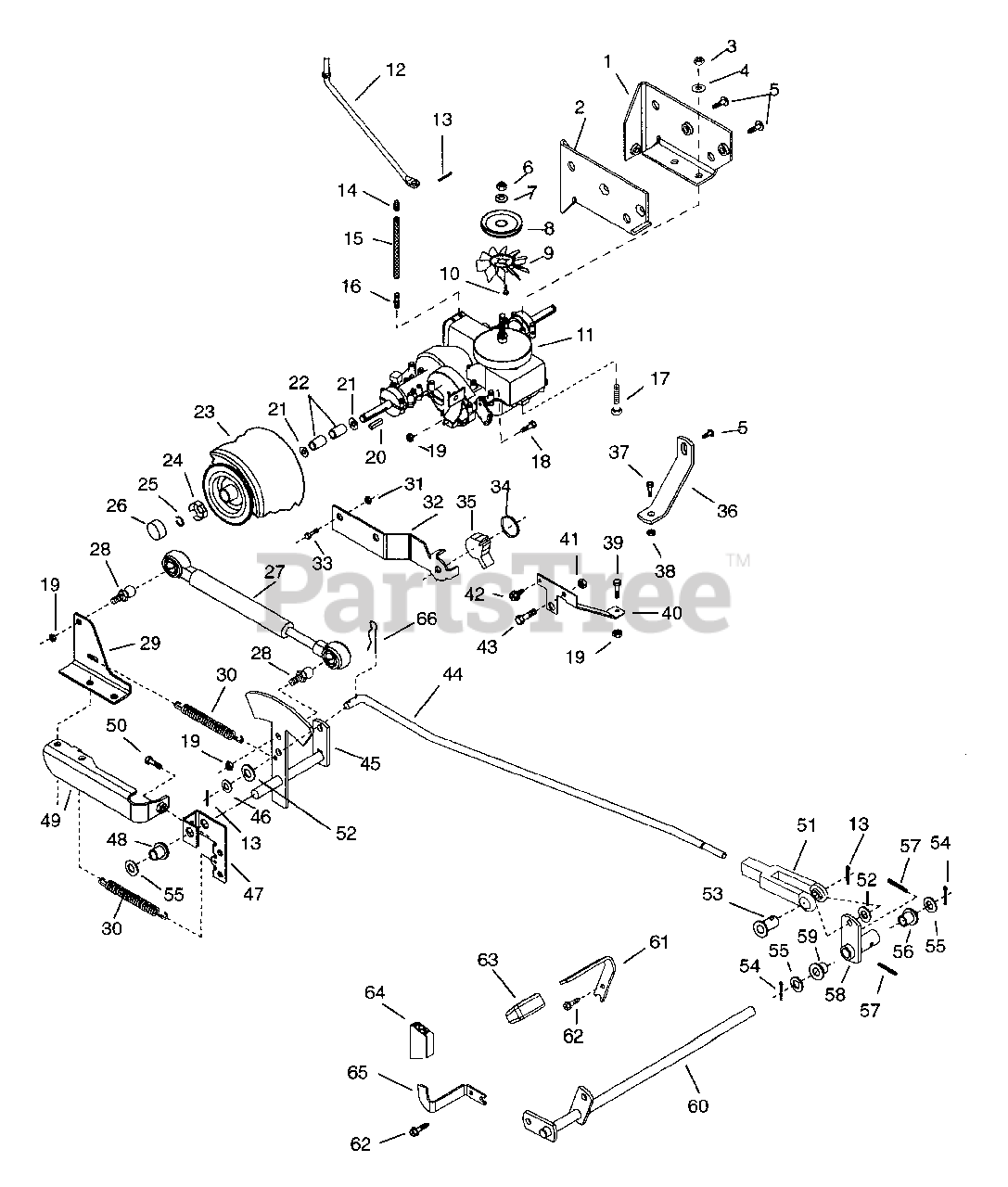

936020 (1640 H) - Ariens Sierra 40" Yard Tractor, 16hp Tecumseh, Hydro (SN: 000101 - 000300) > Parts Diagrams (11) > Rear Wheel & Hydro Drive

  • Title
03645900

1

MOUNT - TRANS. LH

Part# 03645900

OEM Warranty Repair Part for Ariens

Not available

03643900

2

MOUNT - TRANS. RH

Part# 03643900

OEM Warranty Repair Part for Ariens

Not available

06512400

3

NUT-LK-TOP .312-18 GR C PL

Part# 06512400 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06409000

4

WSHR-FL-STL .328X.875X.062 PL

Part# 06409000 (Superseded to 06439400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

07402200

5

SCR-TAP .375-16X.75 HWH PL TR

Part# 07402200 (Superseded to 07415400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06504400

6

NUT-JAM .50-20 PL

Part# 06504400 (Superseded to 06539500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

06305100

7

WSHR-LK .50 REG.

Part# 06305100 (Superseded to 06300115)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

07321400

8

SHEAVE - TRANSAXLE

Part# 07321400 (Superseded to 01569100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $47.11

03570000

9

FAN

Part# 03570000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $33.48

07410800

10

SCR-TAP 10-32X.62 HWH PL T

Part# 07410800

OEM Warranty Repair Part for Ariens

Not available

03648800

11

TRANSAXLE- HYDRO #325-0750

Part# 03648800 (Superseded to 03668900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1209.61

03647400

12

ROD - TRANS. DISCONNECT

Part# 03647400

OEM Warranty Repair Part for Ariens

Not available

06700100

13

PIN-COTR .09X.75 PL

Part# 06700100 (Superseded to 06706900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07026400

14

CAP-VENT .50

Part# 07026400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $9.61

03635100

15

HOSE- VENT .50ID X 7.50LONG

Part# 03635100

OEM Warranty Repair Part for Ariens

Not available

07026300

16

FTG-STR .50 O-RING

Part# 07026300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $12.27

05916300

17

BLT-HEX .31-18X2.50 PL GR5

Part# 05916300 (Superseded to 05952600)

OEM Warranty Repair Part for Ariens

Not available

05902200

18

BLT-HEX .31-18X.75 PL GR2

Part# 05902200 (Superseded to 05947000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06504200

19

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06601900

20

KEY-SQ .188X2.0X.188 SAE 8630

Part# 06601900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06404800

21

WSHR-FL-STL .755X1.375X.062 PL

Part# 06404800 (Superseded to 06441500)

OEM Warranty Repair Part for Ariens

Not available

05510400

22

BSHG-SLV .750X1.125X1.062

Part# 05510400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

07126900

23

T/WHL ASSY 20X8.00-8

Part# 07126900

OEM Warranty Repair Part for Ariens

Not available

07133100

23

RIM

Part# 07133100 (Superseded to 07153600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $98.94

07133200

23

TIRE 20X10-8 2P TS TL

Part# 07133200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $82.68

03516900

24

SPINDLE CUP

Part# 03516900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.39

05707400

25

RG-RTNG-EXT .750X.050

Part# 05707400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00337700

26

HUB CAP

Part# 00337700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

03652100

27

DAMPER - HYDRAULIC

Part# 03652100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $51.37

03652200

28

STUD- BALL

Part# 03652200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

03650900

29

ANCHOR - SPRING - TOP

Part# 03650900

OEM Warranty Repair Part for Ariens

Not available

08320200

30

SG-TENS .085X.60X5.13 WLD8.3

Part# 08320200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.30

06503900

31

NUT-LK-CTR .375-16 GR A PL

Part# 06503900 (Superseded to 06529600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03651100

32

MOUNT - MAGNET

Part# 03651100 (Superseded to 53607700)

OEM Warranty Repair Part for Ariens

Not available

05929500

33

BLT-HEX .38-16X.50 PL GR5

Part# 05929500 (Superseded to 05967000)

OEM Warranty Repair Part for Ariens

Not available

05614400

34

O-RING 1.125X1.375X.125

Part# 05614400

OEM Warranty Repair Part for Ariens

Not available

03655300

35

MAGNET

Part# 03655300 (Superseded to 03359700)

OEM Warranty Repair Part for Ariens

Not available

03654700

36

STRAP - TORQUE L.H.

Part# 03654700

OEM Warranty Repair Part for Ariens

Not available

06913400

37

CHOKE CONTROL

Part# 06913400 (Superseded to 06919100)

OEM Warranty Repair Part for Ariens

Not available

06506200

38

NUT-LK-NYL.312-18 PL

Part# 06506200 (Superseded to 06530200)

OEM Warranty Repair Part for Ariens

Not available

05916900

39

BLT-HEX .31-18X2.25 PL GR5

Part# 05916900 (Superseded to 05963700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

03651500

40

STRAP - TORQUE R.H.

Part# 03651500 (Superseded to 53604900)

OEM Warranty Repair Part for Ariens

Not available

06512200

41

NUT-LK TOP .375-16 GR C YWZC

Part# 06512200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

07413400

42

SCR-TAP .312-18X.50 HWH TR BL

Part# 07413400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05915400

43

BLT-HEX .38-16X.75 PL GR5

Part# 05915400 (Superseded to 05959400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

03651600

44

ROD - SHAFT

Part# 03651600 (Superseded to 03666800)

OEM Warranty Repair Part for Ariens

Not available

03651900

45

ARM - SHIFT

Part# 03651900 (Superseded to 03664600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

06404300

46

WSHR-FL-STL.406X.812X.065PL

Part# 06404300 (Superseded to 06436200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03650800

47

PIVOT - REVERSE

Part# 03650800 (Superseded to 53605500)

OEM Warranty Repair Part for Ariens

Not available

05518000

48

BSHG-FLG .508X.645X.459X.75 NY

Part# 05518000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

03652300

49

ANCHOR - SPRING - BOTTOM

Part# 03652300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

05906900

50

BLT-HEX .31-18X1.25 PL GR2

Part# 05906900 (Superseded to 05947500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07014900

51

SNAP-SWIVEL .625

Part# 07014900

OEM Warranty Repair Part for Ariens

Not available

06414500

52

WSHR-FL-STL .390X.750X.125 PL

Part# 06414500 (Superseded to 06444300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06811800

53

PIN-CLEV .312X.822 HDND PL

Part# 06811800 (Superseded to 06814000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06700400

54

PIN-COTR .12X1.0 PL

Part# 06700400 (Superseded to 06707100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06418000

55

WSHR-FL-STL .520X.827X.062 YZ

Part# 06418000 (Superseded to 06441100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05521100

56

BSHG-FLG .515X.750X.745X1.00NY

Part# 05521100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05804500

57

PIN-GRV .188X1.25 TP A

Part# 05804500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

03651700

58

ARM & HUB

Part# 03651700

OEM Warranty Repair Part for Ariens

Not available

05520600

59

BSHG-FLG .502X1X.750

Part# 05520600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

03651800

60

SHAFT - PEDAL

Part# 03651800

OEM Warranty Repair Part for Ariens

Not available

03650600

61

PEDAL - FORWARD

Part# 03650600

OEM Warranty Repair Part for Ariens

Not available

07401600

62

SCR-TAP .375-16X .50 HWH PL TR

Part# 07401600 (Superseded to 07412900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

07524000

63

COVER - PEDAL - FORWARD

Part# 07524000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

07524400

64

COVER - PEDAL - REVERSE

Part# 07524400

OEM Warranty Repair Part for Ariens

Not available

03650700

65

PEDAL - REVERSE

Part# 03650700

OEM Warranty Repair Part for Ariens

Not available

06702000

66

PIN-HAIR INT .08X.18X1.18

Part# 06702000 (Superseded to 06713500)

OEM Warranty Repair Part for Ariens

Not available
