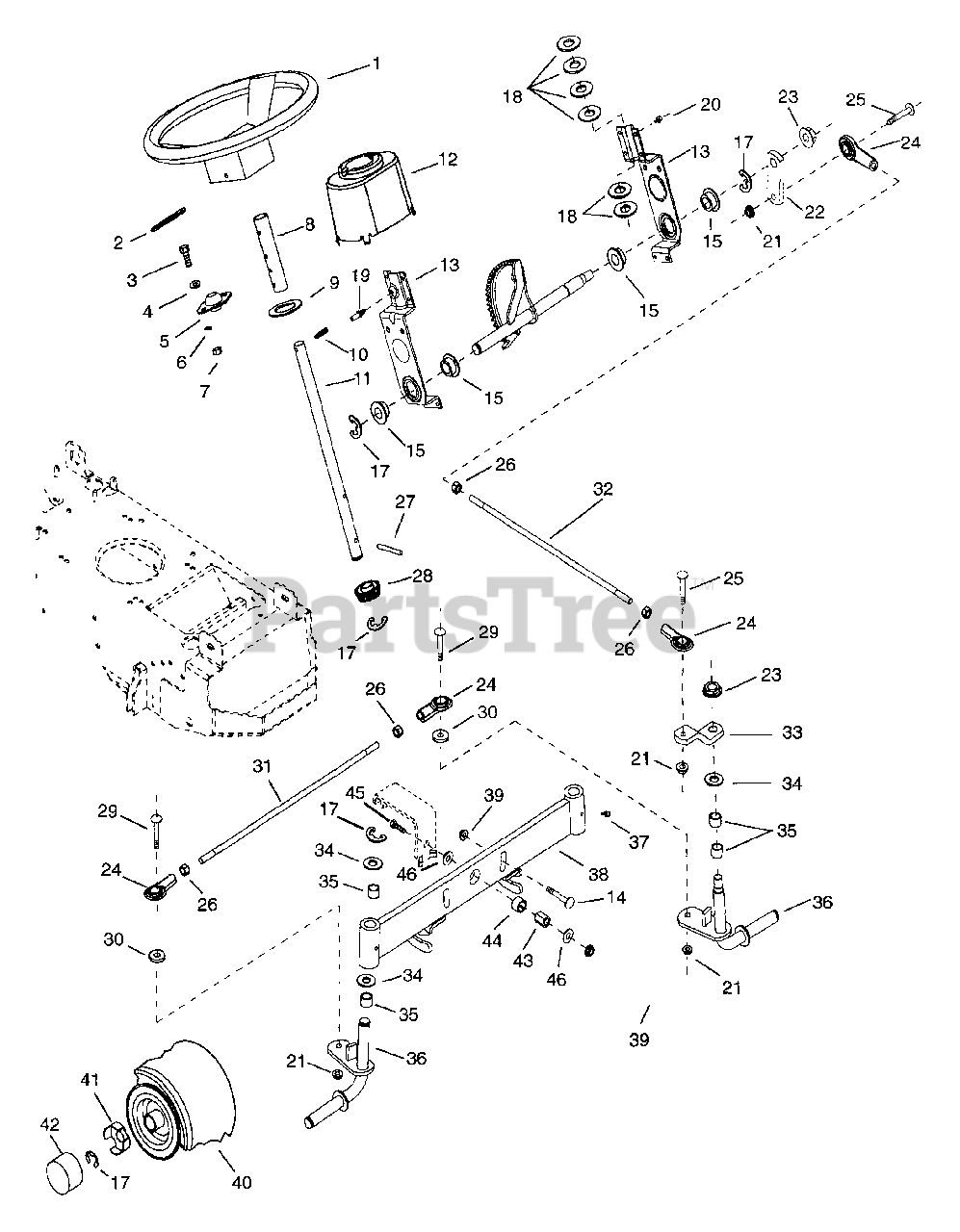

936020 (1640 H) - Ariens Sierra 40" Yard Tractor, 16hp Tecumseh, Hydro (SN: 000101 - 000300) > Parts Diagrams (11) > Steering

  • Title
03600600

1

STEERING WHEEL 13"

Part# 03600600 (Superseded to 03671200)

OEM Warranty Repair Part for Ariens

Not available

05803700

2

PIN-ROLL .250X1.75

Part# 05803700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05913500

3

BLT-HEX .31-18X.75 PL GR5

Part# 05913500 (Superseded to 05947000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06400700

4

WSHR-FL-STL.312X.734X.065PL

Part# 06400700 (Superseded to 06435800)

OEM Warranty Repair Part for Ariens

Not available

05402500

5

BRG-FLG .751X2 HOLESX.81

Part# 05402500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

06300300

6

WSHR-LK .312X.097 PL HVY

Part# 06300300 (Superseded to 06307400)

OEM Warranty Repair Part for Ariens

Not available

06501500

7

NUT-HEX .312-18

Part# 06501500 (Superseded to 06529200)

OEM Warranty Repair Part for Ariens

Not available

03603100

8

TUBE .754 X .999 X 5.00

Part# 03603100

OEM Warranty Repair Part for Ariens

Not available

06406200

9

WSHR-FL-STL .754X1.125X.062 PL

Part# 06406200 (Superseded to 06441400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

05808400

10

PIN-ROLL .250X1.000

Part# 05808400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

03351700

11

COLUMN, STEERING

Part# 03351700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $98.16

03649600

12

CONE- STEERING COLUMN

Part# 03649600

OEM Warranty Repair Part for Ariens

Not available

03351600

13

BRACKET, STEERING GEAR

Part# 03351600 (Superseded to 53408100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $292.68

05903800

14

BLT-HEX .38-16X1.25 GR5

Part# 05903800 (Superseded to 05958000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05508000

15

BSHG-FLG .750X1.093X.625X1.375

Part# 05508000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

03493500

16

GEAR, STEERING

Part# 03493500 (Superseded to 03669600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $111.74

05707400

17

RG-RTNG-EXT .750X.050

Part# 05707400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06404800

18

WSHR-FL-STL .755X1.375X.062 PL

Part# 06404800 (Superseded to 06441500)

OEM Warranty Repair Part for Ariens

Not available

07012600

19

FTG-LUBE .25-28X.256 YWZC

Part# 07012600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07401500

20

SCR-TAP .250-20X.37 HWH PL TR

Part# 07401500 (Superseded to 07411600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06503900

21

NUT-LK-CTR .375-16 GR A PL

Part# 06503900 (Superseded to 06529600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03351800

22

ARM, STEERING ROD

Part# 03351800

OEM Warranty Repair Part for Ariens

Not available

06529100

23

NUT-LK .563-18 GR 5

Part# 06529100 (Superseded to 06538000)

OEM Warranty Repair Part for Ariens

Not available

03563100

24

ROD END, .38 RH

Part# 03563100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $24.54

07006300

25

BLT-BTHD .38-16X1.25 GR5

Part# 07006300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06500500

26

NUT .375-24 PL

Part# 06500500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

02913300

27

PIN .249X1.125 DRIV-LOK SP

Part# 02913300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

02902100

28

PINION GEAR-STEERING

Part# 02902100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.84

05916100

29

BLT-HEX .38-16X1.75 PL GR5

Part# 05916100 (Superseded to 05958500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05522100

30

BSHG-SLV .377X.624X.370

Part# 05522100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

03647900

31

ROD - TIE

Part# 03647900 (Superseded to 03668500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $51.37

03648000

32

LINK - DRAG

Part# 03648000 (Superseded to 03668600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $55.84

03646700

33

ARM - STEERING SPINDLE

Part# 03646700 (Superseded to 03664300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $47.29

06401700

34

WSHR-FL-STL .755X1.375X.093

Part# 06401700 (Superseded to 06441500)

OEM Warranty Repair Part for Ariens

Not available

05505700

35

BSHG-SLV .750X.814X .750 BRZ

Part# 05505700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

03646400

36

SPINDLE - L.H.

Part# 03646400 (Superseded to 03664400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $135.22

03646500

36

SPINDLE RH

Part# 03646500 (Superseded to 03664500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $122.92

02209300

37

SPIN DRIVE ZERK FITTING

Part# 02209300 (Superseded to 07012600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

03646600

38

AXLE, FRONT

Part# 03646600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $100.56

06513500

39

NUT-LK-NYL .375-16 PL

Part# 06513500 (Superseded to 06535800)

OEM Warranty Repair Part for Ariens

Not available

07136500

40

T/WHL ASSY 15X6.00-6

Part# 07136500 (Superseded to 07149400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $96.09

07136600

40

RIM

Part# 07136600 (Superseded to 07149500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $94.19

05520700

40

BSHG .75 BORE

Part# 05520700 (Superseded to 05434900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

07109900

40

TIRE

Part# 07109900

OEM Warranty Repair Part for Ariens

Not available

03516900

41

SPINDLE CUP

Part# 03516900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.39

00337700

42

HUB CAP

Part# 00337700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05522700

43

BSHG-SLV .377X.623X.775 HEX

Part# 05522700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

05522000

44

BSHG-SLV .626X1.000X.524 HEX

Part# 05522000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.80

05916100

45

BLT-HEX .38-16X1.75 PL GR5

Part# 05916100 (Superseded to 05958500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06407500

46

WSHR-FL-STL .390X1.500X.125

Part# 06407500 (Superseded to 06441700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30
