936020 (1640 H) - Ariens Sierra 40" Yard Tractor, 16hp Tecumseh, Hydro (SN: 000301 & Above) Rear Wheel & Hydro Drive Parts Diagram

Sierra 40" Yard Tractor, 16hp Tecumseh, Hydro

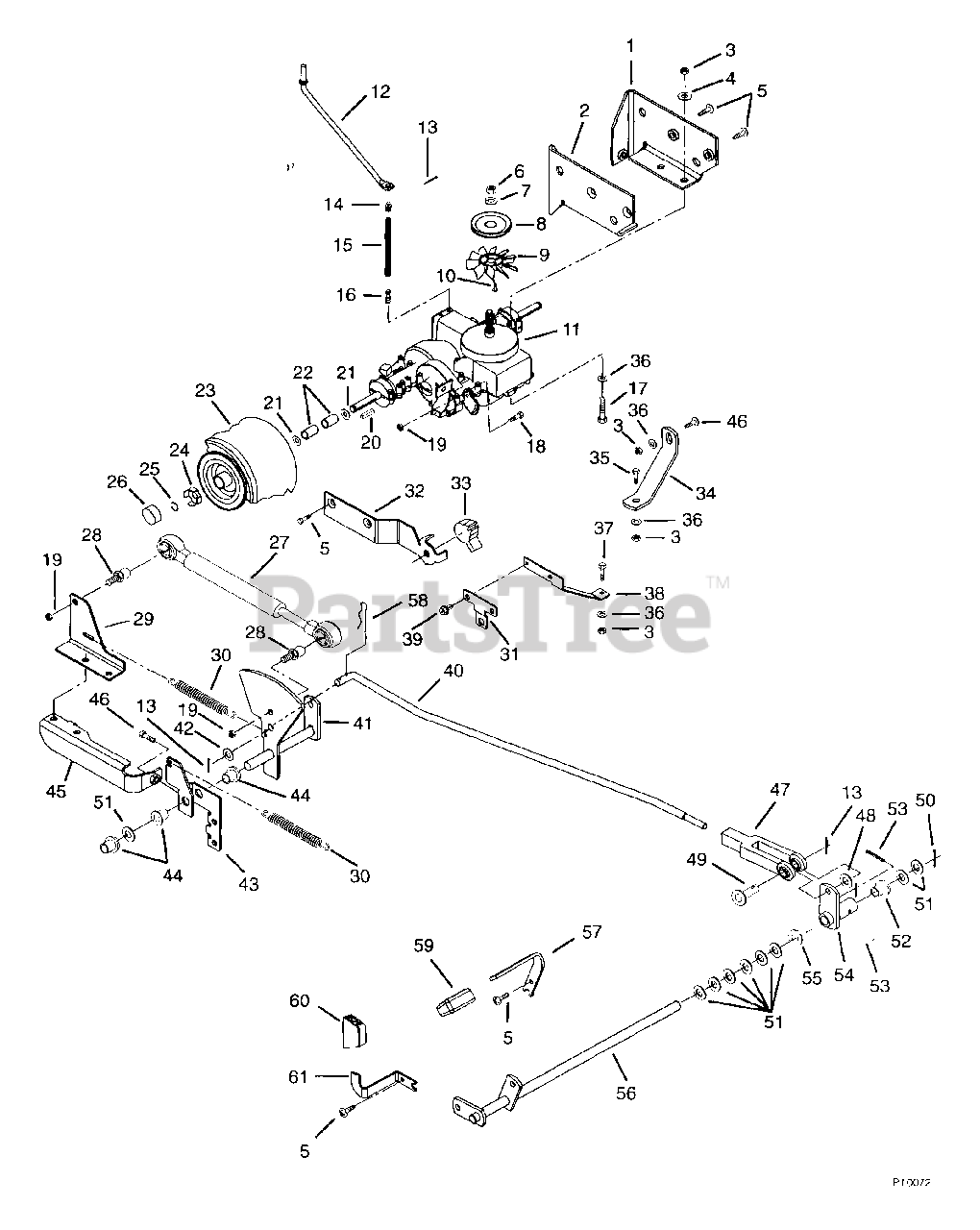

Rear Wheel & Hydro Drive Parts Diagram

  • Title

1

Ariens 03645900

MOUNT - TRANS. LH

$

$

Not available

2

Ariens 03643900

MOUNT - TRANS. RH

$

$

Not available

3

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

4

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 07402200

SCR-TAP .375-16X.75 HWH PL TR
(Superseded to 07415400)

$1.99

$

In Stock, Qty 20+

0

6

Ariens 06504400

NUT-JAM .50-20 PL
(Superseded to 06539500)

$2.99

$

Usually ships in 4-12 days

0

7

Ariens 06305100

WSHR-LK .50 REG.
(Superseded to 06307300)

$1.49

$

In Stock, Qty 10

0

8

Ariens 07321400

SHEAVE - TRANSAXLE
(Superseded to 01569100)

$58.99

$

In Stock, only 1 left!

0

9

Ariens 03570000

FAN

$36.99

$

In Stock, only 2 left!

0

10

Ariens 07410800

SCR-TAP 10-32X.62 HWH PL T

$

$

Not available

11

Ariens 03648800

TRANSAXLE- HYDRO #325-0750
(Superseded to 03668900)

$

$

Not available

12

Ariens 03647400

ROD - TRANS. DISCONNECT

$

$

Not available

13

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

14

Ariens 07026400

CAP-VENT .50

$17.99

$

In Stock, only 2 left!

0

15

Ariens 03635100

HOSE- VENT .50ID X 7.50LONG

$

$

Not available

16

Ariens 07026300

FTG-STR .50 O-RING

$26.99

$

In Stock, only 2 left!

0

17

Ariens 05916300

BLT-HEX .31-18X2.50 PL GR5
(Superseded to 05952600)

$1.99

$

In Stock, Qty 20+

0

18

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.99

$

In Stock, Qty 20+

0

19

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

20

Ariens 06601900

KEY-SQ .188X2.0X.188 SAE 8630

$

$

Not available

21

Ariens 06404800

WSHR-FL-STL .755X1.375X.062 PL
(Superseded to 06441500)

$3.99

$

In Stock, Qty 20+

0

22

Ariens 05510400

BSHG-SLV .750X1.125X1.062

$

$

Not available

23

Ariens 07126900

T/WHL ASSY 20X8.00-8

$

$

Not available

23

Ariens 07133100

RIM
(Superseded to 07153600)

$

$

Not available

23

Ariens 07133200

TIRE 20X10-8 2P TS TL

$112.99

$

Usually ships in 4-12 days

0

24

Ariens 03516900

SPINDLE CUP

$19.99

$

In Stock, only 1 left!

0

25

Ariens 05707400

RG-RTNG-EXT .750X.050

$2.99

$

Usually ships in 4-12 days

0

26

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

27

Ariens 03652100

DAMPER - HYDRAULIC

$54.99

$

Usually ships in 4-12 days

0

28

Ariens 03652200

STUD- BALL

$3.99

$

In Stock, Qty 20+

0

29

Ariens 03650900

ANCHOR - SPRING - TOP

$

$

Not available

30

Ariens 08320200

SG-TENS .085X.60X5.13 WLD8.3

$40.99

$

In Stock, only 4 left!

0

31

Ariens 03664900

SUPPORT - SHIFT ARM

$

$

Not available

32

Ariens 03664700

MOUNT - MAGNET

$

$

Not available

33

Ariens 03359700

MAGNET

$

$

Not available

34

Ariens 03654700

STRAP - TORQUE L.H.

$

$

Not available

35

Ariens 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

$1.99

$

In Stock, Qty 6

0

36

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 05916900

BLT-HEX .31-18X2.25 PL GR5
(Superseded to 05963700)

$1.99

$

In Stock, Qty 20+

0

38

Ariens 03664800

STRAP - TORQUE RH

$

$

Not available

39

Ariens 07413400

SCR-TAP .312-18X.50 HWH TR BL

$

$

Not available

40

Ariens 03666800

ROD - SHIFT

$

$

Not available

41

Ariens 03664600

ARM - SHIFT

$39.99

$

Usually ships in 4-12 days

0

42

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

43

Ariens 03665100

PIVOT - REVERSE

$

$

Not available

44

Ariens 05518000

BSHG-FLG .508X.645X.459X.75 NY

$

$

Not available

45

Ariens 03652300

ANCHOR - SPRING - BOTTOM

$

$

Not available

46

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.99

$

In Stock, Qty 20+

0

47

Ariens 07014700

YOKE, .312-24 X 2.25

$15.99

$

Usually ships in 4-12 days

0

48

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

$8.49

$

In Stock, Qty 8

0

49

Ariens 06811800

PIN-CLEV .312X.822 HDND PL
(Superseded to 06814000)

$3.99

$

Usually ships in 4-12 days

0

50

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

51

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

$2.99

$

In Stock, Qty 19

0

52

Ariens 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.99

$

In Stock, Qty 14

0

53

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, Qty 12

0

54

Ariens 03651700

ARM & HUB

$

$

Not available

55

Ariens 05520600

BSHG-FLG .502X1X.750

$9.99

$

In Stock, only 2 left!

0

56

Ariens 03651800

SHAFT - PEDAL

$

$

Not available

57

Ariens 03650600

PEDAL - FORWARD

$

$

Not available

58

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

59

Ariens 07524000

COVER - PEDAL - FORWARD

$35.99

$

Usually ships in 4-12 days

0

60

Ariens 07524400

COVER - PEDAL - REVERSE

$

$

Not available

61

Ariens 03650700

PEDAL - REVERSE

$

$

Not available
