936032 (YT 1742) - Ariens 42" Yard Tractor, 17hp Briggs & Stratton, Twin Hydro (SN: 000101 & Above) 42" Deck Front Mount Parts Diagram

42" Yard Tractor, 17hp Briggs & Stratton, Twin Hydro

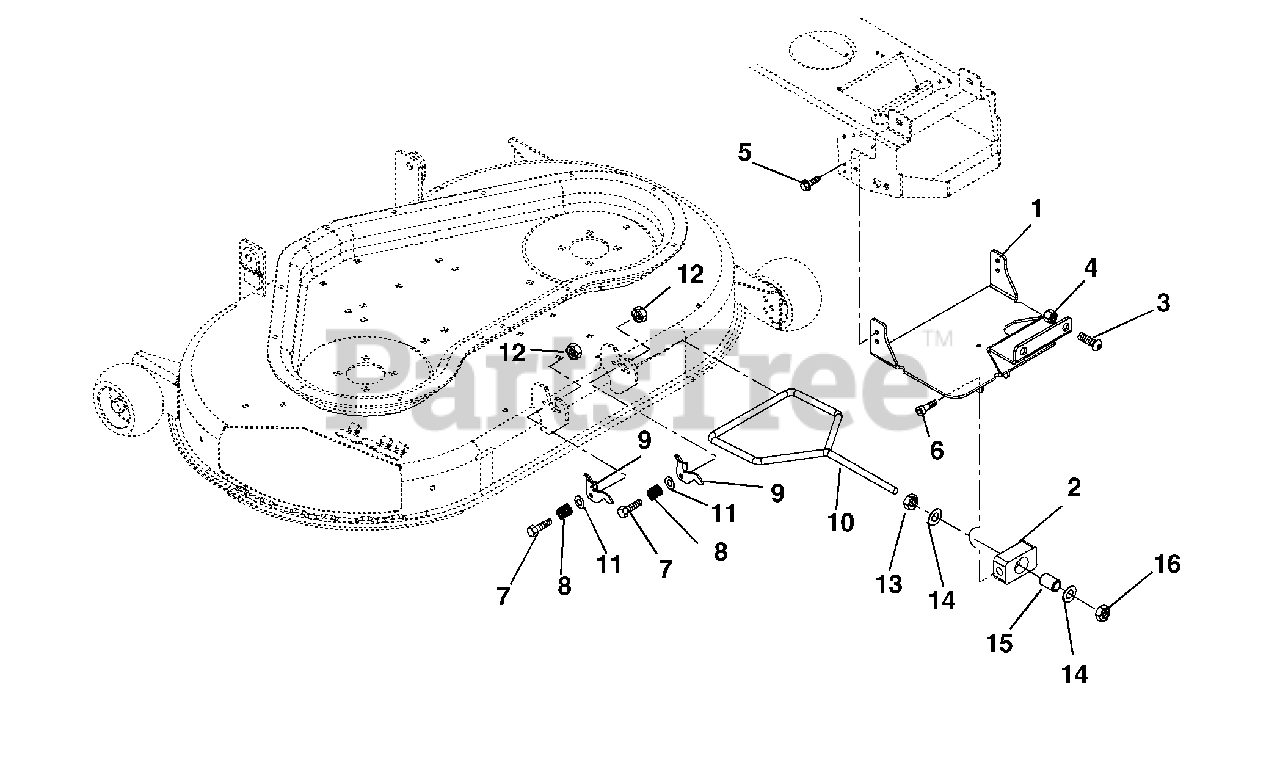

42" Deck Front Mount Parts Diagram

  • Title

1

Ariens 03686951

BRACKET, FRONT MOUNT (WLDMNT)

$

$

Not available

2

Ariens 03687000

MOUNT, 42" DECK FRONT

$

$

Not available

3

Ariens 05977100

BOLT,.5-13 X 1.0 BUTTON HEAD

$

$

Not available

4

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 15

0

5

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.99

$

In Stock, Qty 20+

0

6

Ariens 05977200

SCR-SKH .375X16X.50

$

$

Not available

7

Ariens 05947400

@BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.49

$

In Stock, Qty 7

0

8

Ariens 08321700

SG-COMP .058X.68X.75

$9.99

$

Usually ships in 4-12 days

0

9

Ariens 01583500

RETAINER, BRACE

$

$

Not available

10

Ariens 01584600

ROD, LINK

$35.99

$

In Stock, Qty 8

0

11

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

13

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 15

0

14

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, only 3 left!

0

15

Ariens 05533400

BSHG-SLV .500X.750X.780

$

$

Not available

16

Ariens 06540600

@NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0
