936032 (YT 1742) - Ariens 42" Yard Tractor, 17hp Briggs & Stratton, Twin Hydro (SN: 000101 & Above) 42" Mower Spindle Parts Diagram

42" Yard Tractor, 17hp Briggs & Stratton, Twin Hydro

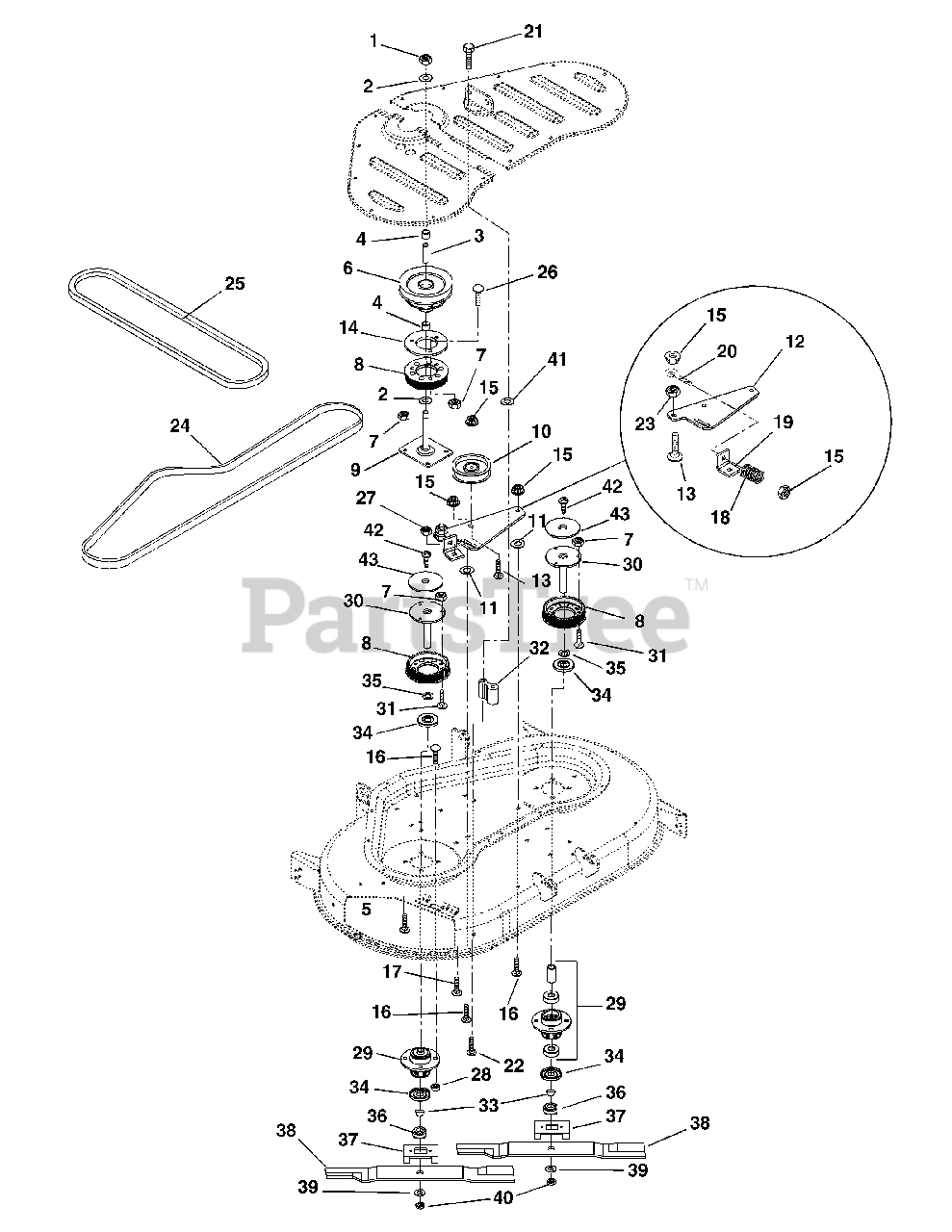

42" Mower Spindle Parts Diagram

  • Title

1

Ariens 06530300

@NUT-LK-NYL .625-18 YWZC
(Superseded to 06500936)

$4.99

$

In Stock, Qty 12

0

2

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 9

0

3

Ariens 03681400

SPACER, .640X.88X3.634

$48.99

$

Usually ships in 4-12 days

0

4

Ariens 05435100

BRG-BALL .625X1.375X.43

$16.99

$

In Stock, Qty 20+

0

5

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

6

Ariens 03682300

JACKSHAFT (SIERRA)

$

$

Not available

7

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 01583700

SPROCKET, DRIVE

$94.99

$

Usually ships in 4-12 days

0

9

Ariens 03681351

WELDMENT, PLATE MOUNT (SIERRA)
(Superseded to 03681300)

$

$

Not available

10

Ariens 07327100

PULLEY, IDLER 4.00

$38.99

$

In Stock, Qty 9

0

11

Ariens 06447200

WSHR-FL-STL .38"X1.5"X.188"

$9.99

$

In Stock, only 1 left!

0

12

Ariens 01583200

ARM, BELT ADJUSTMENT

$67.99

$

Usually ships in 4-12 days

0

13

Ariens 06223800

@BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$4.99

$

In Stock, only 1 left!

0

14

Ariens 03692000

SPACER, SPROCKET

$38.99

$

Usually ships in 4-12 days

0

15

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

17

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, only 1 left!

0

18

Ariens 08320900

SG-COMP .187X.56X1.62

$5.49

$

In Stock, Qty 6

0

19

Ariens 01583300

BRACKET, BELT ADJUSTMENT

$

$

Not available

20

Ariens 07030000

BLT-EYE .375-16X2.50 YWZC

$8.49

$

In Stock, Qty 10

0

21

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

22

Ariens 07050000

BLT-SERHFWH .375-16X1.25 YWZC
(Superseded to 07001816)

$4.99

$

Usually ships in 4-12 days

0

23

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

24

Ariens 07237500

COG-BELT X8M

$64.99

$

In Stock, Qty 7

0

25

Ariens 07220500

V-BELT, HA-RAW EDGE

$38.99

$

Usually ships in 4-12 days

0

26

Ariens 06219200

@BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$4.99

$

Usually ships in 4-12 days

0

27

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 01583800

ASSEMBLY, SPINDLE HOUSING

$116.99

$

In Stock, Qty 11

0

30

Ariens 01582400

WELDMENT, SPINDLE SHAFT

$174.99

$

In Stock, Qty 7

0

31

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

32

Ariens 03681600

SUPPORT, LIFT BRACKET

$

$

Not available

33

Ariens 06604200

KEY-WDRF .188X.625X.31 SAE9MOD
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 00341900

BEARING SLINGER

$23.99

$

In Stock, Qty 13

0

35

Ariens 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, Qty 20+

0

36

Ariens 01582100

HUB, RETAINER

$45.99

$

In Stock, Qty 7

0

37

Ariens 01582200

TRAY, BLADE

$23.99

$

In Stock, only 1 left!

0

38

Ariens 01584500

BLADE, 22"

$31.99

$

In Stock, Qty 8

0

39

Ariens 06310300

@WSHR-LK .75X.188 REG YWZC

$1.99

$

In Stock, Qty 14

0

40

Ariens 06537700

NUT-JAM .75-10 YWZC

$2.99

$

In Stock, Qty 20+

0

41

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

42

Ariens 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

43

Ariens 03695500

RETAINER, BELT

$20.99

$

Usually ships in 4-12 days

0
