936036 (YT 2548) - Ariens 48" Yard Tractor, 25hp Briggs & Stratton, Twin Hydro (SN: 000101 & Above) Exhaust Parts Diagram

48" Yard Tractor, 25hp Briggs & Stratton, Twin Hydro

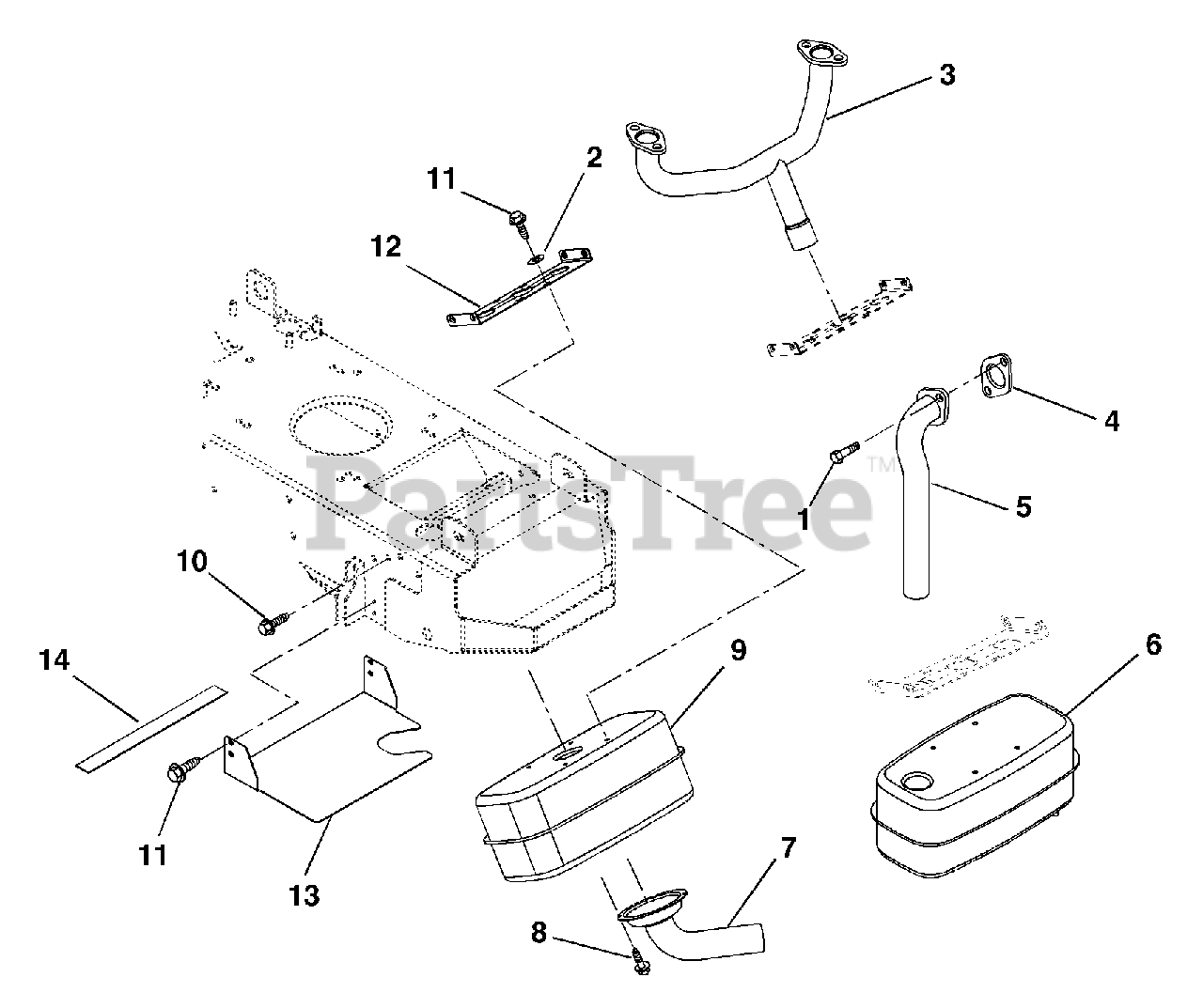

Exhaust Parts Diagram

  • Title

1

Ariens 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

Note: (034)

$2.99

$

In Stock, only 3 left!

0

2

Ariens 06442300

@WSHR-FL-STL.250X.56X.049 YWZC

$2.49

$

Usually ships in 4-12 days

0

3

Ariens 03673600

PIPE, EXHAUST INTEK V TWIN

Note: (036)

$93.99

$

Usually ships in 4-12 days

0

4

Ariens 03652700

GASKET B&S#272293

Note: (036)

$10.99

$

Usually ships in 4-12 days

0

5

Ariens 03656100

PIPE - EXHAUST

Note: (036)

$

$

Not available

6

Ariens 03654400

MUFFLER W/DEFLECTOR

Note: (036)

$152.99

$

Usually ships in 4-12 days

0

7

Ariens 03656300

DEFLECTOR - EXHAUST

Note: (036)

$63.99

$

Usually ships in 4-12 days

0

8

Ariens 07414500

SCR-TAP 8-32X.38 SL HWH YWZC

Note: (036)

$2.49

$

Usually ships in 4-12 days

0

9

Ariens 03654300

MUFFLER - EXHAUST

Note: (036)

$173.99

$

In Stock, only 2 left!

0

10

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

11

Ariens 07414600

@SCR-TAP 12-24X.75 HWH YWZC

Note: (034)

$3.99

$

Usually ships in 4-12 days

0

Ariens 07414600

@SCR-TAP 12-24X.75 HWH YWZC

Note: (036)

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 03648600

BRACKET - MUFFLER

$

$

Not available

13

Ariens 03676951

SHIELD, HEAT
(Superseded to 53407200)

Note: (036)

$

$

Not available

14

Ariens 03658900

HEAT SHIELD- FABRIC 1X10.75

$

$

Not available
