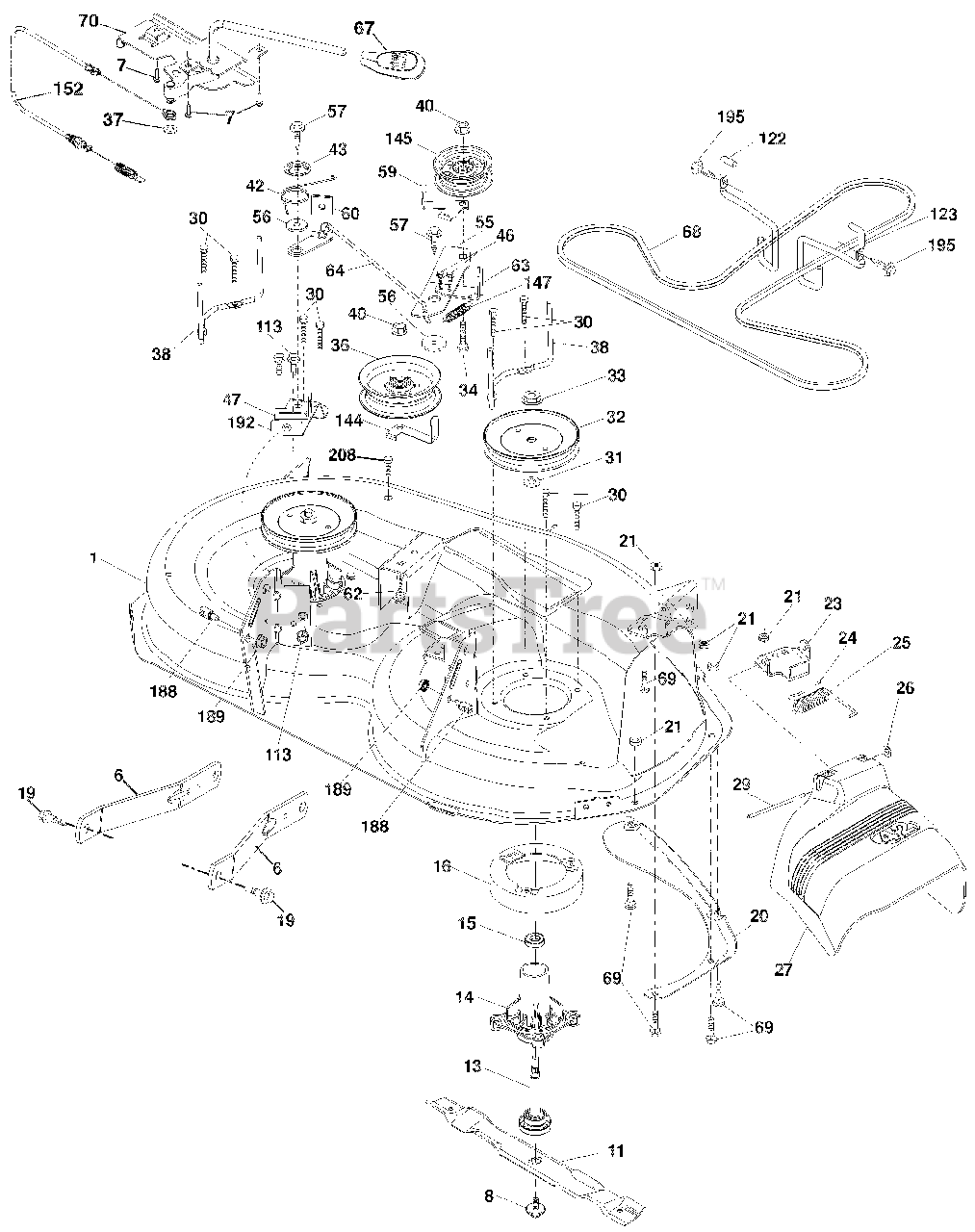

936037 (960460001-00) - Ariens 42" Lawn Tractor, 18hp Kohler, Gear Mower Deck Parts Diagram

42" Lawn Tractor, 18hp Kohler, Gear

Mower Deck Parts Diagram

  • Title

1

Ariens 21546513

DECK.WELDMENT.42"N/GWB

$

$

Not available

1

Ariens 21546672

DECK.SVC.42"HP.CC.NGWB.TX.431

$665.99

$

Usually ships in 4-12 days

0

6

Ariens 21546347

ARM.SUSPENSION.MOWER.REAR.LD

$

$

Not available

7

Ariens 21546675

Screw

$7.49

$

Usually ships in 4-12 days

0

8

Ariens 21546301

BOLT/WASHER ASM.7/16-20.UNF

$13.99

$

In Stock, Qty 20+

0

11

Ariens 21546095

BLADE.MOWER.42"HI LIFT PREMIUM

$37.99

$

In Stock, Qty 20+

0

13

Ariens 21546300

SHAFT ASM.MNDRL.N/GREASEABLE38
(Superseded to 21549012)

$112.99

$

In Stock, Qty 20+

0

14

Ariens 21546238

HOUSING.MANDREL.4PT.SERVICE
(Superseded to 21549012)

$112.99

$

In Stock, Qty 20+

0

15

Ariens 21546046

BEARING.BALL.MANDREL
(Superseded to 05418800)

$10.99

$

In Stock, Qty 20+

0

16

Ariens 21546195

STRIPPER.MANDREL.DECK

$11.99

$

Usually ships in 4-12 days

0

19

Ariens 21546411

BOLT.SHOULDER

$13.99

$

In Stock, Qty 20+

0

20

Ariens 21546144

BAFFLE.VORTEX.42.STD/HEAVY DTY

$

$

Not available

21

Ariens 21546784

Nut, Hex, Crownlock 5/16-18

$1.99

$

Usually ships in 4-12 days

0

23

Ariens 21546296

BRACKET.DEFLECTOR.38/42"2005

$10.99

$

In Stock, Qty 20+

0

24

Ariens 21546025

CAP.SLEEVE..80X.112.BLK.MOWER

$11.99

$

In Stock, Qty 20+

0

25

Ariens 21546416

SPRING.TORSION.DFL.38/42/46.GR

$17.99

$

In Stock, Qty 18

0

26

Ariens 21546045

NUT.PUSH.PHOS.& OIL

$8.49

$

In Stock, Qty 20+

0

27

Ariens 21546305

SHIELD.DEFLECTOR.MOWER 42"BLK

$

$

Not available

29

Ariens 21546081

ROD.HINGE.42/46"

$15.99

$

Usually ships in 4-12 days

0

30

Ariens 21546192

SCREW.THD ROLL.DOD PT.HEX
(Superseded to 21548816)

$11.99

$

In Stock, Qty 20+

0

31

Ariens 21546253

WASHER.SPACER.MANDREL

$7.49

$

In Stock, Qty 20+

0

32

Ariens 21546446

PULLEY.MANDREL.5.438 PD.42"

$23.99

$

In Stock, Qty 20+

0

32

Ariens 21546299

MANDREL ASM.SUB.N-GRS.4 BOLT
(Superseded to 21549012)

$112.99

$

In Stock, Qty 20+

0

32

pulley/nut/washer and blade bolt/washers not included)

Note: pulley/nut/washer and blade bolt/washers not included)

$

$

Not available

33

Ariens 21546554

NUT.FLANGE.LOCK.TOP

$9.49

$

Usually ships in 4-12 days

0

34

Ariens 21546765

BOLT.CARR.SH.3/8-16X1-1/2.GR5
(Superseded to 06224200)

$4.99

$

In Stock, Qty 20+

0

36

Ariens 21546440

PULLEY.IDLER.4.50.RAW

$46.99

$

In Stock, Qty 20+

0

37

Ariens 21546284

WASHER.13/32 X 13/16 X 16 GA.

$

$

Not available

38

Ariens 21546487

KEEPER.BELT.LH.MANDREL.42/46"
(Superseded to 21547367)

$7.99

$

In Stock, Qty 20+

0

40

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.99

$

In Stock, Qty 18

0

42

Ariens 21546478

SPRING.TORSION.BRAKE

$

$

Not available

43

Ariens 21546423

SPRING.TORSION.RETAINER

$

$

Not available

46

Ariens 21546091

SCREW.THD.ROLL.1/4-20 X 5/8
(Superseded to 07400135)

$2.99

$

In Stock, Qty 20+

0

47

Ariens 21546421

BRACKET.CLUTCH.CABLE

$

$

Not available

55

Ariens 21546419

IDLER.ARM

$

$

Not available

56

Ariens 21546482

SPACER.RETAINER

$7.99

$

In Stock, Qty 14

0

57

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$

$

Not available

59

Ariens 21546103

GUARD.TUV.IDLER

$15.99

$

Usually ships in 4-12 days

0

60

Ariens 21546429

ARM.BRAKE.MOWER.42"

$17.99

$

In Stock, Qty 8

0

62

Ariens 21546767

BOLT.RD.HD.SQ.NK.3/8-16UNC X 2
(Superseded to 06203200)

$2.99

$

In Stock, Qty 20+

0

63

Ariens 21546499

ARM.BRAKE.MOWER

$40.99

$

In Stock, Qty 20+

0

64

Ariens 21546511

LINKAGE.BRAKE
(Superseded to 21547237)

$

$

Not available

67

Ariens 21546476

HANDLE.CLUTCH.CABLE.LT TEX.428

$

$

Not available

68

Ariens 21546422

BELT.DRIVE.100.97"

$43.99

$

In Stock, Qty 20+

0

69

Ariens 21546770

BOLT.RDHD.SQNK.5/16-18 X 5/8
(Superseded to 596136401)

$3.49

$

In Stock, Qty 20+

0

70

Ariens 21546474

CLUTCH ASM.MANUAL.LT.TEX

$118.99

$

Usually ships in 4-12 days

0

113

Ariens 21546179

BOLT.5/16-18HEX.WHS.HD.LCKSERR

$10.99

$

In Stock, Qty 20+

0

122

Ariens 21546424

KEEPER.BELT.ENGINE.LH.LT.TEX

$6.99

$

In Stock, Qty 20+

0

123

Ariens 21546426

KEEPER.BELT.ENGINE.RH.LT.TEX

$7.99

$

In Stock, Qty 16

0

144

Ariens 21546489

KEEPER.BELT.MOWER
(Superseded to 21546490)

$

$

Not available

145

Ariens 21546308

PULLEY.IDLER 48"PRIMARY

$58.99

$

In Stock, Qty 20+

0

147

Ariens 21546579

SPRING.RETURN

$

$

Not available

152

Ariens 21546635

CABLE.CLUTCH.MANUAL.W/SPR.

$37.99

$

In Stock, Qty 10

0

188

Ariens 21546343

STUD.FASTNER.W/'D'ANTI-ROTATIO

$9.99

$

Usually ships in 4-12 days

0

189

Ariens 21546789

Nut, Lock Hex Flange 5/16-18 u
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

192

Ariens 21546428

BRACKET.BRAKE.STAND.LH

$

$

Not available

195

Ariens 21546181

SCREW.HEXWSH THDR3/8-16X3/4.BL
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

208

Ariens 21546208

SCREW.THDROL.3/8-16X1/2.TYT.BL

$8.49

$

Usually ships in 4-12 days

0
