936043 (960460018-00) - Ariens 54" Lawn Tractor, 25hp Kohler, Hydro Decals Parts Diagram

54" Lawn Tractor, 25hp Kohler, Hydro

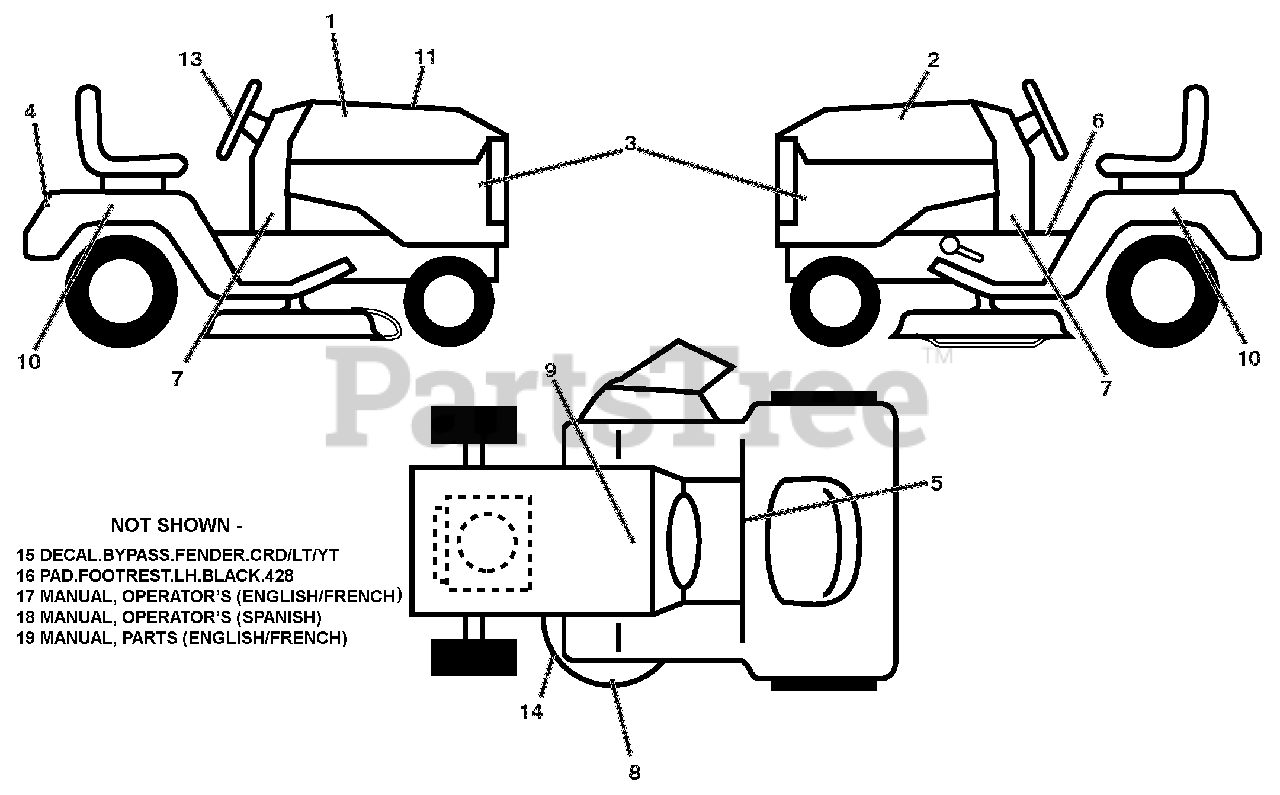

Decals Parts Diagram

  • Title

1

Ariens 21547361

DECAL.HOOD.RH.PRECISION.ARIENS

$

$

Not available

2

Ariens 21547362

DECAL.HOOD.LH.PRECISION.ARIENS

$

$

Not available

3

Ariens 21547368

DECAL.SDPNL.PWRDBY KOHL.ARIENS

$

$

Not available

4

Ariens 21547145

Decal, Fender
(Superseded to 21547668)

$

$

Not available

5

Ariens 21546695

Decal, Flag

$

$

Not available

6

Ariens 21547338

DECAL, WARNING START INST.

$8.49

$

In Stock, only 1 left!

0

7

Ariens 21547375

DECAL.DASH.LOWER.

$

$

Not available

8

Ariens 21546213

DECAL.MOWER.CAUTION.TENSION.AR
(Superseded to 21548211)

$

$

Not available

9

Ariens 21546109

DECAL.BAT.DAN/POI P/L SYM.WPN

$

$

Not available

10

Ariens 21546693

DECAL.FENDER.SIDE.HYDRO.ARIENS

$

$

Not available

11

Ariens 21547374

DECAL, REPLACEMENT

$

$

Not available

13

Ariens 21547247

DECAL.WHEEL.STEER.ARIENS

$

$

Not available

14

Ariens 21546145

DECAL.V-BELT.SCH.42/46"MEC/ELE

$

$

Not available

15

Ariens 21546177

DECAL.BYPASS.FENDER.CRD/LT/YT

$

$

Not available

16

Ariens 21547395

PAD.FOOTREST.LH.BLACK.428

$

$

Not available

17

Ariens 21547271

OWNER'S MANUAL, ENG/FRE

Note: (ENGLISH/FRENCH)

$

$

Not available

18

Ariens 21547271

OWNER'S MANUAL, ENG/FRE

Note: (SPANISH)

$

$

Not available

19

Ariens 21547263

PARTS MANUAL

Note: (ENGLISH/FRENCH)

$

$

Not available
