936046 (960160021-00) - Ariens 42" Lawn Tractor, 17.5hp Briggs & Stratton, Gear Mower Lift Parts Diagram

42" Lawn Tractor, 17.5hp Briggs & Stratton, Gear

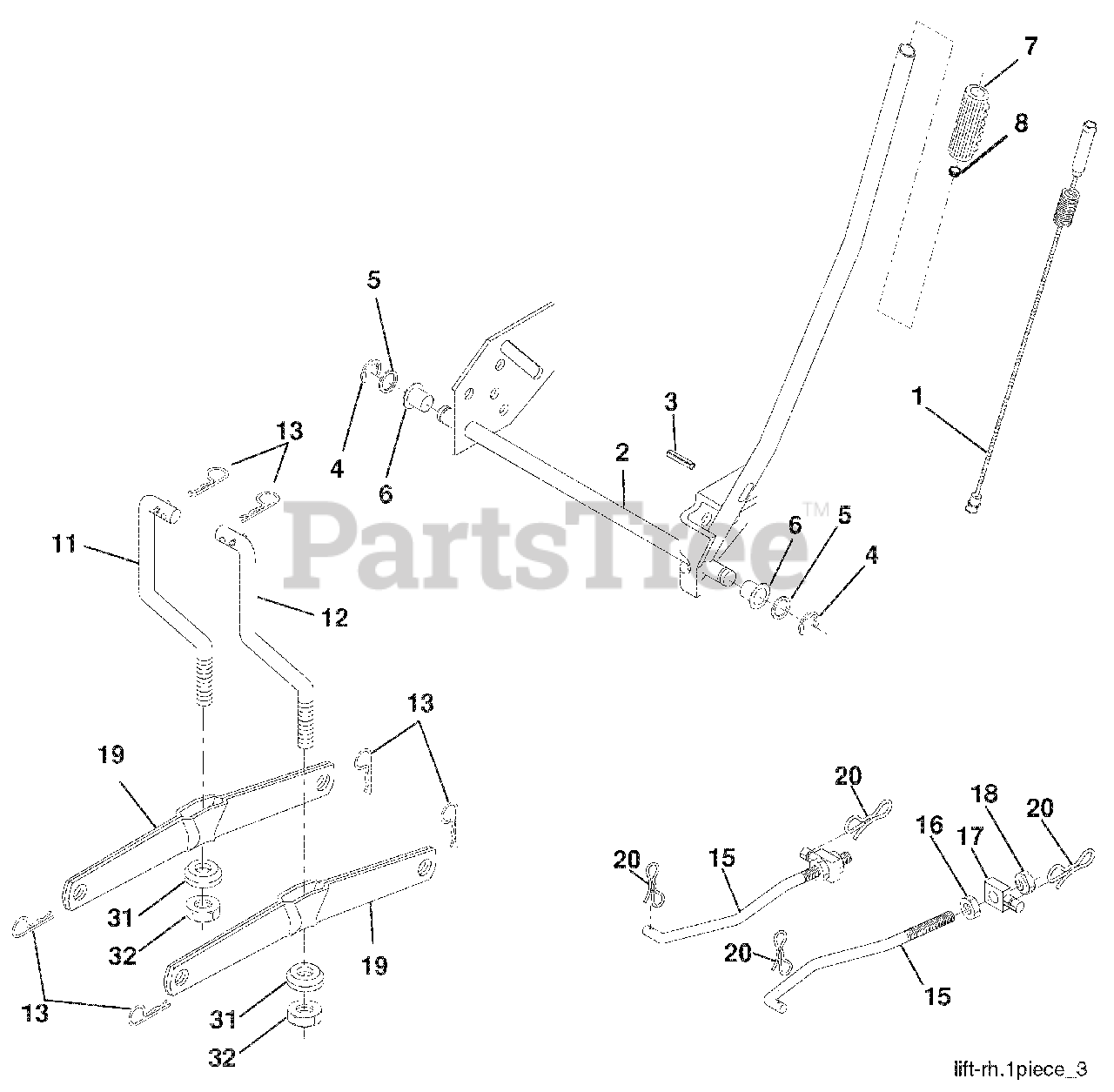

Mower Lift Parts Diagram

  • Title

1

Ariens 21547331

PLUNGER ASM LIFT LEVER

$

$

Not available

2

Ariens 21547294

SHAFT ASM LIFT RH

$

$

Not available

3

Ariens 21547385

PIN GROOVE 1 500 ZINC

$

$

Not available

4

Ariens 21547378

E RING #5133-62

$

$

Not available

5

Ariens 21547380

WASHER 21/32 X 1 X 21 GA.

$

$

Not available

6

Ariens 21546061

BEARING.NYLON.BLK..629 ID.

$

$

Not available

7

Ariens 21547380

WASHER 21/32 X 1 X 21 GA.

$

$

Not available

8

Ariens 21547392

BUTTON PLUNGER BLACK

$

$

Not available

11

Ariens 21547282

LINK LIFT LH FIXED LENGTH

$48.99

$

In Stock, Qty 8

0

12

Ariens 21547283

LINK LIFT RH FIXED LENGTH

$52.99

$

In Stock, only 3 left!

0

13

Ariens 21547170

Retainer Spring
(Superseded to 21547907)

$8.49

$

Usually ships in 4-12 days

0

15

Ariens 21547302

LINK FRONT

$

$

Not available

16

Ariens 21547381

NUT JAM HEX 1/2-13 UNC
(Superseded to 06529300)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 21547304

TRUNNION

$

$

Not available

18

Ariens 21547382

NUT LOCK W/WSH 1/2-13 UNC
(Superseded to 06540600)

$2.99

$

In Stock, Qty 7

0

19

Ariens 21547292

ARM SUSPENSION REAR

$

$

Not available

20

Ariens 21546322

PIN.COTTER.7/16.BOW TIE LOCK

$7.49

$

In Stock, Qty 20+

0

31

Ariens 21547299

BEARING PVT LIFT

$

$

Not available

32

Ariens 21546782

NUT.CROWNLOCK.3/8-24

$2.49

$

In Stock, Qty 20+

0
