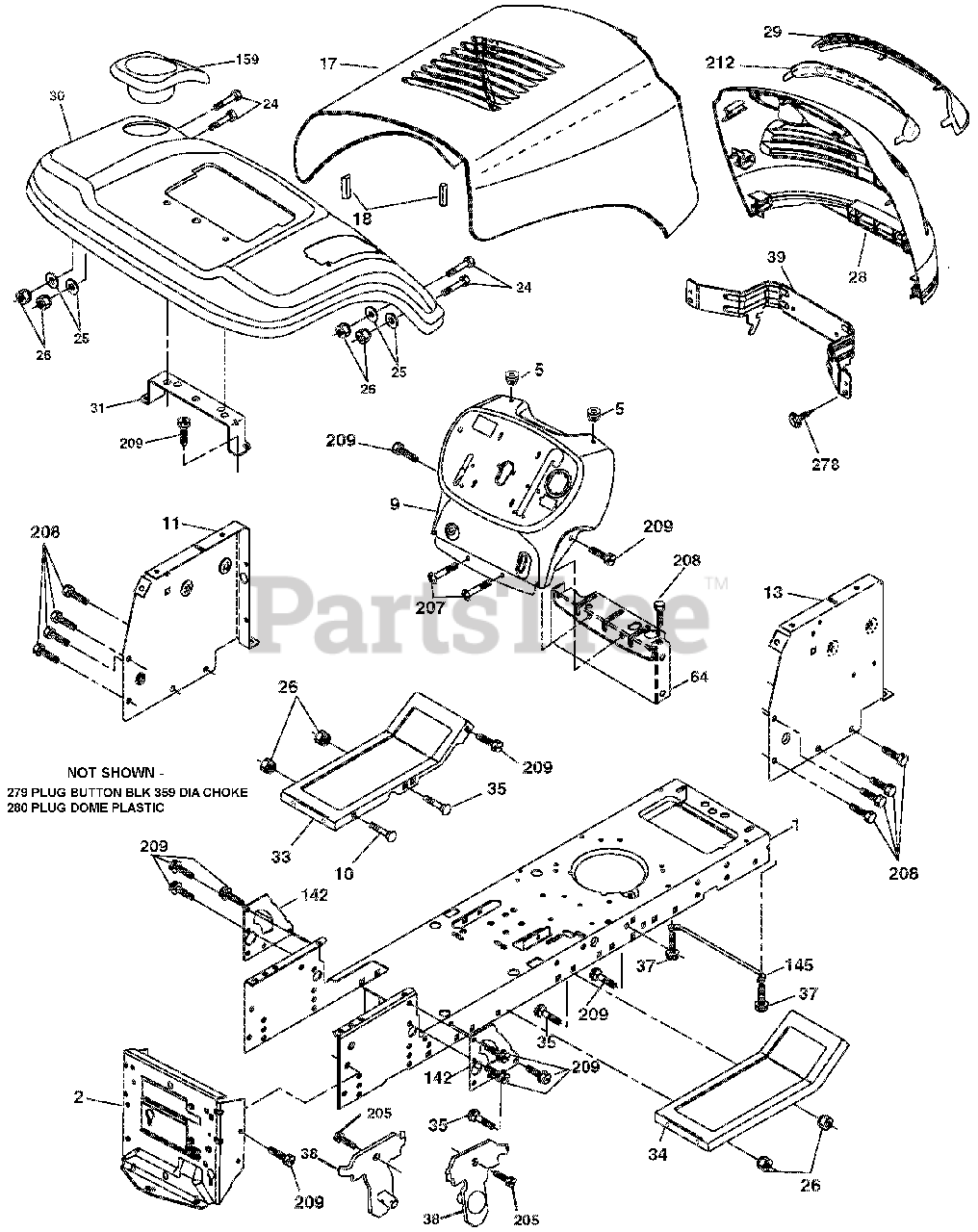

936046 (960160021-02) - Ariens 42" Lawn Tractor, 17.5hp Briggs & Stratton, Gear Chassis Parts Diagram

42" Lawn Tractor, 17.5hp Briggs & Stratton, Gear

Chassis Parts Diagram

  • Title

1

Ariens 21547035

Chassis

$

$

Not available

2

Ariens 21547036

Drawbar, Stretch

$

$

Not available

5

Ariens 21547037

Bumper, Hood/Dash

$7.99

$

Usually ships in 4-12 days

0

9

Ariens 21547038

Dash

$46.99

$

Usually ships in 4-12 days

0

10

Ariens 21547041

Panel Slkscr Dash RH
(Superseded to 21548119)

$22.99

$

Usually ships in 4-12 days

0

11

Ariens 21547040

Panel Dash LH

$15.99

$

Usually ships in 4-12 days

0

13

Ariens 21547041

Panel Slkscr Dash RH
(Superseded to 21548119)

$22.99

$

Usually ships in 4-12 days

0

17

Ariens 21547042

Hood

$124.99

$

In Stock, only 1 left!

0

18

Ariens 21546230

BUMPER.HOOD.LARGE. 1.75"

$18.99

$

In Stock, only 2 left!

0

24

Ariens 21547043

Bolt Fin Hex 3/8-16 unc x 1 Gr

$

$

Not available

25

Ariens 21546283

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 21546787

Locknut, Washer Insert 3/8-16
(Superseded to 06535800)

$3.49

$

In Stock, Qty 20+

0

28

Ariens 21547044

Grille
(Superseded to 21547891)

$

$

Not available

29

Ariens 21547045

Lens Grille Bar
(Superseded to 21547892)

$18.99

$

In Stock, Qty 9

0

30

Ariens 21547647

FENDER
(Superseded to 21547046)

$133.99

$

Usually ships in 4-12 days

0

31

Ariens 21547047

Bracket Fender Repl 109873X

$

$

Not available

33

Ariens 21547048

Footrest Pnt LH

$

$

Not available

34

Ariens 21547049

Footrest Pnt RH

$33.99

$

Usually ships in 4-12 days

0

35

Ariens 21547050

Bolt Rdhd Sht Sqnk 3/8-16 x 3/

$3.99

$

In Stock, only 1 left!

0

37

Ariens 21546199

SCREW.THDROL.5/16-18 X 1/2TYTT

$7.49

$

In Stock, only 1 left!

0

38

Ariens 21547051

Bracket Asm. Pivot Mower

$

$

Not available

39

Ariens 21547052

Bracket Pivot

$29.99

$

Usually ships in 4-12 days

0

64

Ariens 21547053

Dash Lower

$51.99

$

Usually ships in 4-12 days

0

142

Ariens 21547054

Plate Reinforcement

$

$

Not available

145

Ariens 21546636

ROD.PIVOT.HOOD

$

$

Not available

159

Ariens 21547055

Cupholder
(Superseded to 21547895)

$

$

Not available

205

Ariens 21547056

Screw Thdrol 3/8-16 x 1/2
(Superseded to 07412900)

$1.99

$

In Stock, Qty 15

0

207

Ariens 21547057

Screw 5/16-18 x 1/2
(Superseded to 07411500)

$1.99

$

In Stock, Qty 20+

0

208

Ariens 21546208

SCREW.THDROL.3/8-16X1/2.TYT.BL

$6.49

$

Usually ships in 4-12 days

0

209

Ariens 21546181

SCREW.HEXWSH THDR3/8-16X3/4.BL
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

212

Ariens 21547058

Insert Lens Reflect

$

$

Not available

278

Ariens 21546675

Screw

$

$

Not available

279

Ariens 21547059

Plug Button Blk 359 Dia Choke

$

$

Not available

280

Ariens 21547060

Plug Dome Plastic

$

$

Not available
