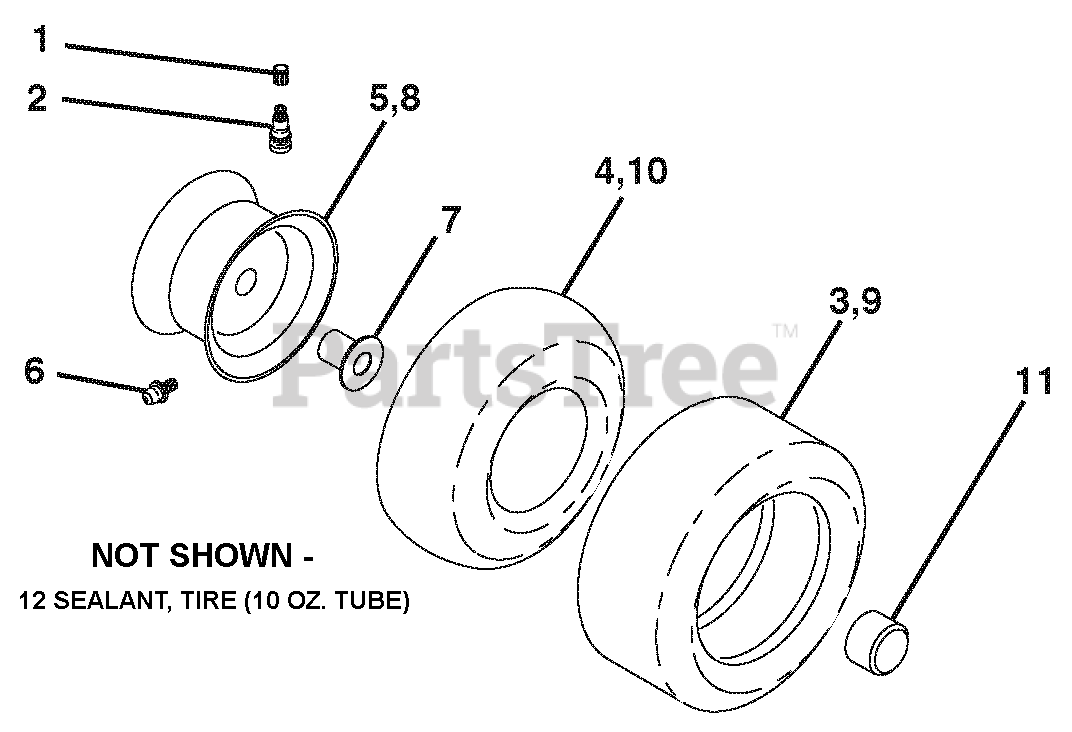

936046 (960160021-02) - Ariens 42" Lawn Tractor, 17.5hp Briggs & Stratton, Gear Wheels And Tires Parts Diagram

42" Lawn Tractor, 17.5hp Briggs & Stratton, Gear

Wheels And Tires Parts Diagram

  • Title

1

Ariens 21546747

CAP.VALVE.TIRE

$11.99

$

In Stock, Qty 20+

0

2

Ariens 21546751

STEM.VALVE

$13.99

$

In Stock, Qty 16

0

3

Ariens 21546034

TIRE.F.TS.15 X 6.0 - 6.SERVICE

$116.99

$

Usually ships in 4-12 days

0

4

Ariens 21546748

TUBE.INNER.FRONT.#35060

Note: (SERVICE ITEM ONLY)

$

$

Not available

5

Ariens 21546037

RIM ASM.6"FRONT.BLACK.SERVICE

Note: (W.GREY).643

$

$

Not available

6

Ariens 21546547

FITTING.GREASE

Note: (FRONT WHEEL ONLY)

$6.99

$

In Stock, Qty 16

0

7

Ariens 21546832

BEARING.FLANGE

Note: (FRONT WHEEL ONLY)

$18.99

$

In Stock, Qty 20+

0

8

Ariens 21546029

RIM ASM.8"REAR.BKACK.SERVICE

$160.99

$

Usually ships in 4-12 days

0

9

Ariens 21546685

TIRE.R.TS-LT.18X9.5-8.C.SERV.
(Superseded to 21547456)

$

$

Not available

10

Ariens 21546755

TUBE.REAR.9.5 X 8.SERVICE
(Superseded to 21547539)

Note: (SERVICE ITEM ONLY)

$

$

Not available

11

Ariens 21546023

CAP.HUB.AXLE.BLK.1.50 X 1.00
(Superseded to 21547547)

$12.99

$

In Stock, Qty 20+

0

12

Ariens 21546845

SEALANT, TIRE (10 OZ. TUBE)
(Superseded to 21549051)

Note: (10 OZ. TUBE)(NOT SHOWN)

$

$

Not available
