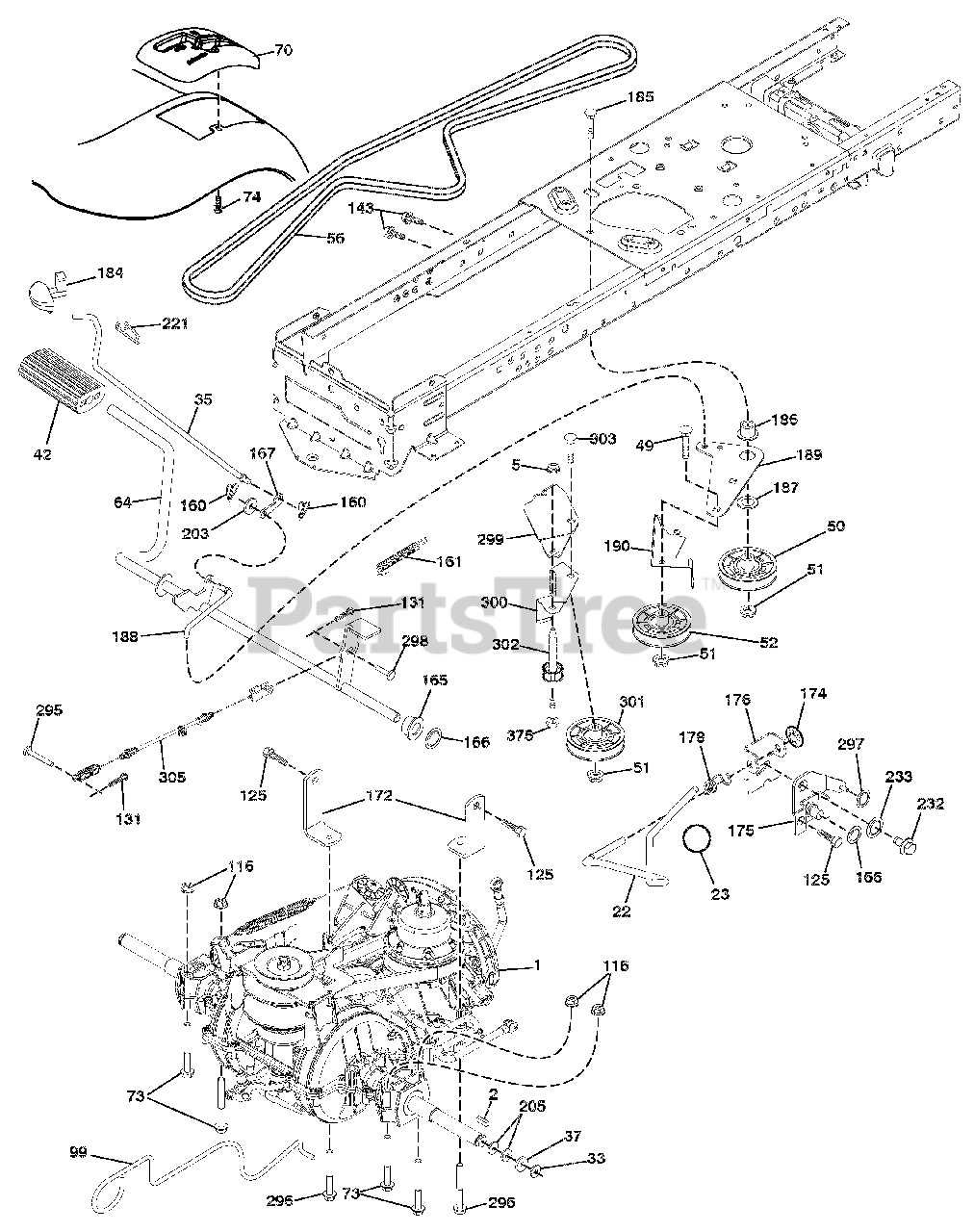

936049 (960460015-00) - Ariens 42" Lawn Tractor, 19hp Briggs & Stratton, Hydro Drive Parts Diagram

42" Lawn Tractor, 19hp Briggs & Stratton, Hydro

Drive Parts Diagram

  • Title

1

Ariens 21547259

TRANSAXLE, 415663

Note: (415663)(ORDER PARTS FROM TRANSAXLE MANUFACTURER)

$

$

Not available

2

Ariens 21546070

KEY.SQUARE.2.0 X .1845/.1865

$4.99

$

In Stock, Qty 10

0

5

Ariens 21546785

Nut, Hex, Crownlock 3/8-16

$3.99

$

Usually ships in 4-12 days

0

22

Ariens 21547221

Rod Shift

$40.99

$

Usually ships in 4-12 days

0

23

Ariens 21547222

Knob

$

$

Not available

33

Ariens 21546051

E-RING.#5133-75

$4.99

$

In Stock, Qty 20+

0

35

Ariens 21546453

ROD.BRAKE.PARKING.LT.TEX

$

$

Not available

37

Ariens 21546067

WASHER.25/32 X 1 1/4 X 16 GA.

$3.49

$

In Stock, Qty 20+

0

42

Ariens 21546831

COVER.PEDAL.BLK.ROUND
(Superseded to 21547538)

$6.49

$

In Stock, only 4 left!

0

49

Ariens 21546766

BOLT.RDHD.3/8-16UNCX1-3/4.GR5
(Superseded to 06200329)

$3.99

$

In Stock, only 1 left!

0

50

Ariens 21546331

IDLER.FLAT.910"OFFSET

$13.99

$

In Stock, Qty 20+

0

51

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0

52

Ariens 21546330

IDLER.V-GROOVE.910"OFFSET

$12.99

$

In Stock, Qty 20+

0

56

Ariens 21546422

BELT.DRIVE.100.97"

$30.99

$

In Stock, Qty 20+

0

64

Ariens 21546387

SHAFT ASM.PEDAL.BRAKE CONTROL

$

$

Not available

70

Ariens 21547215

Console

$

$

Not available

73

Ariens 21546798

BOLT.HEX.FLGHD.5/16-18.GR.5

$4.99

$

Usually ships in 4-12 days

0

74

Ariens 21546106

SCREW.HEX.WSH.HI-LO.1/4X1/2UNC

$5.99

$

Usually ships in 4-12 days

0

99

Ariens 21547216

Rod Bypass

$17.99

$

In Stock, only 1 left!

0

116

Ariens 21546789

Nut, Lock Hex Flange 5/16-18 u
(Superseded to 06530400)

$1.49

$

In Stock, only 4 left!

0

125

Ariens 21546180

SCREW.5/16-18X3/4.SMGML.TAP/BL
(Superseded to 21547490)

$12.99

$

In Stock, only 2 left!

0

131

Ariens 21547217

Pin Cotter 3/32/ x 3/4

$

$

Not available

143

Ariens 21546199

SCREW.THDROL.5/16-18 X 1/2TYTT

$6.49

$

In Stock, only 1 left!

0

160

Ariens 21546178

RETAINER.CLIP(M).DIA.290

Note: (M).DIA.290

$

$

Not available

161

Ariens 21546028

SPRING.RETURN.CLUTCH.6.75

$10.99

$

In Stock, Qty 20+

0

165

Ariens 21546393

BUSHING.SHAFT.BRAKE.HAND CONTR

$6.49

$

Usually ships in 4-12 days

0

166

Ariens 21547349

NUT PUSH .625

$6.49

$

In Stock, Qty 6

0

167

Ariens 21546608

LATCH.BRAKE.PARKING

$4.99

$

Usually ships in 4-12 days

0

172

Ariens 21547219

Strap Torque LH/RH

$6.99

$

Usually ships in 4-12 days

0

174

Ariens 21546431

NUT.PUSH..500

$6.49

$

In Stock, only 2 left!

0

175

Ariens 21547220

Shaft Asm Shift

$

$

Not available

176

Ariens 21546394

ARM.CLEVIS.ROD.SHIFT

$

$

Not available

178

Ariens 21546445

SPRING.SHIFT.GT.2006

$6.99

$

Usually ships in 4-12 days

0

184

Ariens 21546477

HANDLE.PARKING BRAKE.LTTEX.505
(Superseded to 21547562)

$18.99

$

In Stock, only 1 left!

0

185

Ariens 21546768

BOLT.RDHD.3/8-16UNC X2-3/4 GR5

$3.99

$

In Stock, only 3 left!

0

186

Ariens 21546328

SPACER.RETAINER

$7.49

$

Usually ships in 4-12 days

0

187

Ariens 21546287

WASHER.13/32 X 2 X 10 GA.

$

$

Not available

188

Ariens 21546329

LINK.CLUTCH.GROUND DRIVE

$15.99

$

In Stock, only 1 left!

0

189

Ariens 21546324

BELLCRANK.GROUNDRIVE.NSTG/NSTL

$

$

Not available

190

Ariens 21546325

KEEPER.BELLCRANK.DRIVE.GROUND

$8.99

$

In Stock, Qty 19

0

203

Ariens 21546279

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 06437200)

$0.99

$

In Stock, Qty 9

0

205

Ariens 21546066

WASHER.25/32 X 1-5/8 X 16GA.

$3.49

$

In Stock, Qty 20+

0

221

Ariens 21546588

RETAINER.SPRING.CLIP.HANDLE

$6.49

$

In Stock, Qty 10

0

232

Ariens 21546818

BOLT.FIN HEX.7/16-14X1 GR5
(Superseded to 05958700)

$2.99

$

In Stock, only 1 left!

0

233

Ariens 21546609

WASHER.SERRATED

$

$

Not available

295

Ariens 21547205

Pin Clevis 183 OD X 1.260 Long

$

$

Not available

296

Ariens 21547206

Screw Thdrol 5/16-18 x 3

$5.49

$

Usually ships in 4-12 days

0

297

Ariens 21547207

Nut Push 1/4

$4.99

$

Usually ships in 4-12 days

0

298

Ariens 21547208

Pin Clevis Cbl. Brk. Variator

$

$

Not available

299

Ariens 21547209

Bracket Mount Idler

$

$

Not available

300

Ariens 21547210

Keeper Idler Rear

$6.49

$

Usually ships in 4-12 days

0

301

Ariens 21547211

Pulley Idler V-Groove

$31.99

$

In Stock, Qty 20+

0

302

Ariens 21547212

Pulley Idler Flat 2.0 OD

$31.99

$

In Stock, Qty 6

0

303

Ariens 21547133

Bolt RDHD SQNK 3/8-16 x 2-1/4

$

$

Not available

305

Ariens 21547214

Cable Brake Variator

$

$

Not available

375

Ariens 21548291

BOLT.HEX.HS.3/8-16.UNCX2-1/4
(Superseded to 05962900)

$3.99

$

In Stock, Qty 20+

0
