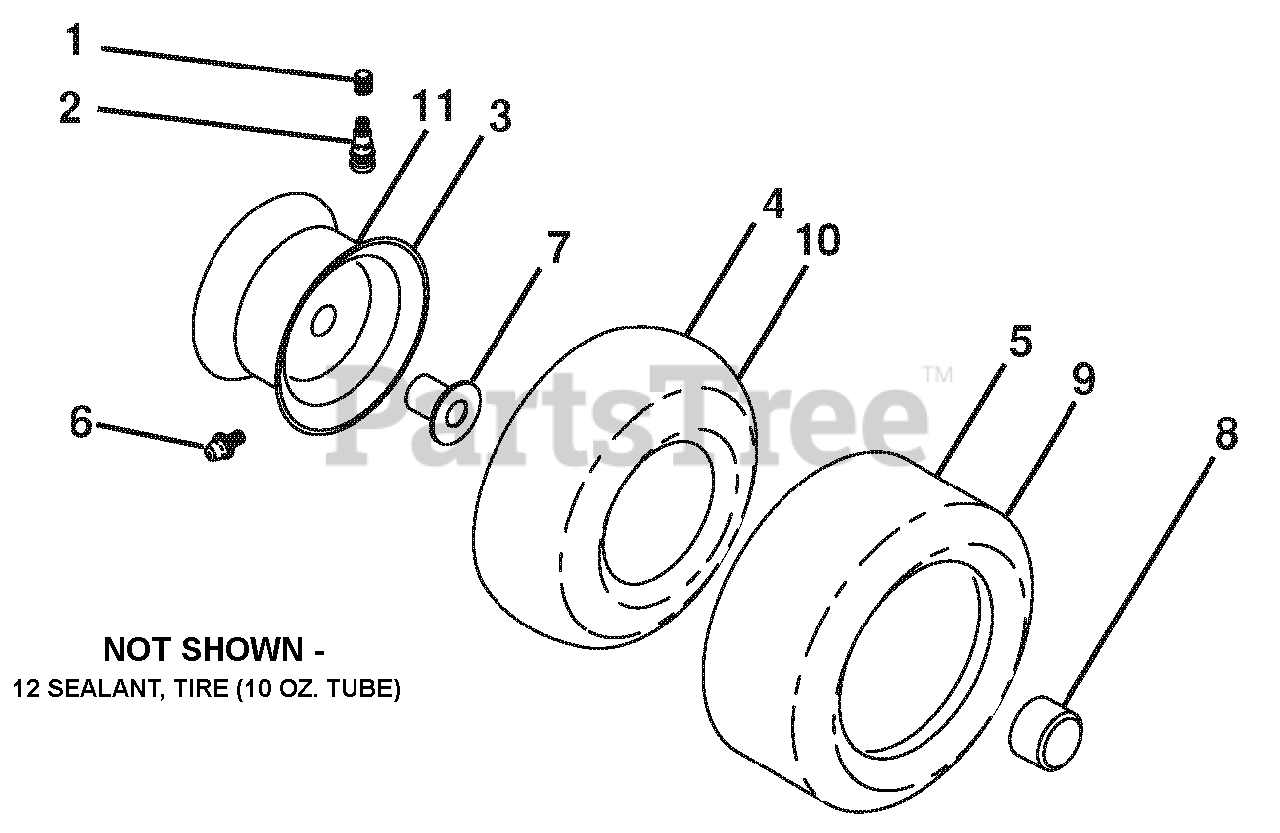

936049 (960460015-00) - Ariens 42" Lawn Tractor, 19hp Briggs & Stratton, Hydro Wheels And Tires Parts Diagram

42" Lawn Tractor, 19hp Briggs & Stratton, Hydro

Wheels And Tires Parts Diagram

  • Title

1

Ariens 21546747

CAP.VALVE.TIRE

$4.99

$

In Stock, Qty 20+

0

2

Ariens 21546751

STEM.VALVE

$10.99

$

In Stock, Qty 20+

0

3

Ariens 21547254

Rim.Asm.6"Front(w.Grey).643
(Superseded to 21547813)

Note: (W.GREY).643

$87.99

$

In Stock, Qty 20+

0

4

Ariens 21546748

TUBE.INNER.FRONT.#35060

Note: (SERVICE ITEM ONLY)

$37.99

$

In Stock, Qty 20+

0

5

Ariens 21546034

TIRE.F.TS.15 X 6.0 - 6.SERVICE

$129.99

$

Usually ships in 4-12 days

0

6

Ariens 21546547

FITTING.GREASE

Note: (FRONT WHEEL ONLY)

$6.49

$

In Stock, Qty 20+

0

7

Ariens 21546832

BEARING.FLANGE

Note: (FRONT WHEEL ONLY)

$6.49

$

In Stock, Qty 20+

0

8

Ariens 21546023

CAP.HUB.AXLE.BLK.1.50 X 1.00
(Superseded to 21547547)

$3.99

$

In Stock, Qty 20+

0

9

Ariens 21546685

TIRE.R.TS-LT.18X9.5-8.C.SERV.
(Superseded to 21547456)

$

$

Not available

10

Ariens 21546755

TUBE.REAR.9.5 X 8.SERVICE
(Superseded to 21547539)

Note: (SERVICE ITEM ONLY)

$

$

Not available

11

Ariens 21547256

Rim Asm.8"Rear.W.Gry.Srvce.643
(Superseded to 21548754)

$

$

Not available

12

Ariens 21546845

SEALANT, TIRE (10 OZ. TUBE)
(Superseded to 21549051)

Note: (10 OZ. TUBE) (NOT SHOWN)

$

$

Not available
