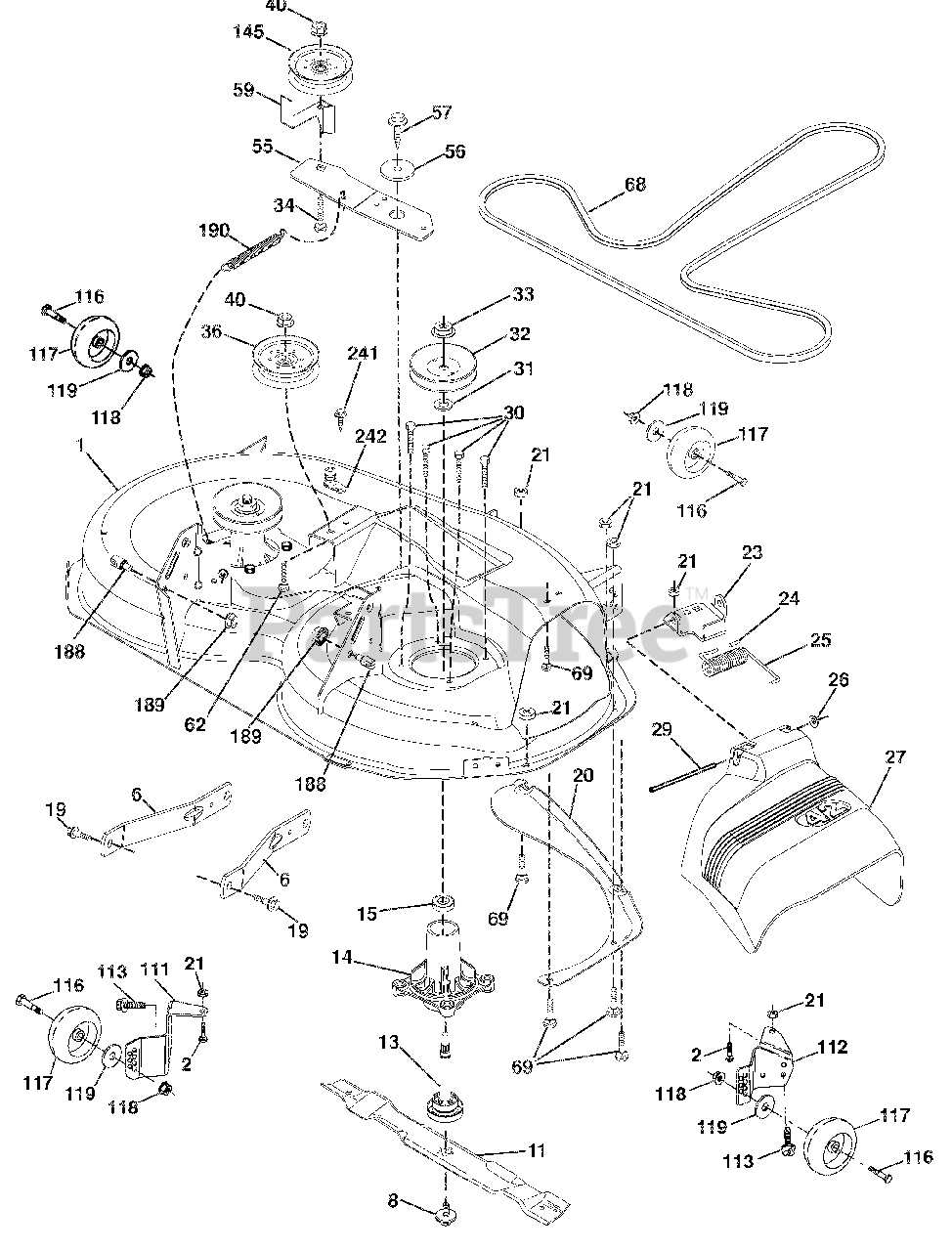

936051 (960460024-01) - Ariens 42" Lawn Tractor, 19hp Kohler, Hydro Mower Deck Parts Diagram

42" Lawn Tractor, 19hp Kohler, Hydro

Mower Deck Parts Diagram

  • Title

1

Ariens 21547737

MOWER HOUSING
(Superseded to 21547805)

$

$

Not available

2

Ariens 21547167

Bolt

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 21546347

ARM.SUSPENSION.MOWER.REAR.LD

$

$

Not available

8

Ariens 21546301

BOLT/WASHER ASM.7/16-20.UNF

$13.99

$

In Stock, Qty 20+

0

11

Ariens 21546095

BLADE.MOWER.42"HI LIFT PREMIUM

$37.99

$

In Stock, Qty 20+

0

13

Ariens 21546300

SHAFT ASM.MNDRL.N/GREASEABLE38
(Superseded to 21549012)

$112.99

$

In Stock, Qty 20+

0

14

Ariens 21546238

HOUSING.MANDREL.4PT.SERVICE
(Superseded to 21549012)

$112.99

$

In Stock, Qty 20+

0

15

Ariens 21546046

BEARING.BALL.MANDREL
(Superseded to 05418800)

$10.99

$

In Stock, Qty 20+

0

19

Ariens 21546411

BOLT.SHOULDER

$13.99

$

In Stock, Qty 20+

0

20

Ariens 21546144

BAFFLE.VORTEX.42.STD/HEAVY DTY

$

$

Not available

21

Ariens 21546784

Nut, Hex, Crownlock 5/16-18

$1.99

$

Usually ships in 4-12 days

0

23

Ariens 21546296

BRACKET.DEFLECTOR.38/42"2005

$10.99

$

In Stock, Qty 20+

0

24

Ariens 21546025

CAP.SLEEVE..80X.112.BLK.MOWER

$11.99

$

In Stock, Qty 20+

0

25

Ariens 21546416

SPRING.TORSION.DFL.38/42/46.GR

$17.99

$

In Stock, Qty 18

0

26

Ariens 21546045

NUT.PUSH.PHOS.& OIL

$8.49

$

In Stock, Qty 20+

0

27

Ariens 21547728

SHIELD.DEFLECTOR.
(Superseded to 21546305)

$

$

Not available

29

Ariens 21546081

ROD.HINGE.42/46"

$15.99

$

Usually ships in 4-12 days

0

30

Ariens 21546192

SCREW.THD ROLL.DOD PT.HEX
(Superseded to 21548816)

$11.99

$

In Stock, Qty 20+

0

31

Ariens 21546253

WASHER.SPACER.MANDREL

$7.49

$

In Stock, Qty 20+

0

32

Ariens 21546127

MANDREL.PULLEYS.42,44,50

$23.99

$

In Stock, Qty 20+

0

33

Ariens 21546554

NUT.FLANGE.LOCK.TOP

$9.49

$

Usually ships in 4-12 days

0

34

Ariens 21546765

BOLT.CARR.SH.3/8-16X1-1/2.GR5
(Superseded to 06224200)

$4.99

$

In Stock, Qty 20+

0

36

Ariens 21546440

PULLEY.IDLER.4.50.RAW

$46.99

$

In Stock, Qty 20+

0

40

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.99

$

In Stock, Qty 18

0

55

Ariens 21547834

IDLER.ARM

$17.99

$

Usually ships in 4-12 days

0

56

Ariens 21546482

SPACER.RETAINER

$7.99

$

In Stock, Qty 14

0

57

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$

$

Not available

59

Ariens 21546103

GUARD.TUV.IDLER

$15.99

$

Usually ships in 4-12 days

0

62

Ariens 21546767

BOLT.RD.HD.SQ.NK.3/8-16UNC X 2
(Superseded to 06203200)

$2.99

$

In Stock, Qty 20+

0

68

Ariens 21547188

V-Belt, 42" Mower

$58.99

$

In Stock, Qty 20+

0

69

Ariens 21546770

BOLT.RDHD.SQNK.5/16-18 X 5/8
(Superseded to 596136401)

$3.49

$

In Stock, Qty 20+

0

111

Ariens 21547329

BRACKET WHEEL GAUGE LH

$20.99

$

In Stock, only 2 left!

0

112

Ariens 21547330

BRACKET WHEEL GAUGE RH

$23.99

$

Usually ships in 4-12 days

0

113

Ariens 21546179

BOLT.5/16-18HEX.WHS.HD.LCKSERR

$10.99

$

In Stock, Qty 20+

0

116

Ariens 21547537

BOLD SHLD "A" 2.41 "B" 1.66
(Superseded to 21546741)

$

$

Not available

117

Ariens 21546267

WHEEL.GAGE.HALF.SPOKED

$11.99

$

Usually ships in 4-12 days

0

118

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.99

$

In Stock, Qty 18

0

119

Ariens 21546281

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

145

Ariens 21546308

PULLEY.IDLER 48"PRIMARY

$58.99

$

In Stock, Qty 20+

0

188

Ariens 21546343

STUD.FASTNER.W/'D'ANTI-ROTATIO

$9.99

$

Usually ships in 4-12 days

0

189

Ariens 21546789

Nut, Lock Hex Flange 5/16-18 u
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

190

Ariens 21547318

SPRING

$17.99

$

In Stock, Qty 12

0

241

Ariens 21547128

Screw

$

$

Not available

242

Ariens 21547345

PORT WASHOUT

$18.99

$

In Stock, Qty 20+

0

- -

Ariens 21546299

MANDREL ASM.SUB.N-GRS.4 BOLT
(Superseded to 21549012)

$112.99

$

In Stock, Qty 20+

0

PULLEY/NUT/WASHER AND BLADE BOLT/WASHERS NOT INCLUDED)

Note: PULLEY/NUT/WASHER AND BLADE BOLT/WASHERS NOT INCLUDED)

$

$

Not available

- -

Ariens 21547729

DECK.SVC.42"HP.E.4GWB.TEX.668

$430.99

$

Usually ships in 4-12 days

0
