936054 (960460027-02) - Ariens 54" Lawn Tractor, 25hp Kohler, Gear Engine Parts Diagram

54" Lawn Tractor, 25hp Kohler, Gear

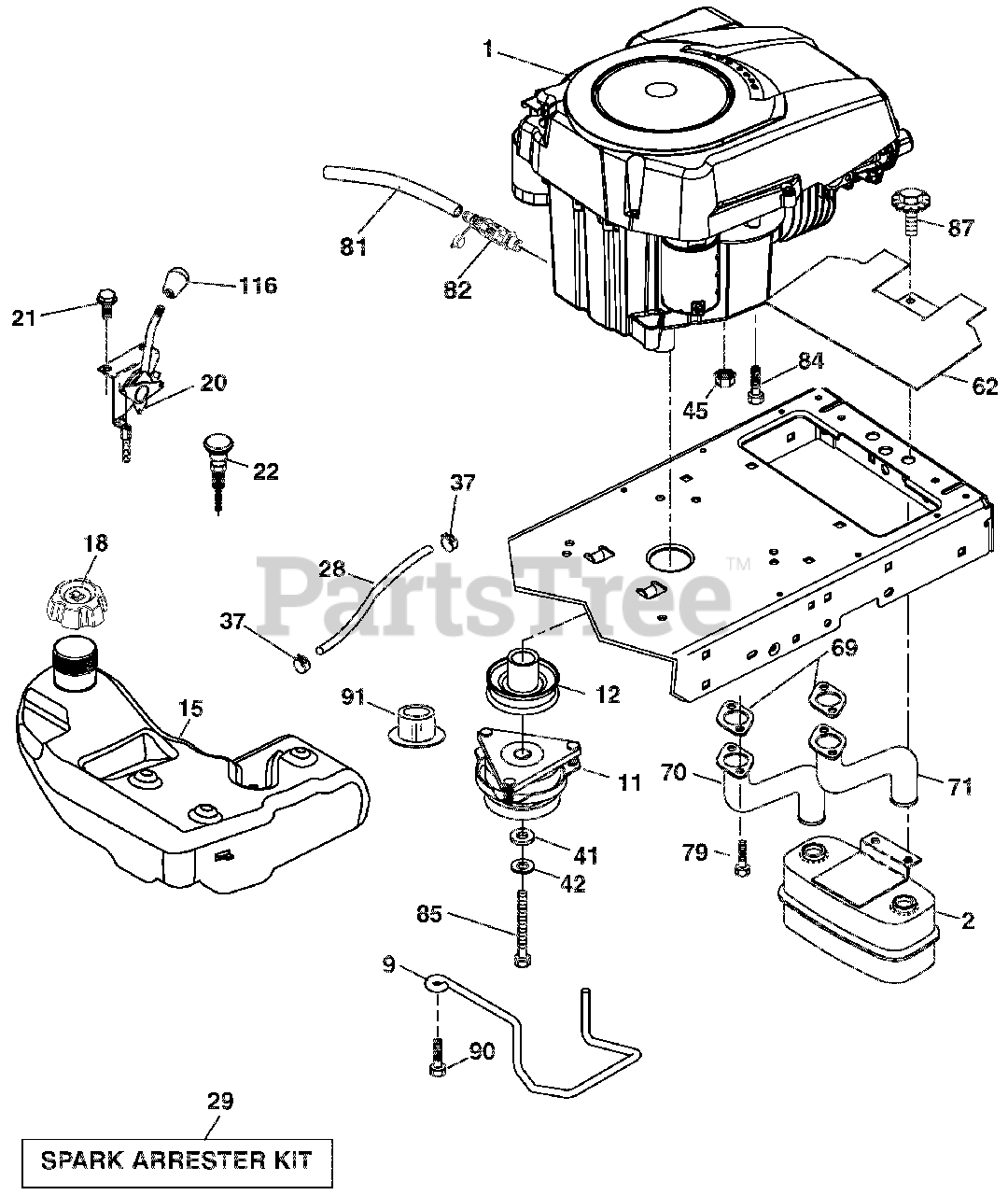

Engine Parts Diagram

  • Title

1

ENGINE KOHL MODEL NO. SV730-3041(438325)(ORDER PARTS FROM ENGINE MANUFACTURER.)

Note: (438325)(ORDER PARTS FROM ENGINE MANUFACTURER.)

$

$

Not available

2

Ariens 21546118

MUFFLER ASM.TWIN.LO-TONE

$74.99

$

In Stock, Qty 6

0

9

Ariens 21546326

KEEPER.BELT.ENGINE.3.25"NSTL

$12.99

$

In Stock, only 3 left!

0

11

Ariens 21547305

CLUTCH.ELECTRIC

$387.99

$

Usually ships in 4-12 days

0

12

Ariens 21547762

PULLEY ENGINE

$

$

Not available

15

Ariens 21547666

TANK.FUEL

$310.99

$

In Stock, only 1 left!

0

18

Ariens 21547353

CAP FUEL

$

$

Not available

20

Ariens 21547665

CONTROL.THROTTLE

$79.99

$

Usually ships in 4-12 days

0

21

Ariens 21546675

Screw

$

$

Not available

22

Ariens 21547761

CONTROL CHOKE
(Superseded to 21547705)

$37.99

$

Usually ships in 4-12 days

0

28

Ariens 21546570

LINE.FUEL.64"REAR.EMIS.CA.LP

$22.99

$

In Stock, only 1 left!

0

29

Ariens 21546090

KIT.SPARK ARRESTOR(392390 B&S)

$

$

Not available

37

Ariens 21546069

CLAMP.HOSE.BLK.

$7.49

$

Usually ships in 4-12 days

0

41

Ariens 21546077

WASHER.1-1/2 ODX15/32 IDX.250

$6.99

$

Usually ships in 4-12 days

0

42

Ariens 21546004

WASHER.LOCK.HVY HLCL.SPR.7/16
(Superseded to 21547501)

$3.49

$

Usually ships in 4-12 days

0

45

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$2.99

$

Usually ships in 4-12 days

0

62

Ariens 21547370

SHIELD.HEAT.MUFFLER.

$

$

Not available

69

Ariens 21547759

GASKET

Note: (ORDER FROM ENGINE MFGR.)

$

$

Not available

70

Ariens 21546115

PIPE.EXHAUST.LH.CV18/20
(Superseded to 21548724)

$16.99

$

In Stock, only 1 left!

0

71

Ariens 21546116

PIPE.EXHAUST.RH.CV18/20

$

$

Not available

79

Ariens 21546293

SCREW.SOCKET HD.5/16-18 X .75
(Superseded to 05909000)

$2.49

$

In Stock, Qty 20+

0

81

Ariens 21546117

TUBE.DRAIN.OIL.EASY

$4.99

$

In Stock, Qty 20+

0

82

Ariens 21547348

VALVE OIL DRAIN

$18.99

$

In Stock, Qty 18

0

84

Ariens 21546188

SCREW.3/8-16 X 1.SMGML.TAP/R

$

$

Not available

85

Ariens 21547306

BOLT.HEX.7/16-20 X 3.75 X GR.

$6.99

$

Usually ships in 4-12 days

0

87

Ariens 21547321

BOLT.5/16-18 UNC X 1 W/SEMS.BL

$6.49

$

Usually ships in 4-12 days

0

90

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$7.49

$

In Stock, Qty 8

0

91

Ariens 21546246

BUSHING.1.375OD.HEYCO 2210

$7.99

$

In Stock, only 1 left!

0

116

Ariens 21547757

KNOB SOFT TOUCH
(Superseded to 21547676)

$7.49

$

Usually ships in 4-12 days

0
