936061 (960160028-00) - Ariens 42" Lawn Tractor, Briggs & Stratton, Gear Decals Parts Diagram

42" Lawn Tractor, Briggs & Stratton, Gear

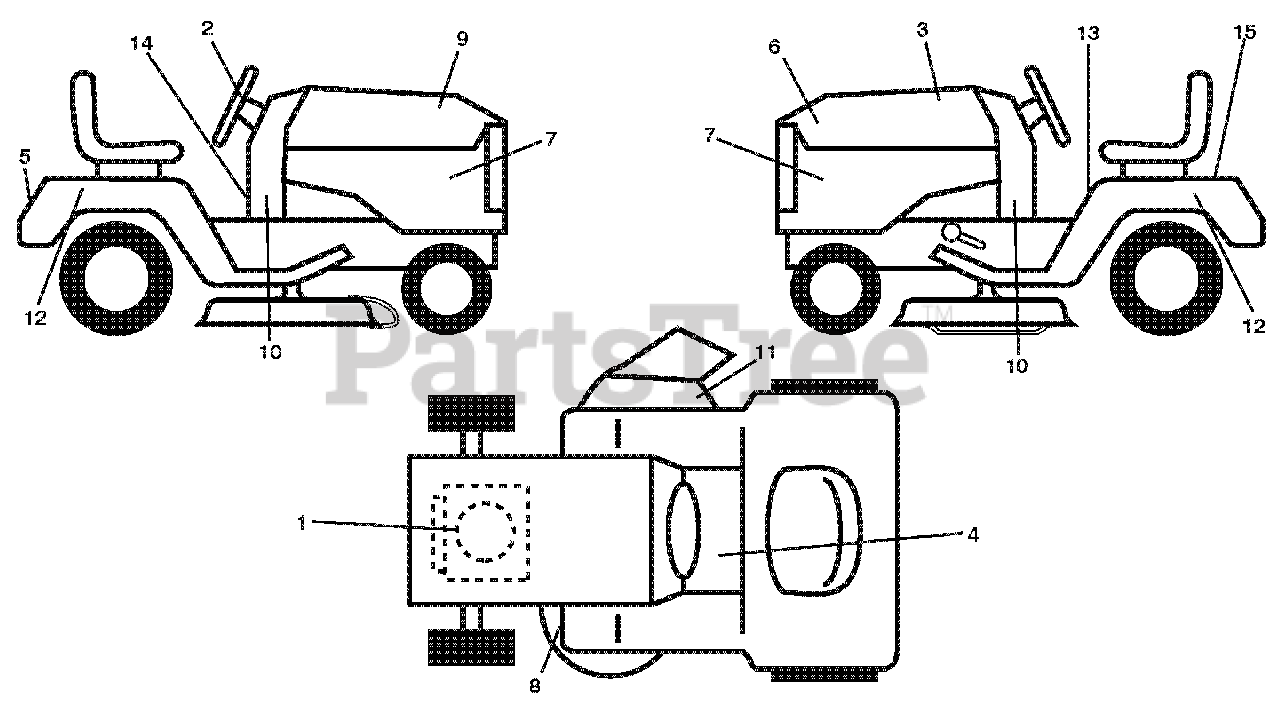

Decals Parts Diagram

  • Title

1

Ariens 21547357

DECAL, REPLACEMENT

$

$

Not available

2

Ariens 21547143

Decal, Ins Str Wh

$

$

Not available

3

Ariens 21547914

DECAL.REPLACEMENT

$

$

Not available

4

Ariens 21547918

DECAL.FENDER

$

$

Not available

5

Ariens 21547668

DECAL.FENDER.REAR.ARIENS

$

$

Not available

6

Ariens 21547917

DECAL.HOOD.LH

$

$

Not available

7

Ariens 21547732

DECAL.SDPNL.PWRDBY B&S.ARIENS

$23.99

$

Usually ships in 4-12 days

0

8

Ariens 21546145

DECAL.V-BELT.SCH.42/46"MEC/ELE

$

$

Not available

9

Ariens 21547915

DECAL.HOOD.RH

$

$

Not available

10

Ariens 21547365

DECAL, DASH LOWER

$8.49

$

Usually ships in 4-12 days

0

11

Ariens 21546186

DECAL.MOWER.WARN.KEEP HAND AWY
(Superseded to 21548132)

$

$

Not available

12

Ariens 21547916

DECAL.FENDER.SD.GEAR.DR

$

$

Not available

13

Ariens 21547338

DECAL, WARNING START INST.

$4.99

$

In Stock, Qty 5

0

14

Ariens 21546727

Decal, Spark Arrester

$

$

Not available

15

Ariens 21546109

DECAL.BAT.DAN/POI P/L SYM.WPN

$

$

Not available

- -

Ariens 21547919

PAD.FOOTREST.RH

$5.99

$

Usually ships in 4-12 days

0

- -

Ariens 21547920

PAD.FOOTREST.LH

$6.99

$

Usually ships in 4-12 days

0

- -

Ariens 21547151

Decal, Handle Lft Height Adj.

$

$

Not available

- -

Ariens 21547928

OPERATOR'S MANUAL (ENG/FRENCH)

$

$

Not available

- -

Ariens 21547930

OPERATOR'S MANUAL (SPANISH)

$

$

Not available

- -

Ariens 21547929

PARTS MANUAL (ENGLISH/FRENCH)

$

$

Not available

- -

Ariens 21547931

PARTS MANUAL (SPANISH)

$

$

Not available
