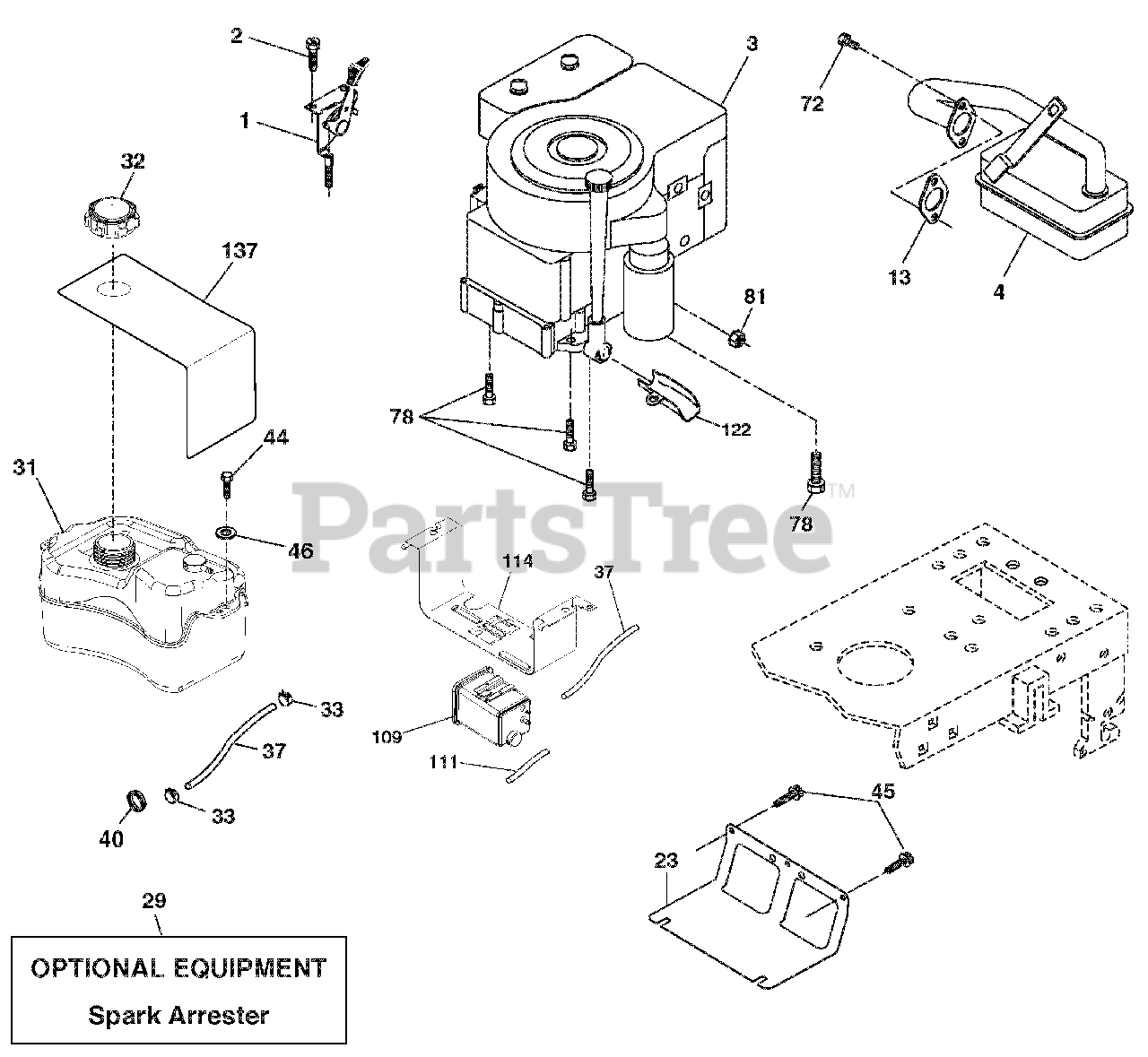

936061 (960160028-01) - Ariens 42" Lawn Tractor, Briggs & Stratton, Gear Engine Parts Diagram

42" Lawn Tractor, Briggs & Stratton, Gear

Engine Parts Diagram

  • Title

1

Ariens 21547109

Control Th/ch Flag

$35.99

$

Usually ships in 4-12 days

0

2

Ariens 21546210

Screw 1/4-20 x 1/2

$7.49

$

Usually ships in 4-12 days

0

3

ENGINE, B&S 31C707-4346-G5(440007) (ORDER PARTS FROM ENGINE MANUFACTURER.)

Note: (440007) (ORDER PARTS FROM ENGINE MANUFACTURER.)

$

$

Not available

4

Ariens 21547110

Muffler Exhaust B&S

$51.99

$

In Stock, Qty 19

0

13

Ariens 21547111

Gasket Eng 1 313 Id Tin Plated
(Superseded to 21547224)

$5.49

$

In Stock, Qty 20+

0

23

Ariens 21547112

Shield BRN/DBR Guard

$

$

Not available

29

Ariens 21546090

KIT.SPARK ARRESTOR(392390 B&S)

Note: (392390 B&S)

$

$

Not available

31

Ariens 21546686

TANK ASM.FUEL.1.50.CARB.CA.SVC
(Superseded to 21547954)

$

$

Not available

32

Ariens 21547355

CAP FUEL

$79.99

$

Usually ships in 4-12 days

0

33

Ariens 21546069

CLAMP.HOSE.BLK.

$7.99

$

Usually ships in 4-12 days

0

37

Ariens 21546571

LINE.FUEL.22"FRONT.EMIS.CA.LP

$14.99

$

Usually ships in 4-12 days

0

40

Ariens 21547114

Bushing Snap Nyl Blk Fuel Line

$

$

Not available

44

Ariens 21546207

SCREW.HEXWSH.THDROL.1/4-20X3/4
(Superseded to 21548385)

$5.99

$

In Stock, only 1 left!

0

45

Ariens 21546181

SCREW.HEXWSH THDR3/8-16X3/4.BL
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

46

Ariens 21546277

WASHER.9/32 X 7/8 X 16GA.

$

$

Not available

72

Ariens 21546293

SCREW.SOCKET HD.5/16-18 X .75
(Superseded to 05909000)

$2.99

$

In Stock, Qty 13

0

78

Ariens 21547225

Screw 3/8-16 x <
(Superseded to 21547081)

$10.99

$

In Stock, only 3 left!

0

81

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$2.99

$

Usually ships in 4-12 days

0

109

Ariens 21546657

CANISTER.CARBON.FILTER ASM.TEX

$

$

Not available

111

Ariens 21546660

PURGE.LINE.CARB

$

$

Not available

114

Ariens 21546659

CRADLE.CANISTER.CARBON

$

$

Not available

122

Ariens 21547116

Extension Drain Oil

$40.99

$

In Stock, Qty 8

0

137

Ariens 21547927

SHIELD

$

$

Not available
