936061 (960160028-02) - Ariens 42" Lawn Tractor, Briggs & Stratton, Gear Electrical Parts Diagram

42" Lawn Tractor, Briggs & Stratton, Gear

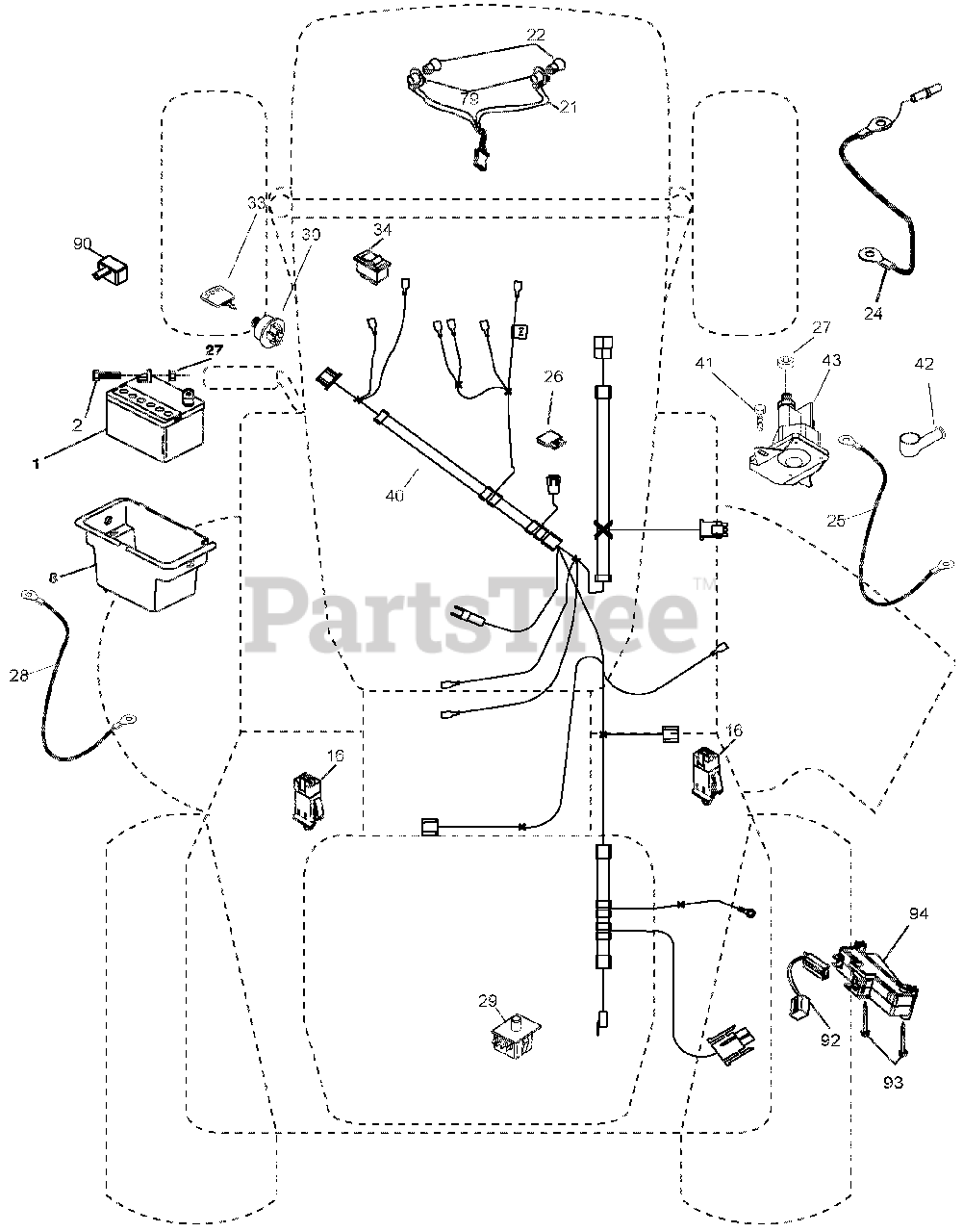

Electrical Parts Diagram

  • Title

1

Ariens 21546162

BATTERY.12.VOLT.28.AMP.WET

$

$

Not available

2

Ariens 21546803

BOLT.HEX.HD.1/4-20UNC X 3/4

$7.49

$

In Stock, Qty 7

0

8

Ariens 21547029

Box Battery

$18.99

$

In Stock, only 1 left!

0

16

Ariens 21546205

SWITCH.INTERLOCK.NONO.GRAY

$15.99

$

In Stock, Qty 20+

0

21

Ariens 21546226

HARNESS ASM.LIGHT.22"(4152J)

Note: (4152J)

$

$

Not available

22

Ariens 21546673

BULB.LIGHT.#1156

$7.99

$

Usually ships in 4-12 days

0

24

Ariens 21547031

Cable Battery

$24.99

$

In Stock, only 4 left!

0

25

Ariens 21547030

Cable Battery 6 Ga. 11" Red

$

$

Not available

26

Ariens 21546200

FUSE.20 AMP.

$7.49

$

In Stock, Qty 12

0

27

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$2.99

$

Usually ships in 4-12 days

0

28

Ariens 21547032

Cable Ground 6 Ga. 12" Black

$23.99

$

Usually ships in 4-12 days

0

29

Ariens 21546298

SWITCH.SEAT.DP.W/ROS

$21.99

$

In Stock, Qty 7

0

30

Ariens 21546319

SWITCH.IGN.DLTA.P-IN.ROS

$13.99

$

In Stock, Qty 20+

0

33

Ariens 21547339

KEY/CHAIN.BLISTER PACK.GEN.USA

$9.99

$

Usually ships in 4-12 days

0

34

Ariens 21546050

SWITCH.LIGHT/RESET.B/B/RED.

$8.99

$

In Stock, Qty 11

0

40

Ariens 21547033

Harness Ign

$113.99

$

In Stock, only 2 left!

0

41

Ariens 21547034

Bolt Blk Fin Hex 1/4-20

$

$

Not available

42

Ariens 21546082

COVER.TERMINAL.RED

$10.99

$

Usually ships in 4-12 days

0

43

Ariens 21546294

SOLENOID.W/BRASS PLUNGER.2005

$9.99

$

Usually ships in 4-12 days

0

79

Ariens 21546201

SOCKET ASM.BULB.TWISTLOCK

$22.99

$

Usually ships in 4-12 days

0

90

Ariens 21547570

COVER TERMINAL BATTERY FR. TEX

$4.99

$

Usually ships in 4-12 days

0

92

Ariens 21546412

HARNESS.PIGTAIL.CONSLE.ROS.MLK

$20.99

$

Usually ships in 4-12 days

0

93

Ariens 21546295

SCREW.PLASTITE.10-14 X 2.0

$

$

Not available

94

Ariens 21546849

MODUAL REVERSE ROS

$

$

Not available
