936063 (960460033-00) - Ariens 46" Lawn Tractor, Briggs & Stratton, Hydro Chassis Parts Diagram

46" Lawn Tractor, Briggs & Stratton, Hydro

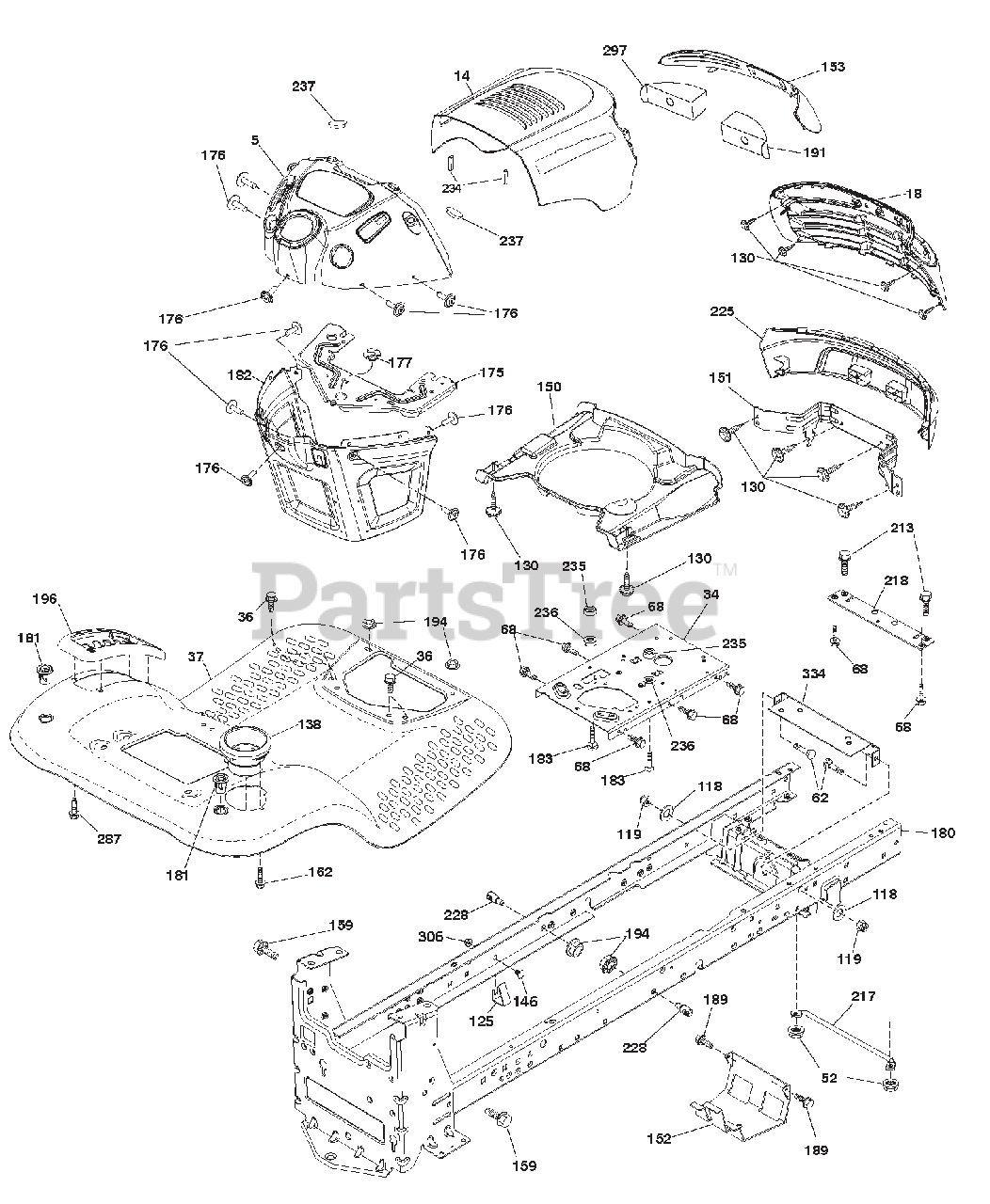

Chassis Parts Diagram

  • Title

5

Ariens 21547746

DASH

$54.99

$

Usually ships in 4-12 days

0

14

Ariens 21547755

HOOD

$

$

Not available

18

Ariens 21547753

GRILLE
(Superseded to 21547627)

$105.99

$

Usually ships in 4-12 days

0

34

Ariens 21546384

PLATE.ENGINE.WELDED.CHASSIS

$50.99

$

Usually ships in 4-12 days

0

36

Ariens 21546187

SCREW.5/16-18X3/4.SMGML.TAP/R

$7.49

$

Usually ships in 4-12 days

0

37

Ariens 21547643

FENDER TLT W/CPH W/FW 422

$232.99

$

Usually ships in 4-12 days

0

52

Ariens 21546784

Nut, Hex, Crownlock 5/16-18

$3.99

$

Usually ships in 4-12 days

0

62

Ariens 21546764

Bolt 3/8-16 x 1 Gr. 5
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

68

Ariens 21546199

SCREW.THDROL.5/16-18 X 1/2TYTT

$6.49

$

In Stock, only 1 left!

0

118

Ariens 21546284

WASHER.13/32 X 13/16 X 16 GA.

$4.99

$

In Stock, Qty 9

0

119

Ariens 21546785

Nut, Hex, Crownlock 3/8-16

$3.99

$

Usually ships in 4-12 days

0

125

Ariens 21548397

CLIP.FUEL.LINE

$

$

Not available

130

Ariens 21546675

Screw

$

$

Not available

138

Ariens 21547560

CUPHOLDER TL TEX 428

$7.49

$

In Stock, only 1 left!

0

146

Ariens 21548398

BOLT

$

$

Not available

150

Ariens 21547591

AIR DUCT.INTAKE.B&S

$32.99

$

In Stock, only 1 left!

0

151

Ariens 21547052

Bracket Pivot

$28.99

$

Usually ships in 4-12 days

0

152

Ariens 21546501

SHIELD.BROWNING.W/TEX

$

$

Not available

153

Ariens 21547880

LENS, ARIENS

$28.99

$

Usually ships in 4-12 days

0

159

Ariens 21546181

SCREW.HEXWSH THDR3/8-16X3/4.BL

$4.99

$

In Stock, Qty 20+

0

162

Ariens 21546106

SCREW.HEX.WSH.HI-LO.1/4X1/2UNC

$5.99

$

Usually ships in 4-12 days

0

175

Ariens 21547740

CROSSMEMBER.LT

$

$

Not available

176

Ariens 21546562

SCREW.#10-24X5/8.RND.QUDRX.GIM

$11.99

$

In Stock, Qty 5

0

177

Ariens 21546357

BUSHING.STEERING.LT

$4.99

$

In Stock, Qty 20+

0

180

Ariens 21547555

CHASS WLDMT TL 12 GA/2PC 18/22

$254.99

$

Usually ships in 4-12 days

0

181

Ariens 21547557

BUSHING MNT FEND CRGO BLK TEX

$6.49

$

Usually ships in 4-12 days

0

182

Ariens 21547590

DASH LOWER

$55.99

$

Usually ships in 4-12 days

0

183

Ariens 21547383

BOLT.FIN.HEX.5/16-18 UNC X1-1/

$

$

Not available

189

Ariens 21546180

SCREW.5/16-18X3/4.SMGML.TAP/BL
(Superseded to 21547490)

$12.99

$

In Stock, only 2 left!

0

191

Ariens 21547592

INSERT REFLECTIVE RH

$

$

Not available

194

Ariens 21546789

Nut, Lock Hex Flange 5/16-18 u
(Superseded to 06530400)

$1.49

$

In Stock, only 4 left!

0

196

Ariens 21547812

CONSOLE ASSEMBLY

$26.99

$

In Stock, only 4 left!

0

213

Ariens 21546804

Bolt, Hex Head 5/16-18 x 3/4

$5.99

$

In Stock, only 4 left!

0

217

Ariens 21546636

ROD.PIVOT.HOOD

$

$

Not available

218

Ariens 21546400

X-PIECE.HOOD.STOP.NON/STEALTH

$6.49

$

In Stock, only 1 left!

0

225

Ariens 21547953

BUMPER
(Superseded to 21547747)

$

$

Not available

228

Ariens 21546343

STUD.FASTNER.W/'D'ANTI-ROTATIO

$

$

Not available

234

Ariens 21547742

BUMPER HOOD

$6.49

$

Usually ships in 4-12 days

0

235

Ariens 21546619

SPACER.FENDER

$

$

Not available

236

Ariens 21546793

NUT.CENTER LOCK.5/16-18 UNC
(Superseded to 06500522)

$1.49

$

Usually ships in 4-12 days

0

237

Ariens 21547588

PLUG.MOUNT.CARGO

$7.99

$

In Stock, only 1 left!

0

287

Ariens 21546204

SCREW.HEX.WASHEAD.1/4-20 X 3/8

$6.49

$

In Stock, Qty 5

0

297

Ariens 21547587

INSERT REFLECTIVE LH

$27.99

$

In Stock, only 1 left!

0

306

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0

334

Ariens 21547840

BRACKET ENGINE PLATE

$

$

Not available
