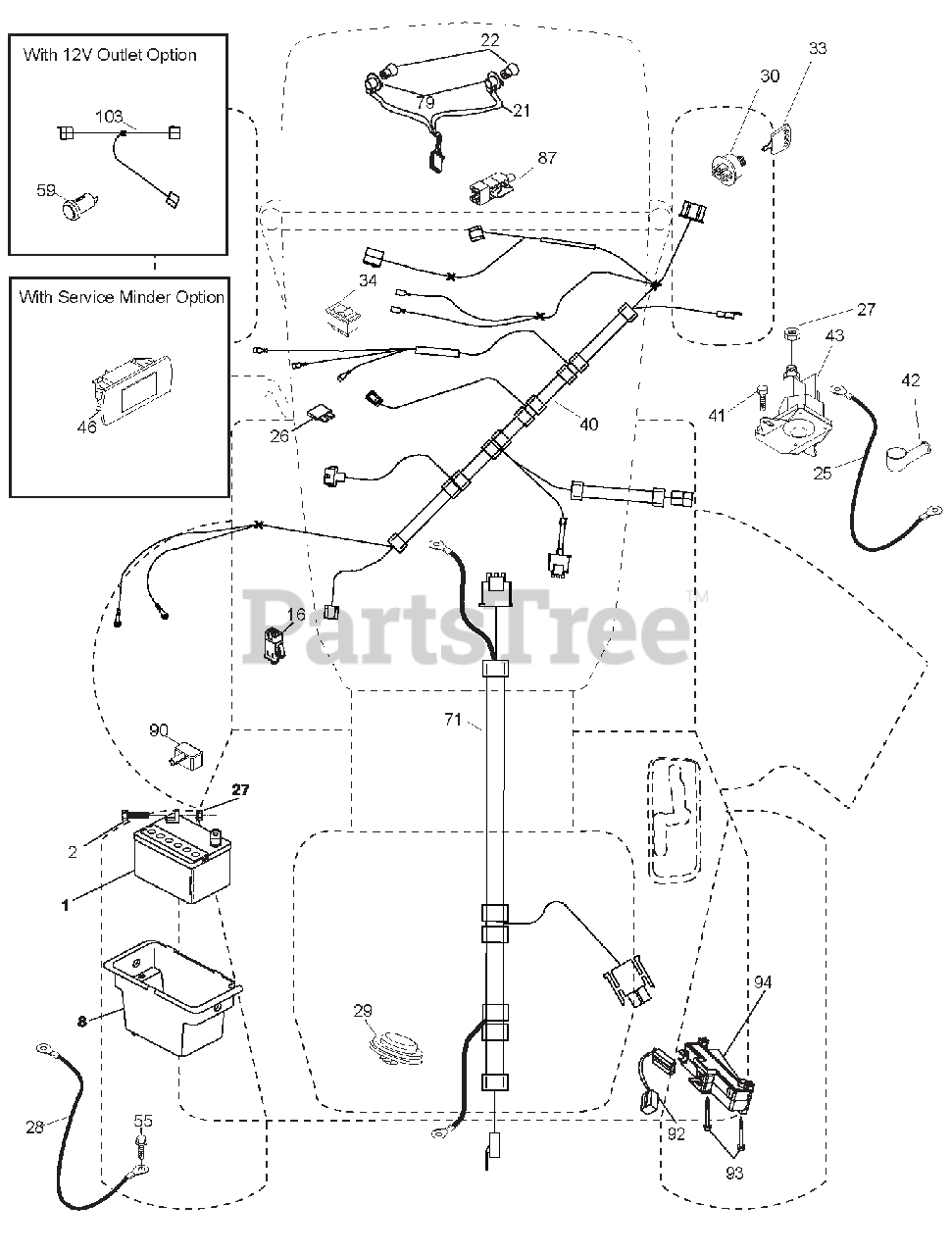

936063 (960460033-01) - Ariens 46" Lawn Tractor, Briggs & Stratton, Hydro Electrical Parts Diagram

46" Lawn Tractor, Briggs & Stratton, Hydro

Electrical Parts Diagram

  • Title

1

Ariens 21546162

BATTERY.12.VOLT.28.AMP.WET

$

$

Not available

2

Ariens 21546803

BOLT.HEX.HD.1/4-20UNC X 3/4

$3.49

$

In Stock, Qty 12

0

8

Ariens 21546315

BOX.BATTERY.MNT.REAR.LT.TEX.BL

$29.99

$

In Stock, only 2 left!

0

16

Ariens 21546205

SWITCH.INTERLOCK.NONO.GRAY

$29.99

$

In Stock, Qty 18

0

21

Ariens 21547584

HARNESS ASM.LIGHT.22"(4152J)
(Superseded to 21546226)

$

$

Not available

22

Ariens 21546673

BULB.LIGHT.#1156

$8.49

$

In Stock, only 1 left!

0

25

Ariens 21546646

CABLE.STARTER.6GA.BL/RED.14.5"

$

$

Not available

26

Ariens 21546200

FUSE.20 AMP.

$

$

Not available

27

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$

$

Not available

28

Ariens 21546481

CABLE.BLACK.22"REAR BATT.TEX

$

$

Not available

29

Ariens 21546574

SWITCH.SEAT.DELTA.OPC.9LB.

$23.99

$

In Stock, Qty 17

0

30

Ariens 21546319

SWITCH.IGN.DLTA.P-IN.ROS

$58.99

$

In Stock, Qty 20+

0

33

Ariens 21547339

KEY/CHAIN.BLISTER PACK.GEN.USA

$18.99

$

Usually ships in 4-12 days

0

34

Ariens 21546050

SWITCH.LIGHT/RESET.B/B/RED.

$

$

Not available

40

Ariens 21546568

HARNESS.IGN.DASH.CBL.YTGT.PRED

$

$

Not available

41

Ariens 21546210

Screw 1/4-20 x 1/2

$

$

Not available

42

Ariens 21546082

COVER.TERMINAL.RED

$

$

Not available

43

Ariens 21546294

SOLENOID.W/BRASS PLUNGER.2005

$23.99

$

Usually ships in 4-12 days

0

55

Ariens 21546187

SCREW.5/16-18X3/4.SMGML.TAP/R

$

$

Not available

71

Ariens 21546558

HARNESS.IGN.CHASS.TEX.REAR.BAT

$

$

Not available

79

Ariens 21546201

SOCKET ASM.BULB.TWISTLOCK

$23.99

$

In Stock, only 1 left!

0

87

Ariens 21546457

SWITCH.INTRLCK.CLUTCH.CABLE.TX

$

$

Not available

90

Ariens 21547570

COVER TERMINAL BATTERY FR. TEX

$5.99

$

Usually ships in 4-12 days

0

92

Ariens 21546412

HARNESS.PIGTAIL.CONSLE.ROS.MLK

$29.99

$

Usually ships in 4-12 days

0

93

Ariens 21546295

SCREW.PLASTITE.10-14 X 2.0

$

$

Not available

94

Ariens 21546849

MODUAL REVERSE ROS

$

$

Not available
