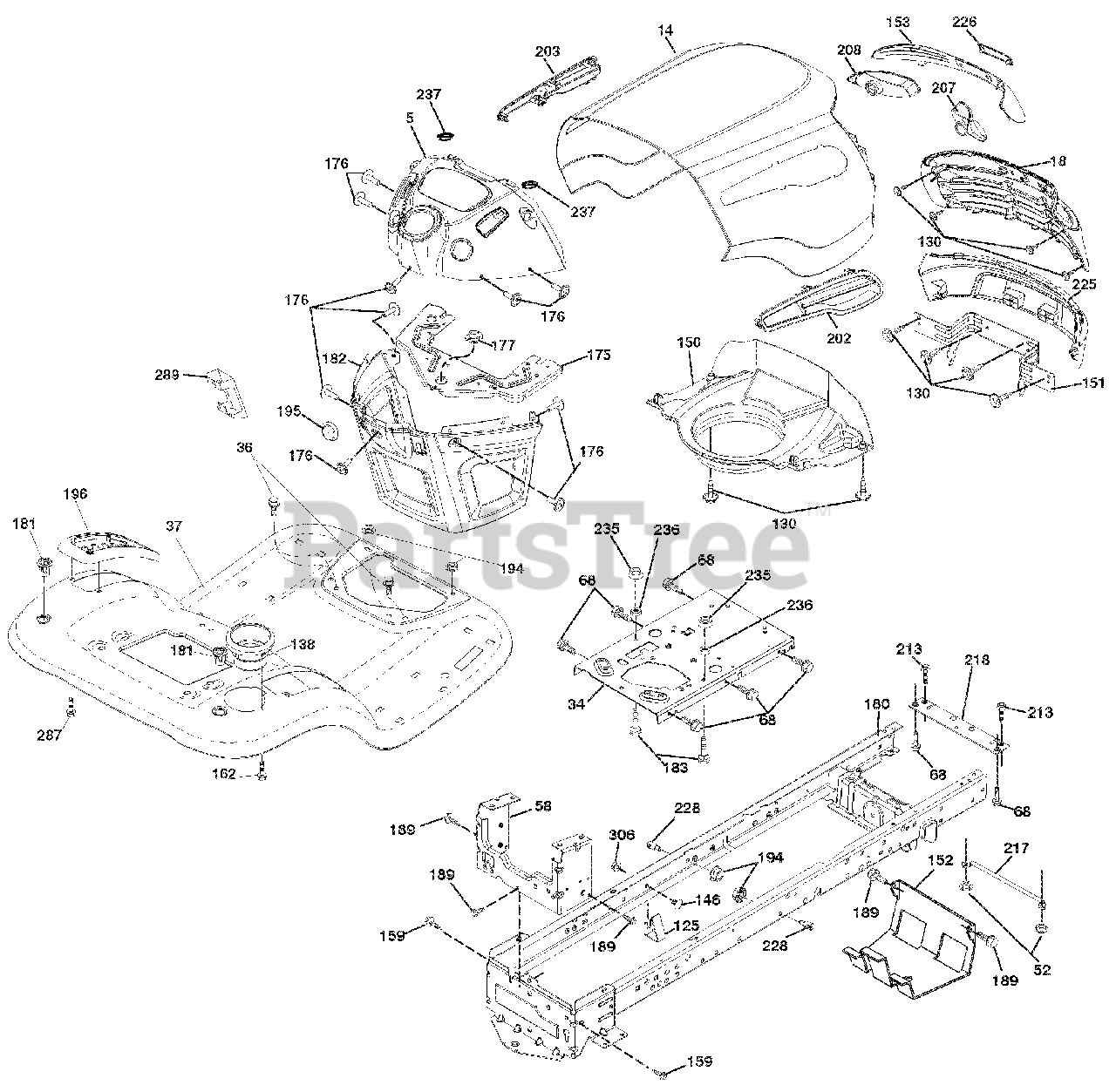

936065 (960460047-02) - Ariens 42" Lawn Tractor, Hydro > Parts Diagrams (12) > Chassis

  • Title
21548065

5

DASH.P/L.TEX.CABLE

Part# 21548065

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $65.26

21548085

14

HOOD

Part# 21548085

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $122.92

21548064

18

GRILLE.ELITE.ARIENS.BLACK

Part# 21548064

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $42.47

21548072

34

PLATE.ENGINE.WELDED.CHASSIS

Part# 21548072

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $55.84

21546187

36

SCREW.5/16-18X3/4.SMGML.TAP/R

Part# 21546187

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.58

21547643

37

FENDER TLT W/CPH W/FW 422

Part# 21547643

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $134.10

21546784

52

Nut, Hex, Crownlock 5/16-18

Part# 21546784

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.01

21546643

58

DRAWBAR.UPPER.2PC.SML.FENDER

Part# 21546643

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $55.84

21546199

68

SCREW.THDROL.5/16-18 X 1/2TYTT

Part# 21546199

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

21548397

125

CLIP.FUEL.LINE

Part# 21548397

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.63

21546675

130

Screw

Part# 21546675

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

21547560

138

CUPHOLDER TL TEX 428

Part# 21547560

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.58

21548398

146

BOLT

Part# 21548398

OEM Warranty Repair Part for Ariens

Not available

21548406

150

AIR DUCT

Part# 21548406

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

21548070

151

BRACKET.PIVOT

Part# 21548070

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $29.01

21546501

152

SHIELD.BROWNING.W/TEX

Part# 21546501

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.52

21548061

153

LENS.BAR

Part# 21548061

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $21.19

21546181

159

SCREW.HEXWSH THDR3/8-16X3/4.BL

Part# 21546181

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

21546106

162

SCREW.HEX.WSH.HI-LO.1/4X1/2UNC

Part# 21546106

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

21548053

175

CROSSMEMBER.LT

Part# 21548053

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $29.01

21546562

176

SCREW.#10-24X5/8.RND.QUDRX.GIM

Part# 21546562

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.93

21546357

177

BUSHING.STEERING.LT

Part# 21546357

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

21546670

180

CHASS.WLDMT.TL.12GA/2PC.18/22"

Part# 21546670

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $241.87

21547557

181

BUSHING MNT FEND CRGO BLK TEX

Part# 21547557

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21548059

182

DASH.LOWER.LT.CCS

Part# 21548059

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.02

21547383

183

BOLT.FIN.HEX.5/16-18 UNC X1-1/

Part# 21547383

OEM Warranty Repair Part for Ariens

Not available

21546180

189

SCREW.5/16-18X3/4.SMGML.TAP/BL

Part# 21546180

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21546789

194

Nut, Lock Hex Flange 5/16-18 u

Part# 21546789 (Superseded to 06530400)

OEM Warranty Repair Part for Ariens

Not available

21547532

195

PLUG HOLE DASH TOWER

Part# 21547532

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

21548087

196

CONSLE.ASM.DECK.LFT.BL/RBT.TLT

Part# 21548087

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $10.05

21548169

202

VENT RH

Part# 21548169

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

21548123

203

VENT.SIDE.LH

Part# 21548123

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

21548054

207

BEZEL.RH

Part# 21548054

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.11

21548055

208

BEZEL.LH

Part# 21548055

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

21546803

213

BOLT.HEX.HD.1/4-20UNC X 3/4

Part# 21546803

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.58

21546636

217

ROD.PIVOT.HOOD

Part# 21546636

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $17.83

21546400

218

X-PIECE.HOOD.STOP.NON/STEALTH

Part# 21546400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.42

21548086

225

BUMPER

Part# 21548086

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $302.36

21548084

226

ARIENS.LOGO.PLATE

Part# 21548084

OEM Warranty Repair Part for Ariens

Not available

21546343

228

STUD.FASTNER.W/'D'ANTI-ROTATIO

Part# 21546343

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.46

21546619

235

SPACER.FENDER

Part# 21546619

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.42

21546793

236

NUT.CENTER LOCK.5/16-18 UNC

Part# 21546793 (Superseded to 06500522)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.52

21547588

237

PLUG.MOUNT.CARGO

Part# 21547588

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.42

21546204

287

SCREW.HEX.WASHEAD.1/4-20 X 3/8

Part# 21546204

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21548058

289

PLUG.CRUISE.CONTROL

Part# 21548058

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

21546790

306

Nut, Hex, Flangelock 3/8-16

Part# 21546790 (Superseded to 06500736)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85
