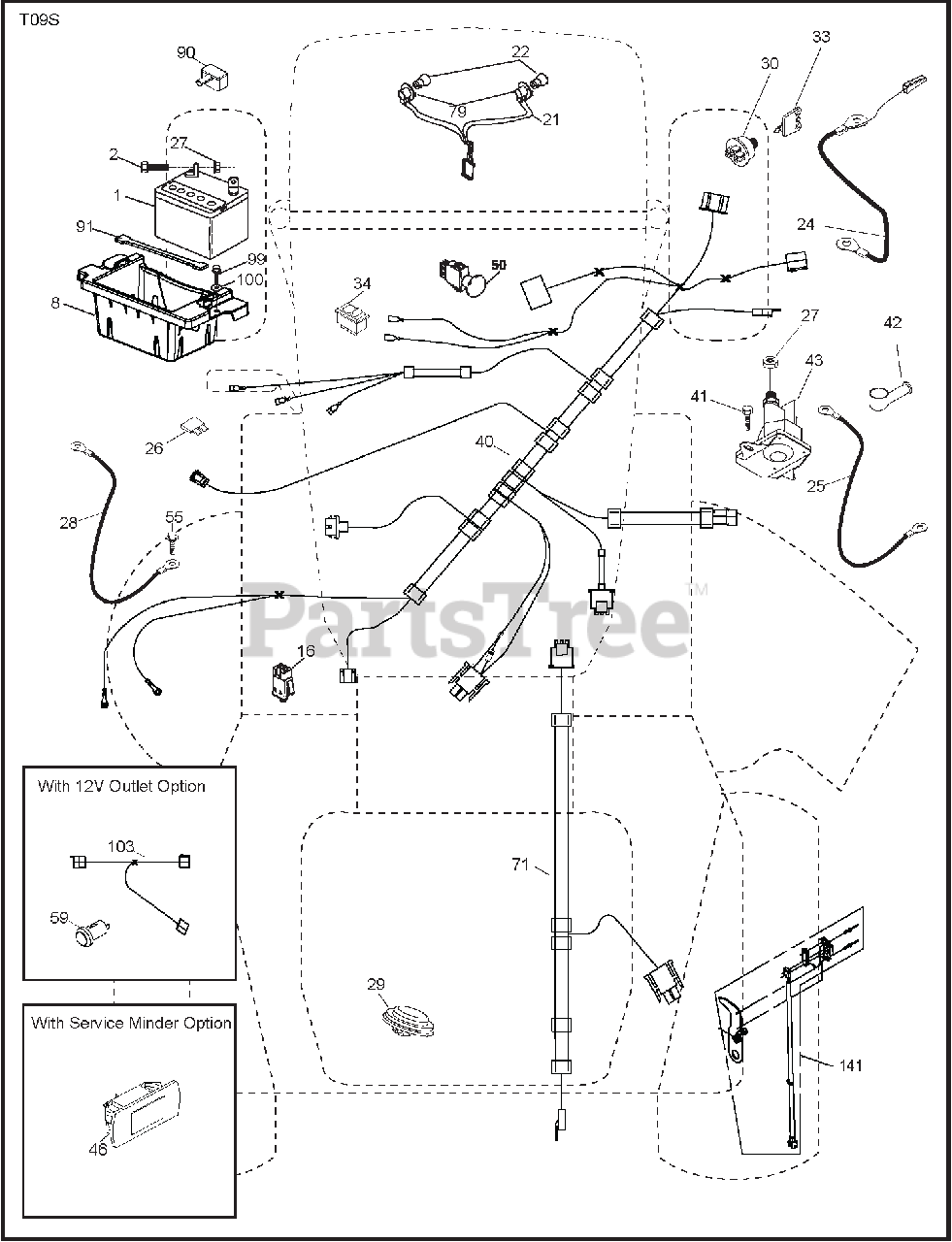

936069 (960460052-00) - Ariens 54" Lawn Tractor, Hydro Electrical Parts Diagram

54" Lawn Tractor, Hydro

Electrical Parts Diagram

  • Title

1

Ariens 21546162

BATTERY.12.VOLT.28.AMP.WET

$

$

Not available

2

Ariens 21546803

BOLT.HEX.HD.1/4-20UNC X 3/4

$3.49

$

In Stock, Qty 12

0

8

Ariens 21546233

BOX.BATTERY.MOUNT.FRONT.LT

$29.99

$

Usually ships in 4-12 days

0

16

Ariens 21546205

SWITCH.INTERLOCK.NONO.GRAY

$29.99

$

In Stock, Qty 18

0

21

Ariens 21547584

HARNESS ASM.LIGHT.22"(4152J)
(Superseded to 21546226)

Note: (4152J)

$

$

Not available

22

Ariens 21546673

BULB.LIGHT.#1156

$8.49

$

In Stock, only 1 left!

0

24

Ariens 21546556

CABLE.BTRY.PSWRE.DSH SOL.8"TEX

$16.99

$

Usually ships in 4-12 days

0

25

Ariens 21548544

CABLE.STARTER

$27.99

$

Usually ships in 4-12 days

0

26

Ariens 21546200

FUSE.20 AMP.

$

$

Not available

27

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$

$

Not available

28

Ariens 21546112

CABLE.GROUND.21"BLK.6 GA.90T

$10.99

$

Usually ships in 4-12 days

0

29

Ariens 21546574

SWITCH.SEAT.DELTA.OPC.9LB.

$23.99

$

In Stock, Qty 17

0

30

Ariens 21546319

SWITCH.IGN.DLTA.P-IN.ROS

$58.99

$

In Stock, Qty 20+

0

33

Ariens 21547339

KEY/CHAIN.BLISTER PACK.GEN.USA

$18.99

$

Usually ships in 4-12 days

0

34

Ariens 21546050

SWITCH.LIGHT/RESET.B/B/RED.

$

$

Not available

40

Ariens 21546569

HARNESS.IGN.DASH.HUSQ/PRED.

$

$

Not available

41

Ariens 21546210

Screw 1/4-20 x 1/2

$

$

Not available

42

Ariens 21546082

COVER.TERMINAL.RED

$

$

Not available

43

Ariens 21546294

SOLENOID.W/BRASS PLUNGER.2005

$23.99

$

Usually ships in 4-12 days

0

46

Ariens 21547327

HOUR METER
(Superseded to 21548893)

$32.99

$

Usually ships in 4-12 days

0

50

Ariens 21546196

SWITCH.PTO.8 TERMINAL.BLACK

$24.99

$

In Stock, Qty 16

0

55

Ariens 21546187

SCREW.5/16-18X3/4.SMGML.TAP/R

$

$

Not available

71

Ariens 21546323

HARNESS.IGN.CHASSIS.TEX

$

$

Not available

79

Ariens 21546201

SOCKET ASM.BULB.TWISTLOCK

$23.99

$

In Stock, only 1 left!

0

90

Ariens 21547570

COVER TERMINAL BATTERY FR. TEX

$5.99

$

Usually ships in 4-12 days

0

91

Ariens 21546274

STRAP.BATTERY.MOUNT.FRONT

$20.99

$

In Stock, Qty 7

0

99

Ariens 21546207

SCREW.HEXWSH.THDROL.1/4-20X3/4
(Superseded to 21548385)

$5.99

$

In Stock, only 1 left!

0

100

Ariens 21546277

WASHER.9/32 X 7/8 X 16GA.

$

$

Not available

141

Ariens 21548237

KIT G700/G730 ROS

$

$

Not available
