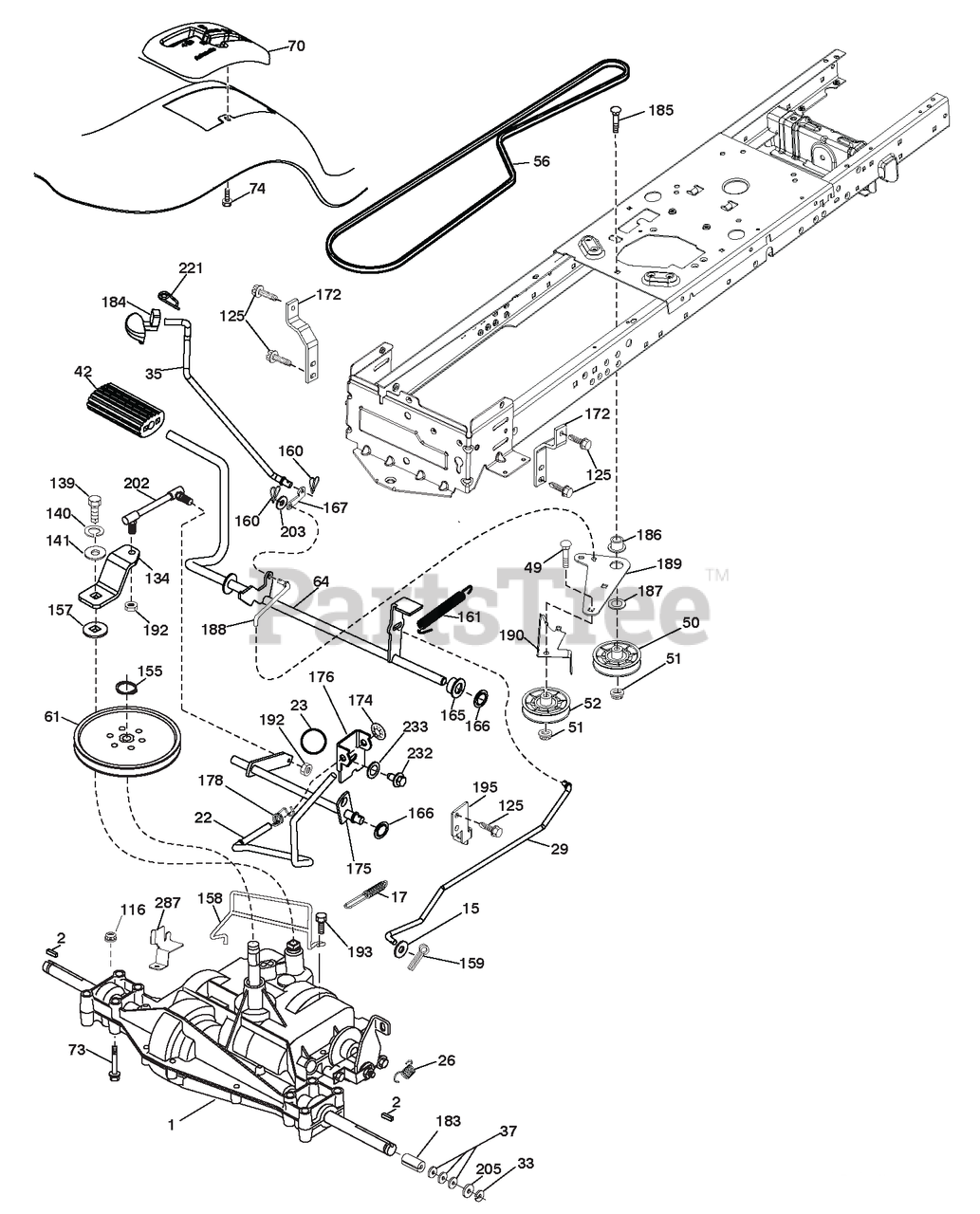

936072 (960460053-00) - Ariens 30" Lawn Tractor, Gear Drive Parts Diagram

30" Lawn Tractor, Gear

Drive Parts Diagram

  • Title
1

TRANSAXLE, PEERLESS 206-565

Note: (197941)(ORDER PARTS FROM TRANSAXLE MANUFACTURER.)

$

$

Not available

2

Ariens 21546070

KEY.SQUARE.2.0 X .1845/.1865

$4.99

$

Usually ships in 4-12 days

0

15

Ariens 21546284

WASHER.13/32 X 13/16 X 16 GA.

$4.99

$

In Stock, only 2 left!

0

17

Ariens 21546434

SPRING.BRAKE.PEERLESS/D6800.TX

$8.89

$

Usually ships in 4-12 days

0

22

Ariens 21546450

ROD.SHIFT.FENDER.TLT.2006

$158.87

$

Usually ships in 4-12 days

0

23

$

$

Not available

26

Ariens 21546444

SPRING.BRAKE.RTN.GR DR.TEX.006

$6.65

$

Usually ships in 4-12 days

0

29

Ariens 21546430

ROD.BRAKE.PEERLESS/D6800

$

$

Not available

33

Ariens 21546051

E-RING.#5133-75

$4.99

$

In Stock, Qty 20+

0

35

Ariens 21546453

ROD.BRAKE.PARKING.LT.TEX

$22.30

$

Usually ships in 4-12 days

0

37

Ariens 21546067

WASHER.25/32 X 1 1/4 X 16 GA.

$2.46

$

In Stock, Qty 20+

0

42

Ariens 21547538

COVER PEDAL BLK ROUND

$6.15

$

In Stock, Qty 14

0

49

Ariens 21546766

BOLT.RDHD.3/8-16UNCX1-3/4.GR5
(Superseded to 06200329)

$3.58

$

Usually ships in 5-11 days

0

50

Ariens 21546331

IDLER.FLAT.910"OFFSET

$13.53

$

In Stock, Qty 20+

0

51

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$2.24

$

In Stock, Qty 20+

0

52

Ariens 21546330

IDLER.V-GROOVE.910"OFFSET

$12.68

$

In Stock, Qty 20+

0

56

Ariens 21547082

V-Belt Ground Drive
(Superseded to 21547026)

$44.66

$

In Stock, Qty 7

0

61

$

$

Not available

64

Ariens 21546387

SHAFT ASM.PEDAL.BRAKE CONTROL

$

$

Not available

70

Ariens 21548089

CONSOLE SHIFT

$49.14

$

Usually ships in 4-12 days

0

73

Ariens 21547614

BOLT 5/16-18 X 2 1/2 G.5

$

$

Not available

74

Ariens 21546106

SCREW.HEX.WSH.HI-LO.1/4X1/2UNC

$5.53

$

Usually ships in 4-12 days

0

116

Ariens 21546789

Nut, Lock Hex Flange 5/16-18 u
(Superseded to 06530400)

$

$

Not available

125

Ariens 21546180

SCREW.5/16-18X3/4.SMGML.TAP/BL
(Superseded to 21547490)

$6.65

$

Usually ships in 4-12 days

0

134

Ariens 21546458

ARM.SHIFT.T/A.PMST.18"LT.TEX

$3.30

$

Usually ships in 4-12 days

0

139

Ariens 21546800

BOLT.1/4-28 UNF.GR8.W/PATCH

$5.53

$

In Stock, only 2 left!

0

140

Ariens 21546001

Washer, Lock 1/4

$7.66

$

In Stock, only 1 left!

0

141

Ariens 21546275

WASHER.9/32 X 3/4 X 10 GA.

$5.53

$

In Stock, Qty 8

0

155

Ariens 21546052

Ring, Retainer

$11.12

$

Usually ships in 4-12 days

0

157

Ariens 21546027

WASHER.PLATE.SHF..388 SQ.HOLE

$6.09

$

In Stock, only 2 left!

0

158

Ariens 21546333

KEEPER.T/A.PMS/D4360/D680.1820

$22.30

$

Usually ships in 4-12 days

0

159

Ariens 21546820

PIN.COTTER.1/8 X 3/4.CAD.
(Superseded to 06707300)

$1.68

$

In Stock, Qty 12

0

160

Ariens 21546178

RETAINER.CLIP(M).DIA.290

$

$

Not available

161

Ariens 21546028

SPRING.RETURN.CLUTCH.6.75

$11.07

$

In Stock, Qty 20+

0

165

Ariens 21546393

BUSHING.SHAFT.BRAKE.HAND CONTR

$6.09

$

Usually ships in 4-12 days

0

166

Ariens 21547349

NUT PUSH .625

$6.15

$

In Stock, Qty 20+

0

167

Ariens 21546608

LATCH.BRAKE.PARKING

$4.46

$

Usually ships in 5-11 days

0

172

Ariens 21546449

STRAP.TRQ.LH.GEAR DRIVE.LT.TEX

$6.15

$

Usually ships in 4-12 days

0

174

Ariens 21546431

NUT.PUSH..500

$6.15

$

In Stock, Qty 5

0

175

Ariens 21546460

SHAFT ASM.SHIFT.GR DRV.18"LTEX

$22.30

$

Usually ships in 4-12 days

0

176

Ariens 21546394

ARM.CLEVIS.ROD.SHIFT

$11.12

$

Usually ships in 4-12 days

0

178

Ariens 21546445

SPRING.SHIFT.GT.2006

$6.65

$

Usually ships in 4-12 days

0

183

Ariens 21546087

SPACER.AXLE.HYDRO/PEERLES

$7.32

$

In Stock, only 1 left!

0

184

Ariens 21548195

HANDLE.PARKING.BRAKE

$8.55

$

Usually ships in 4-12 days

0

185

Ariens 21546768

BOLT.RDHD.3/8-16UNC X2-3/4 GR5

$4.60

$

Usually ships in 5-11 days

0

186

Ariens 21546328

SPACER.RETAINER

$7.37

$

In Stock, only 4 left!

0

187

Ariens 21546287

WASHER.13/32 X 2 X 10 GA.

$3.34

$

Usually ships in 5-11 days

0

188

Ariens 21546329

LINK.CLUTCH.GROUND DRIVE

$17.83

$

In Stock, only 1 left!

0

189

Ariens 21546324

BELLCRANK.GROUNDRIVE.NSTG/NSTL

$14.44

$

In Stock, only 3 left!

0

190

Ariens 21546325

KEEPER.BELLCRANK.DRIVE.GROUND

$8.61

$

In Stock, Qty 5

0

192

Ariens 21546119

NUT.LOCK.CENTER.1/4-28 FNTHD.
(Superseded to 06533400)

$1.68

$

In Stock, Qty 10

0

193

Ariens 21546187

SCREW.5/16-18X3/4.SMGML.TAP/R

$7.37

$

Usually ships in 4-12 days

0

195

Ariens 21546438

BRACKET.ROD.BRK.PEERLESS/D6800
(Superseded to 21546439)

$

$

Not available

202

Ariens 21546461

LINK.SHIFT PMST.18HP

$

$

Not available

203

Ariens 21546279

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 06437200)

$2.52

$

In Stock, Qty 20+

0

205

Ariens 21546066

WASHER.25/32 X 1-5/8 X 16GA.

$3.49

$

In Stock, Qty 20+

0

221

Ariens 21546588

RETAINER.SPRING.CLIP.HANDLE

$6.15

$

In Stock, Qty 19

0

232

Ariens 21546818

BOLT.FIN HEX.7/16-14X1 GR5
(Superseded to 05958700)

$

$

Not available

233

Ariens 21546609

WASHER.SERRATED

$5.53

$

Usually ships in 4-12 days

0

287

Ariens 21548191

KEEPER.PULLEY

$

$

Not available
