936072 (960460053-00) - Ariens 30" Lawn Tractor, Gear Mower Lift Parts Diagram

30" Lawn Tractor, Gear

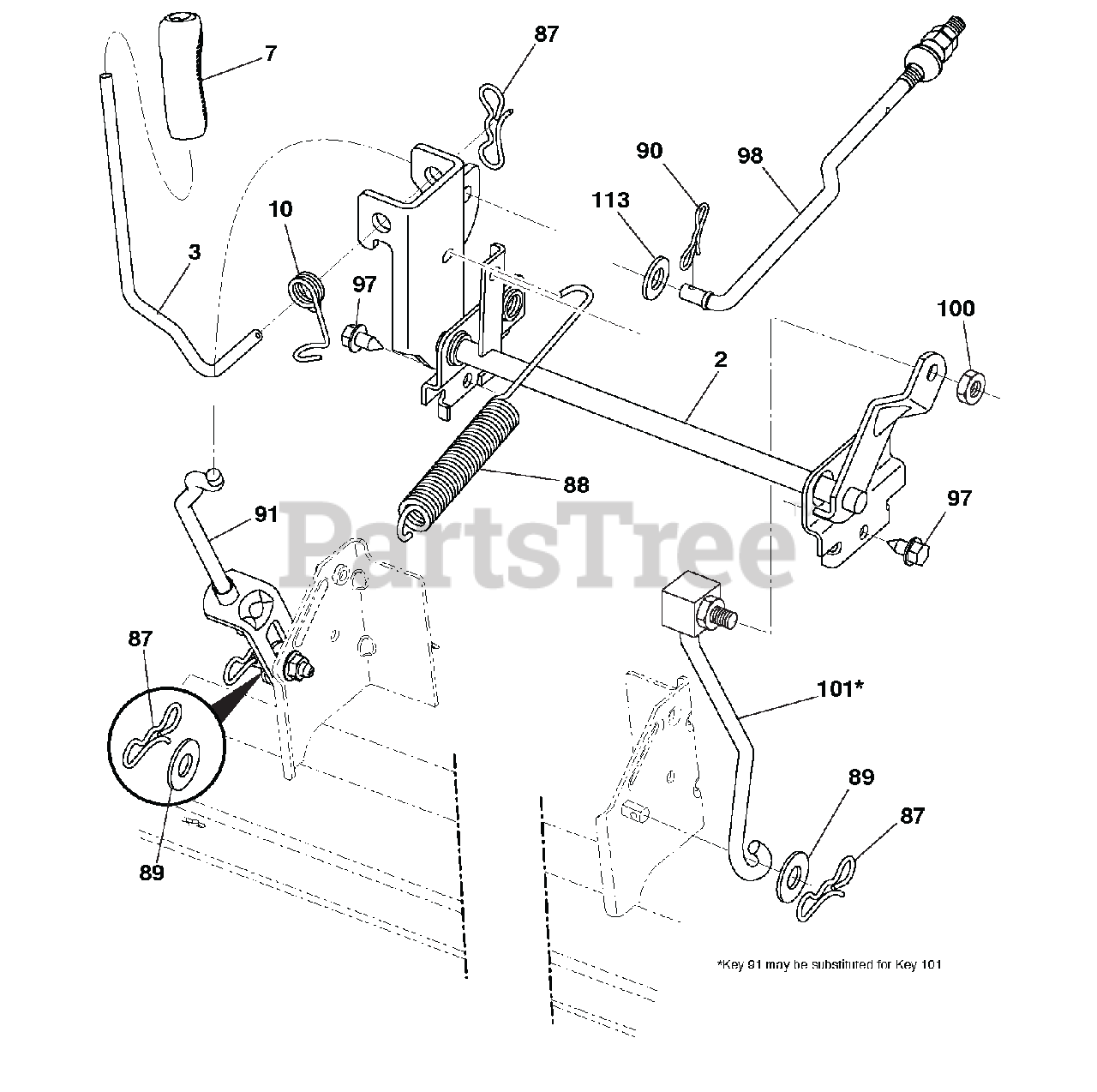

Mower Lift Parts Diagram

  • Title
2

Ariens 21547240

SHAFT ASM.LIFT.CROSS.HD.
(Superseded to 21547008)

$61.43

$

In Stock, only 1 left!

0

3

Ariens 21546358

LEVER.LIFT.HANDLE.LT

$

$

Not available

7

Ariens 21548049

GRIP LEVER 5625 LD BLACK 428

$6.15

$

In Stock, Qty 14

0

10

Ariens 21546397

SPRING.TORSION.HANDLE.LIFT

$6.15

$

In Stock, only 4 left!

0

87

Ariens 21546322

PIN.COTTER.7/16.BOW TIE LOCK

$3.99

$

In Stock, Qty 20+

0

88

Ariens 21546638

SPRING.LIFT ASSIST

$6.91

$

In Stock, Qty 16

0

89

Ariens 21546292

WASHER.CLEAR ZINC

$6.15

$

Usually ships in 4-12 days

0

90

Ariens 21546321

PIN.COTTER.5/16.BOW TIE LOCK

$3.99

$

In Stock, Qty 20+

0

91

Ariens 21546344

LINK ASM.LIFT.LH.REAR

$

$

Not available

97

Ariens 21546181

SCREW.HEXWSH THDR3/8-16X3/4.BL

$4.99

$

In Stock, Qty 20+

0

98

Ariens 21546359

LINK ASM.SUSP.FRONT.MWR.10.5

$

$

Not available

100

Ariens 21546794

NUT.CENTERLOCK.3/8-16 UNC.

$3.08

$

In Stock, Qty 11

0

101

Ariens 21546620

LINK ASM.LIFT.FIXED.38/42/46"

$18.44

$

Usually ships in 4-12 days

0

113

Ariens 21546290

WASHER.17/32 X 1-3/16 X 12 GA.

$7.37

$

In Stock, only 3 left!

0
