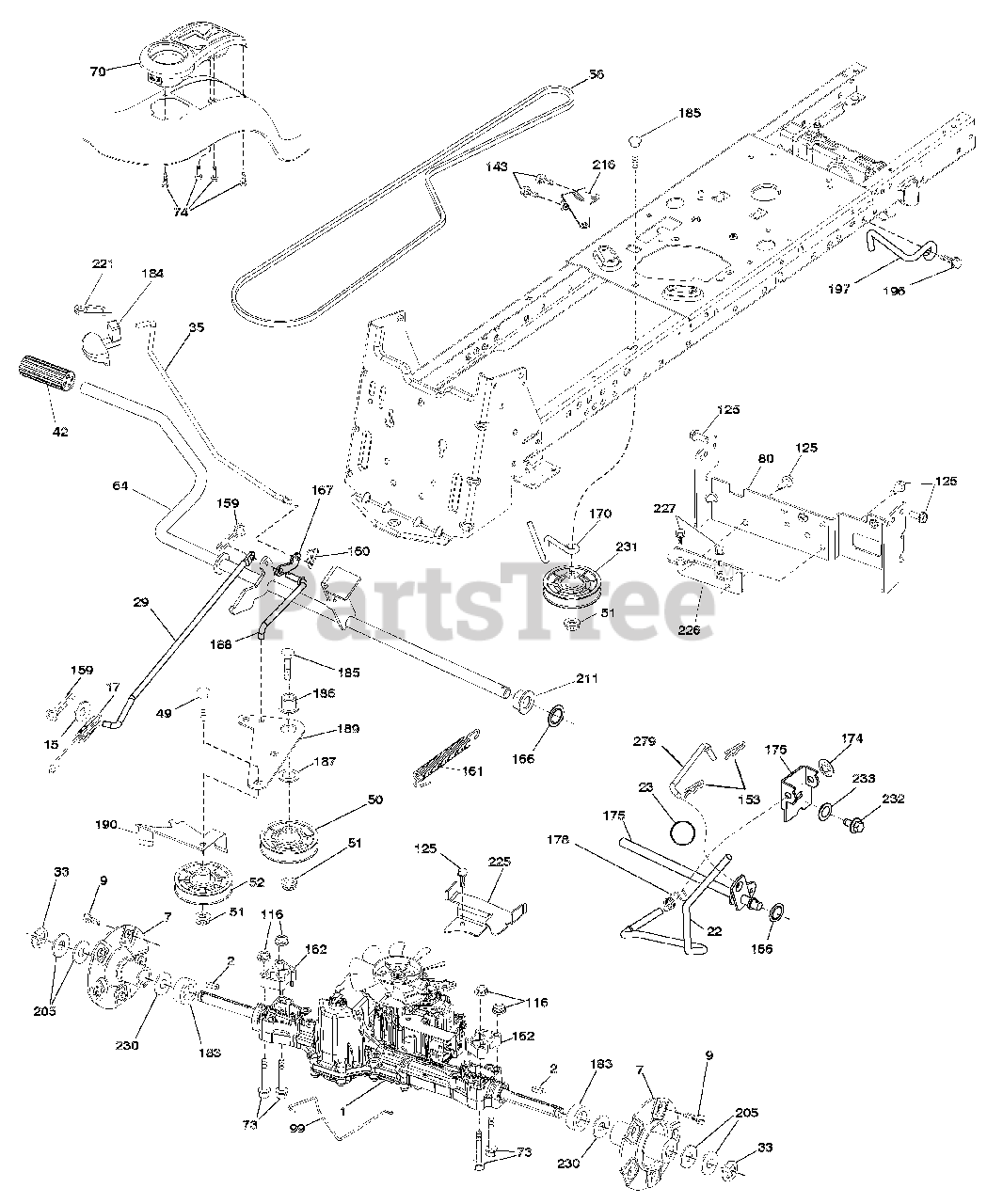

936078 (960460057-00) - Ariens 54" Lawn Tractor, Automatic > Parts Diagrams (12) > Drive

  • Title

1

TRANSAXLE, TUFFTORQ TTK46AW (448354) (ORDER PARTS FROM TRANSAXLE MANUFACTURER.)

Part#

Note: (448354) (ORDER PARTS FROM TRANSAXLE MANUFACTURER.)

Not available

21548243

2

KEY

Part# 21548243

OEM Warranty Repair Part for Ariens

Not available

21548246

7

HUB.ASM.WHEEL

Part# 21548246

OEM Warranty Repair Part for Ariens

Not available

21547293

9

BOLT HUB WHEEL

Part# 21547293

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.34

21546284

15

WASHER.13/32 X 13/16 X 16 GA.

Part# 21546284

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

21546654

17

SPRING.BRAKE.K46.GREEN

Part# 21546654

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.58

21548245

22

ROD.SHIFT

Part# 21548245

OEM Warranty Repair Part for Ariens

Not available

21546844

23

KNOB DELUXE

Part# 21546844

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

21546593

29

ROD.BRAKE.K46

Part# 21546593

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

21546051

33

E-RING.#5133-75

Part# 21546051

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

21548066

35

ROD.BRAKE.PARKING.LT.TEX

Part# 21548066

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.36

21547538

42

COVER PEDAL BLK ROUND

Part# 21547538

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.58

21546766

49

BOLT.RDHD.3/8-16UNCX1-3/4.GR5

Part# 21546766 (Superseded to 06200111)

OEM Warranty Repair Part for Ariens

Not available

21546331

50

IDLER.FLAT.910"OFFSET

Part# 21546331

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.17

21546790

51

Nut, Hex, Flangelock 3/8-16

Part# 21546790 (Superseded to 06500736)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

21546330

52

IDLER.V-GROOVE.910"OFFSET

Part# 21546330

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.17

21546080

56

V-BELT.MOWER.92.40.42/K46

Part# 21546080

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $25.70

21546387

64

SHAFT ASM.PEDAL.BRAKE CONTROL

Part# 21546387

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $29.01

21548060

70

CONSOLE.SHIFT STL.HYD.BLACK.TX

Part# 21548060

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $62.27

21548255

73

BOLT 5/16-18

Part# 21548255

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.42

21546106

74

SCREW.HEX.WSH.HI-LO.1/4X1/2UNC

Part# 21546106

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

21547733

80

STRAP.TORQUE.K46/18"TEX

Part# 21547733

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

21548249

99

ROD.BYPASS

Part# 21548249

OEM Warranty Repair Part for Ariens

Not available

21546789

116

Nut, Lock Hex Flange 5/16-18 u

Part# 21546789 (Superseded to 06530400)

OEM Warranty Repair Part for Ariens

Not available

21546180

125

SCREW.5/16-18X3/4.SMGML.TAP/BL

Part# 21546180

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21546199

143

SCREW.THDROL.5/16-18 X 1/2TYTT

Part# 21546199

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

21547536

153

RETAINER SPRING

Part# 21547536 (Superseded to 21546739)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

21546820

159

PIN.COTTER.1/8 X 3/4.CAD.

Part# 21546820 (Superseded to 06707300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

21546178

160

RETAINER.CLIP(M).DIA.290

Part# 21546178

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.58

21546028

161

SPRING.RETURN.CLUTCH.6.75

Part# 21546028

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.93

21548244

162

SPACER.TRANSAXLE

Part# 21548244

OEM Warranty Repair Part for Ariens

Not available

21547349

166

NUT PUSH .625

Part# 21547349

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21546608

167

LATCH.BRAKE.PARKING

Part# 21546608

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21546648

170

KEEPER.CENTER SPAN.1.688

Part# 21546648

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

21546431

174

NUT.PUSH..500

Part# 21546431

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21547558

175

SHAFT ARM SHIFT

Part# 21547558

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

21546394

176

ARM.CLEVIS.ROD.SHIFT

Part# 21546394

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

21546445

178

SPRING.SHIFT.GT.2006

Part# 21546445

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

21548247

183

SPACER.AXLE

Part# 21548247

OEM Warranty Repair Part for Ariens

Not available

21548195

184

HANDLE.PARKING.BRAKE

Part# 21548195

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $7.77

21546768

185

BOLT.RDHD.3/8-16UNC X2-3/4 GR5

Part# 21546768

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21546328

186

SPACER.RETAINER

Part# 21546328

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.58

21546287

187

WASHER.13/32 X 2 X 10 GA.

Part# 21546287

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.34

21546329

188

LINK.CLUTCH.GROUND DRIVE

Part# 21546329

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $17.83

21546324

189

BELLCRANK.GROUNDRIVE.NSTG/NSTL

Part# 21546324

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $10.01

21546325

190

KEEPER.BELLCRANK.DRIVE.GROUND

Part# 21546325

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.70

21546182

196

SCREW.3/8-16X1.SMGML.TAP/R.BLK

Part# 21546182

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.58

21548897

197

LINK CLUTCH ANTI-ROTATION

Part# 21548897

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.42

21546066

205

WASHER.25/32 X 1-5/8 X 16GA.

Part# 21546066

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.23

21546393

211

BUSHING.SHAFT.BRAKE.HAND CONTR

Part# 21546393

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

21546385

216

BRACKET.PULLEY.IDLER.WTEX

Part# 21546385

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

21546588

221

RETAINER.SPRING.CLIP.HANDLE

Part# 21546588

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21546589

225

KEEPER.BELT.TRANSAXLE.K46

Part# 21546589

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

21548248

226

BRACKET.MOUNT.TORQUE

Part# 21548248

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

21547613

227

SCREW 5/16-18 X 3/4

Part# 21547613

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

21546272

230

WASHER.HARDEN..793 X 1.637X060

Part# 21546272

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.34

21546622

231

IDLER.V-GROOVE.1.688"OFFSET

Part# 21546622

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.52

21546818

232

BOLT.FIN HEX.7/16-14X1 GR5

Part# 21546818 (Superseded to 05958700)

OEM Warranty Repair Part for Ariens

Not available

21546609

233

WASHER.SERRATED

Part# 21546609

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

21547580

279

LINK SHIFT T/A

Part# 21547580

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07
