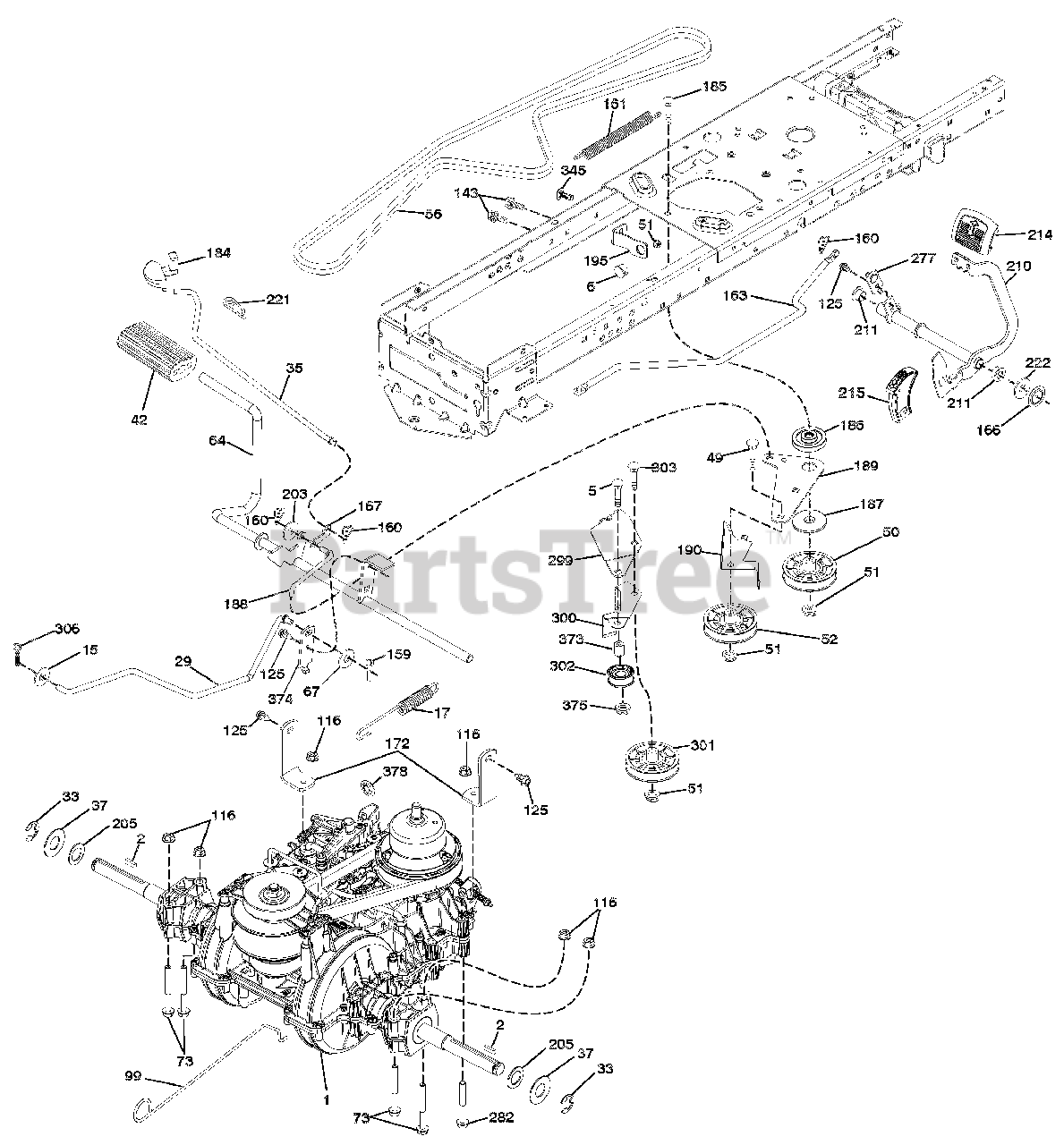

936083 (960460061-01) - Ariens 42" Lawn Tractor, Automatic > Parts Diagrams (13) > Drive

  • Title

1

TRANSMISSION, GENTRANS VATR (580486201) (ORDER PARTS FROM TRANSAXLE MANUFACTURER.)

Part#

Note: (580486201) (ORDER PARTS FROM TRANSAXLE MANUFACTURER.)

Not available

21546070

2

KEY.SQUARE.2.0 X .1845/.1865

Part# 21546070

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

21548291

5

BOLT.HEX.HS.3/8-16.UNCX2-1/4

Part# 21548291 (Superseded to 05962900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

21547114

6

Bushing Snap Nyl Blk Fuel Line

Part# 21547114

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

21546284

15

WASHER.13/32 X 13/16 X 16 GA.

Part# 21546284

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

21548554

17

SPRING BRAKE

Part# 21548554

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.23

21548555

29

ROD BRAKE

Part# 21548555

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

21546051

33

E-RING.#5133-75

Part# 21546051

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

21548066

35

ROD.BRAKE.PARKING.LT.TEX

Part# 21548066

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.36

21546272

37

WASHER.HARDEN..793 X 1.637X060

Part# 21546272

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

21547538

42

COVER PEDAL BLK ROUND

Part# 21547538

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21546766

49

BOLT.RDHD.3/8-16UNCX1-3/4.GR5

Part# 21546766 (Superseded to 06200111)

OEM Warranty Repair Part for Ariens

Not available

21546331

50

IDLER.FLAT.910"OFFSET

Part# 21546331

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $15.67

21546790

51

Nut, Hex, Flangelock 3/8-16

Part# 21546790 (Superseded to 06500736)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

21546330

52

IDLER.V-GROOVE.910"OFFSET

Part# 21546330

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $15.67

21546422

56

BELT.DRIVE.100.97"

Part# 21546422

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $40.90

21548307

64

SHAFT ASM. PEDAL BRAKE

Part# 21548307

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $47.18

21546283

67

Washer 13/32 x 13/16 x 12 Ga.

Part# 21546283 (Superseded to 06436200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

21546798

73

BOLT.HEX.FLGHD.5/16-18.GR.5

Part# 21546798

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.42

21548267

99

ROD.BYPASS

Part# 21548267

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

21546789

116

Nut, Lock Hex Flange 5/16-18 u

Part# 21546789 (Superseded to 06530400)

OEM Warranty Repair Part for Ariens

Not available

21546180

125

SCREW.5/16-18X3/4.SMGML.TAP/BL

Part# 21546180

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

21546199

143

SCREW.THDROL.5/16-18 X 1/2TYTT

Part# 21546199

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

21546820

159

PIN.COTTER.1/8 X 3/4.CAD.

Part# 21546820 (Superseded to 06707300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

21546178

160

RETAINER.CLIP(M).DIA.290

Part# 21546178

Note: (M).DIA.290

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.58

21546028

161

SPRING.RETURN.CLUTCH.6.75

Part# 21546028

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.93

21548556

163

ROD CONTROL PEDAL

Part# 21548556

OEM Warranty Repair Part for Ariens

Not available

21547349

166

NUT PUSH .625

Part# 21547349

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

21546608

167

LATCH.BRAKE.PARKING

Part# 21546608

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

21548347

172

STRAP TORQUE VARIATOR

Part# 21548347

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

21548069

184

HANDLE.PARKNG.BRAKE.LT.TEX.667

Part# 21548069 (Superseded to 21548914)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

21546768

185

BOLT.RDHD.3/8-16UNC X2-3/4 GR5

Part# 21546768

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21546328

186

SPACER.RETAINER

Part# 21546328

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21546287

187

WASHER.13/32 X 2 X 10 GA.

Part# 21546287

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.34

21546329

188

LINK.CLUTCH.GROUND DRIVE

Part# 21546329

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $17.83

21546324

189

BELLCRANK.GROUNDRIVE.NSTG/NSTL

Part# 21546324

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $10.01

21546325

190

KEEPER.BELLCRANK.DRIVE.GROUND

Part# 21546325

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.58

21548272

195

BRACKET.BRAKE

Part# 21548272

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

21546279

203

Washer 11/32 x 11/16 x 16 Ga.

Part# 21546279 (Superseded to 06437200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

21546066

205

WASHER.25/32 X 1-5/8 X 16GA.

Part# 21546066

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.75

21548306

210

WELDMENT PEDAL

Part# 21548306

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $49.19

21546061

211

BEARING.NYLON.BLK..629 ID.

Part# 21546061

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $7.77

21547005

214

PAD PEDAL FORWARD

Part# 21547005

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $7.77

21548301

215

CAP PEDAL REVERSE

Part# 21548301

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

21546588

221

RETAINER.SPRING.CLIP.HANDLE

Part# 21546588

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

21546821

222

WASHER.21/32X1-1/4.10GA.N/PLTD

Part# 21546821

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.42

21548557

277

LINK ROCKER PEDAL

Part# 21548557

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.93

21548239

282

BOLT.HEX. 5/16-18 X 3 GR. 5

Part# 21548239 (Superseded to 05962500)

OEM Warranty Repair Part for Ariens

Not available

21547209

299

Bracket Mount Idler

Part# 21547209

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

21547210

300

Keeper Idler Rear

Part# 21547210

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21547211

301

Pulley Idler V-Groove

Part# 21547211

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.11

21548266

302

PULLEY,IDLER.FLAT

Part# 21548266

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.76

21547133

303

Bolt RDHD SQNK 3/8-16 x 2-1/4

Part# 21547133

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.42

21547064

306

Pin Cotter 1/8 x 1 Cad

Part# 21547064

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

21547050

345

Bolt Rdhd Sht Sqnk 3/8-16 x 3/

Part# 21547050

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

21548269

373

SPACER.IDLER

Part# 21548269

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

21548270

374

ARM.BRAKE.CONTROL

Part# 21548270

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

21546785

375

Nut, Hex, Crownlock 3/8-16

Part# 21546785

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $2.75

21548349

378

NUT PUSH

Part# 21548349

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.23
