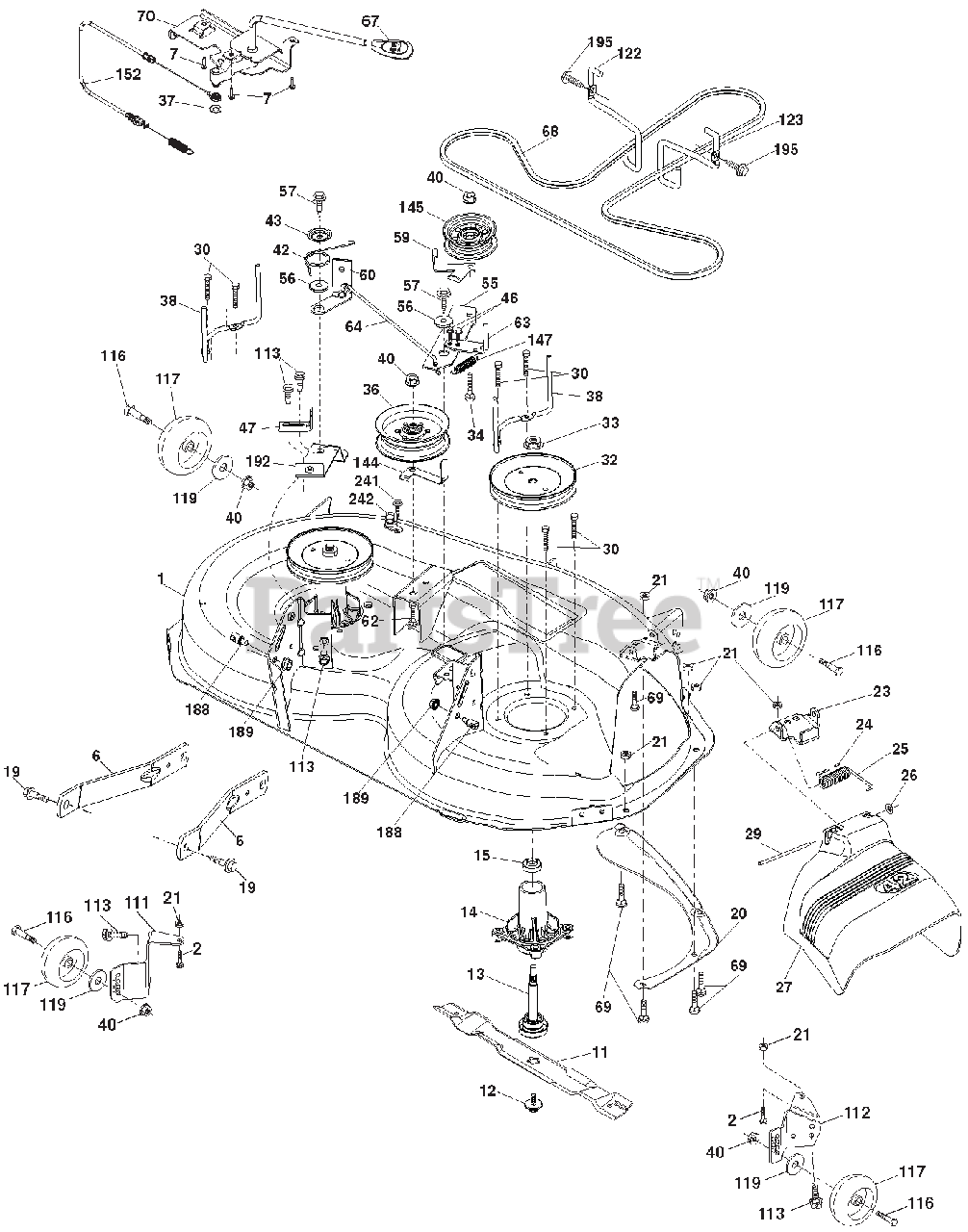

936083 (960460061-01) - Ariens 42" Lawn Tractor, Automatic > Parts Diagrams (13) > Mower Deck

  • Title
21547805

1

DECK.PNT.WELDMENT.42"

Part# 21547805

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $362.84

21547167

2

Bolt

Part# 21547167

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.23

21546347

6

ARM.SUSPENSION.MOWER.REAR.LD

Part# 21546347

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $10.05

21546675

7

Screw

Part# 21546675

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

21546095

11

BLADE.MOWER.42"HI LIFT PREMIUM

Part# 21546095

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

21549011

12

SCREW 7/16-20 X 1

Part# 21549011

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.70

21549009

13

SHAFT ASM

Part# 21549009 (Superseded to 21549012)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $36.88

21546238

14

HOUSING.MANDREL.4PT.SERVICE

Part# 21546238

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $36.88

21549010

15

BEARING

Part# 21549010 (Superseded to 21546046)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.93

21546411

19

BOLT.SHOULDER

Part# 21546411

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.58

21546144

20

BAFFLE.VORTEX.42.STD/HEAVY DTY

Part# 21546144

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.52

21546784

21

Nut, Hex, Crownlock 5/16-18

Part# 21546784

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

21546296

23

BRACKET.DEFLECTOR.38/42"2005

Part# 21546296

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21546025

24

CAP.SLEEVE..80X.112.BLK.MOWER

Part# 21546025

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

21546416

25

SPRING.TORSION.DFL.38/42/46.GR

Part# 21546416

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.70

21546045

26

NUT.PUSH.PHOS.& OIL

Part# 21546045

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.76

21547728

27

SHIELD.DEFLECTOR.

Part# 21547728 (Superseded to 21546305)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $31.29

21546081

29

ROD.HINGE.42/46"

Part# 21546081

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $2.75

21546192

30

SCREW.THD ROLL.DOD PT.HEX

Part# 21546192 (Superseded to 21548816)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.23

21546446

32

PULLEY.MANDREL.5.438 PD.42"

Part# 21546446

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.93

21549012

32

MANDREL ASM

Part# 21549012

Note: (INCLUDES HOUSING (KEY #14), SHAFT ASSEMBLY (KEY #13), AND BEARING (KEY #15) ONLY - PULLEY/NUT/WASHER AND BLADE BOLT/WASHERS NOT INCLUDED)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $36.88

21546554

33

NUT.FLANGE.LOCK.TOP

Part# 21546554

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21546765

34

BOLT.CARR.SH.3/8-16X1-1/2.GR5

Part# 21546765 (Superseded to 06224200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

21546440

36

PULLEY.IDLER.4.50.RAW

Part# 21546440

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $28.26

21546284

37

WASHER.13/32 X 13/16 X 16 GA.

Part# 21546284

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

21547367

38

KEEPER.BELT.MANDREL.PULLEY

Part# 21547367

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.70

21546790

40

Nut, Hex, Flangelock 3/8-16

Part# 21546790 (Superseded to 06500736)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

21546478

42

SPRING.TORSION.BRAKE

Part# 21546478

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

21546423

43

SPRING.TORSION.RETAINER

Part# 21546423

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

21546091

46

SCREW.THD.ROLL.1/4-20 X 5/8

Part# 21546091

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

21546421

47

BRACKET.CLUTCH.CABLE

Part# 21546421

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.40

21547834

55

IDLER.ARM

Part# 21547834

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.58

21546482

56

SPACER.RETAINER

Part# 21546482

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21546182

57

SCREW.3/8-16X1.SMGML.TAP/R.BLK

Part# 21546182

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21546103

59

GUARD.TUV.IDLER

Part# 21546103

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $7.82

21546429

60

ARM.BRAKE.MOWER.42"

Part# 21546429

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $13.41

21546767

62

BOLT.RD.HD.SQ.NK.3/8-16UNC X 2

Part# 21546767 (Superseded to 06203200)

OEM Warranty Repair Part for Ariens

Not available

21546499

63

ARM.BRAKE.MOWER

Part# 21546499

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.52

21546511

64

LINKAGE.BRAKE

Part# 21546511 (Superseded to 21547237)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.52

21547741

67

HANDLE.CLUTCH.CABLE.LT TEX.428

Part# 21547741

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

21547238

68

BELT.DRIVE.100.97"

Part# 21547238 (Superseded to 21547025)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $52.14

21546770

69

BOLT.RDHD.SQNK.5/16-18 X 5/8

Part# 21546770

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

21548121

70

CLUTCH.ASM.MANUAL

Part# 21548121

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $67.07

21547329

111

BRACKET WHEEL GAUGE LH

Part# 21547329

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $10.05

21547330

112

BRACKET WHEEL GAUGE RH

Part# 21547330

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

21546179

113

BOLT.5/16-18HEX.WHS.HD.LCKSERR

Part# 21546179

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21547537

116

BOLD SHLD "A" 2.41 "B" 1.66

Part# 21547537 (Superseded to 21546741)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $2.76

21546267

117

WHEEL.GAGE.HALF.SPOKED

Part# 21546267

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

21546281

119

Washer 3/8 x 7/8 x 14 Ga.

Part# 21546281

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

21546424

122

KEEPER.BELT.ENGINE.LH.LT.TEX

Part# 21546424

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.17

21546426

123

KEEPER.BELT.ENGINE.RH.LT.TEX

Part# 21546426

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.17

21546489

144

KEEPER.BELT.MOWER

Part# 21546489 (Superseded to 21546490)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21546308

145

PULLEY.IDLER 48"PRIMARY

Part# 21546308

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.44

21546579

147

SPRING.RETURN

Part# 21546579

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21548470

152

CABLE.CLUTCH.MANUAL

Part# 21548470

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $25.70

21546343

188

STUD.FASTNER.W/'D'ANTI-ROTATIO

Part# 21546343

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.46

21546789

189

Nut, Lock Hex Flange 5/16-18 u

Part# 21546789 (Superseded to 06530400)

OEM Warranty Repair Part for Ariens

Not available

21546428

192

BRACKET.BRAKE.STAND.LH

Part# 21546428

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $10.05

21546180

195

SCREW.5/16-18X3/4.SMGML.TAP/BL

Part# 21546180

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

21547128

241

Screw

Part# 21547128

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21547345

242

PORT WASHOUT

Part# 21547345

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.70

21547347

- -

COUPLING QUICK CONNECT

Part# 21547347

Note: NOT SHOWN

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.70

21548317

- -

DECK.REPLACEMENT

Part# 21548317

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $604.77
