936086 (960460064-00) - Ariens 46" Lawn Tractor, Automatic Mower Deck Parts Diagram

46" Lawn Tractor, Automatic

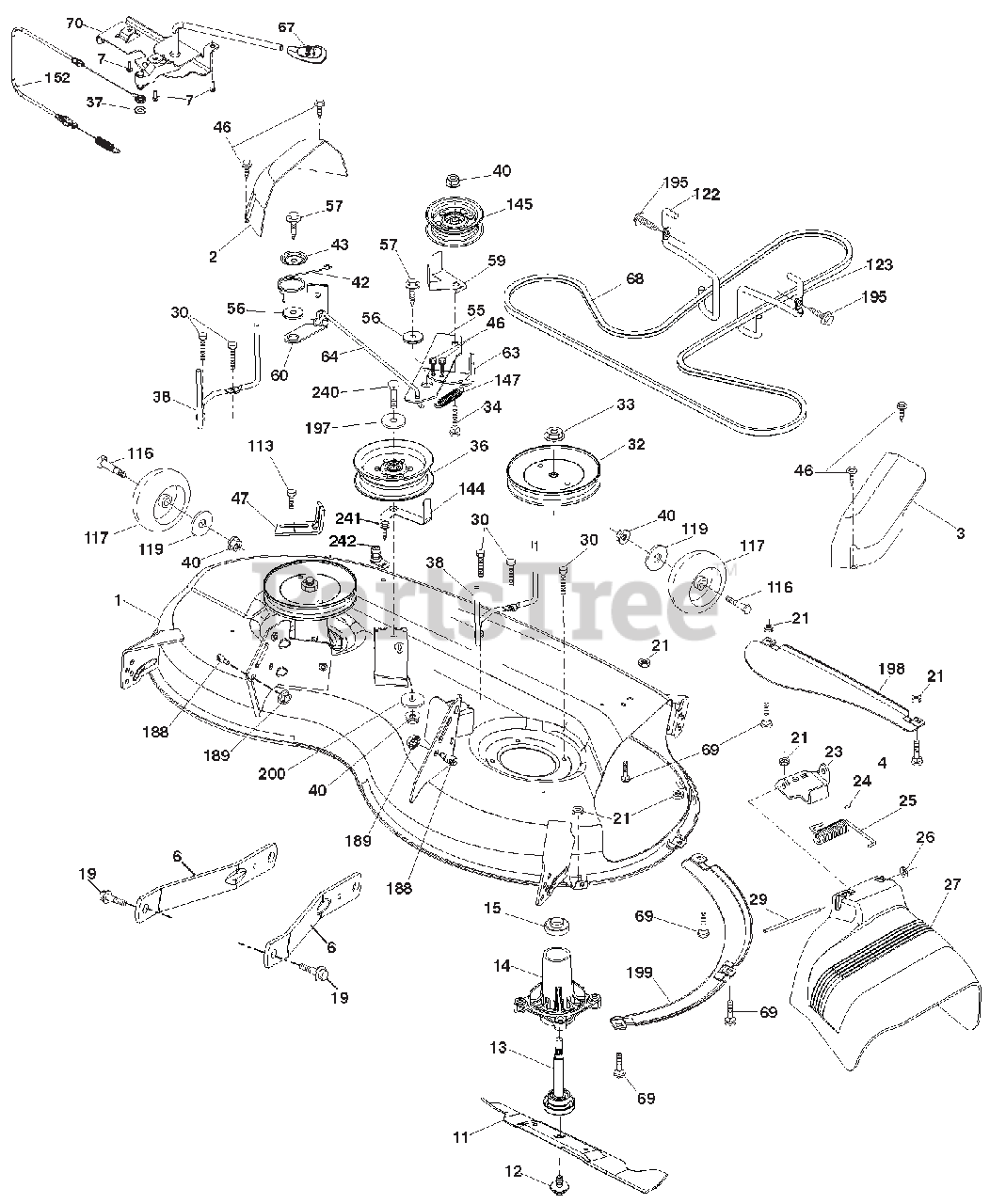

Mower Deck Parts Diagram

  • Title

1

Ariens 21548568

MOWER.HOUSING

$

$

Not available

2

Ariens 21546618

COVER.MANDREL.LH.46"

$65.99

$

In Stock, only 2 left!

0

3

Ariens 21546617

COVER.MANDREL.RH.46"

$

$

Not available

4

Ariens 21546803

BOLT.HEX.HD.1/4-20UNC X 3/4

$3.49

$

In Stock, Qty 12

0

6

Ariens 21546347

ARM.SUSPENSION.MOWER.REAR.LD

$

$

Not available

7

Ariens 21546675

Screw

$7.49

$

Usually ships in 4-12 days

0

11

Ariens 21546611

BLADE.MOWER.46"HI LIFT BAGGER

$17.99

$

Usually ships in 3-10 days

0

12

Ariens 21549011

SCREW 7/16-20 X 1

$

$

Not available

13

Ariens 21549009

SHAFT ASM
(Superseded to 21549012)

$112.99

$

In Stock, Qty 20+

0

14

Ariens 21546238

HOUSING.MANDREL.4PT.SERVICE
(Superseded to 21549012)

$112.99

$

In Stock, Qty 20+

0

15

Ariens 21549010

BEARING
(Superseded to 21546046)

$10.99

$

In Stock, Qty 20+

0

19

Ariens 21546411

BOLT.SHOULDER

$13.99

$

In Stock, Qty 20+

0

21

Ariens 21546784

Nut, Hex, Crownlock 5/16-18

$1.99

$

Usually ships in 4-12 days

0

23

Ariens 21546296

BRACKET.DEFLECTOR.38/42"2005

$10.99

$

In Stock, Qty 20+

0

24

Ariens 21546025

CAP.SLEEVE..80X.112.BLK.MOWER

$11.99

$

In Stock, Qty 20+

0

25

Ariens 21546416

SPRING.TORSION.DFL.38/42/46.GR

$17.99

$

In Stock, Qty 18

0

26

Ariens 21546045

NUT.PUSH.PHOS.& OIL

$8.49

$

In Stock, Qty 20+

0

27

Ariens 21546610

SHIELD.DEFLECTOR.MOWER 46"BLK

$158.99

$

In Stock, Qty 14

0

29

Ariens 21546081

ROD.HINGE.42/46"

$15.99

$

Usually ships in 4-12 days

0

30

Ariens 21546192

SCREW.THD ROLL.DOD PT.HEX
(Superseded to 21548816)

$11.99

$

In Stock, Qty 20+

0

32

Ariens 21546446

PULLEY.MANDREL.5.438 PD.42"

$23.99

$

In Stock, Qty 20+

0

32

Ariens 21549012

MANDREL ASM

Note: (INCLUDES HOUSING (KEY# 14), SHAFT ASSEMBLY (KEY# 13), BEARING (KEY# 15) AND NUT (KEY #33) ONLY - PULLEY/WASHER AND BLADE BOLT/WASHER NOT INCLUDED)

$112.99

$

In Stock, Qty 20+

0

33

Ariens 21546554

NUT.FLANGE.LOCK.TOP

$9.49

$

Usually ships in 4-12 days

0

34

Ariens 21546765

BOLT.CARR.SH.3/8-16X1-1/2.GR5
(Superseded to 06224200)

$4.99

$

In Stock, Qty 20+

0

36

Ariens 21546440

PULLEY.IDLER.4.50.RAW

$46.99

$

In Stock, Qty 20+

0

37

Ariens 21546284

WASHER.13/32 X 13/16 X 16 GA.

$

$

Not available

38

Ariens 21547367

KEEPER.BELT.MANDREL.PULLEY

$7.99

$

In Stock, Qty 20+

0

40

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.99

$

In Stock, Qty 18

0

42

Ariens 21546478

SPRING.TORSION.BRAKE

$

$

Not available

43

Ariens 21546423

SPRING.TORSION.RETAINER

$

$

Not available

46

Ariens 21546091

SCREW.THD.ROLL.1/4-20 X 5/8
(Superseded to 07400135)

$2.99

$

In Stock, Qty 20+

0

47

Ariens 21546421

BRACKET.CLUTCH.CABLE

$

$

Not available

55

Ariens 21546419

IDLER.ARM

$

$

Not available

56

Ariens 21546482

SPACER.RETAINER

$7.99

$

In Stock, Qty 14

0

57

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$

$

Not available

59

Ariens 21546103

GUARD.TUV.IDLER

$15.99

$

Usually ships in 4-12 days

0

60

Ariens 21546497

ARM.BRAKE.MOWER.38/46"LH.TEX

$

$

Not available

63

Ariens 21546499

ARM.BRAKE.MOWER

$40.99

$

In Stock, Qty 20+

0

64

Ariens 21548125

LINAGE.ASM.BRAKE

$

$

Not available

67

Ariens 21547741

HANDLE.CLUTCH.CABLE.LT TEX.428

$

$

Not available

68

Ariens 21546607

V-BELT.DRIVE.MWR.MECHANICL.46"

$66.99

$

In Stock, Qty 20+

0

69

Ariens 21546770

BOLT.RDHD.SQNK.5/16-18 X 5/8
(Superseded to 596136401)

$3.49

$

In Stock, Qty 20+

0

70

Ariens 21548121

CLUTCH.ASM.MANUAL

$

$

Not available

113

Ariens 21546179

BOLT.5/16-18HEX.WHS.HD.LCKSERR

$10.99

$

In Stock, Qty 20+

0

116

Ariens 21547537

BOLD SHLD "A" 2.41 "B" 1.66
(Superseded to 21546741)

$

$

Not available

117

Ariens 21546267

WHEEL.GAGE.HALF.SPOKED

$11.99

$

Usually ships in 4-12 days

0

119

Ariens 21546281

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

122

Ariens 21546424

KEEPER.BELT.ENGINE.LH.LT.TEX

$6.99

$

In Stock, Qty 20+

0

123

Ariens 21546426

KEEPER.BELT.ENGINE.RH.LT.TEX

$7.99

$

In Stock, Qty 16

0

144

Ariens 21546489

KEEPER.BELT.MOWER
(Superseded to 21546490)

$

$

Not available

145

Ariens 21546308

PULLEY.IDLER 48"PRIMARY

$58.99

$

In Stock, Qty 20+

0

147

Ariens 21546577

SPRING.RETURN.DECK.38/46"

$

$

Not available

152

Ariens 21548470

CABLE.CLUTCH.MANUAL

$59.99

$

In Stock, Qty 14

0

188

Ariens 21546343

STUD.FASTNER.W/'D'ANTI-ROTATIO

$9.99

$

Usually ships in 4-12 days

0

189

Ariens 21546789

Nut, Lock Hex Flange 5/16-18 u
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

195

Ariens 21546181

SCREW.HEXWSH THDR3/8-16X3/4.BL
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

197

Ariens 21546283

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

198

Ariens 21546584

BAFFLE.CENTER.FRONT

$

$

Not available

199

Ariens 21546586

BAFFLE.FRONT.RH

$14.99

$

In Stock, Qty 20+

0

200

Ariens 21546651

WASHER.13/32 X 1 X 1/2.11GAHRD

$

$

Not available

240

Ariens 21546799

BOLT.FIN.HEX.3/8-16X 2-1/4 GR5

$6.49

$

Usually ships in 4-12 days

0

241

Ariens 21547128

Screw

$

$

Not available

242

Ariens 21547345

PORT WASHOUT

$18.99

$

In Stock, Qty 20+

0

243

Ariens 21547347

COUPLING QUICK CONNECT

Note: NOT SHOWN

$11.99

$

In Stock, Qty 5

0

244

Ariens 21547593

REPLACEMENT MOWER, COMPLETE

$

$

Not available
