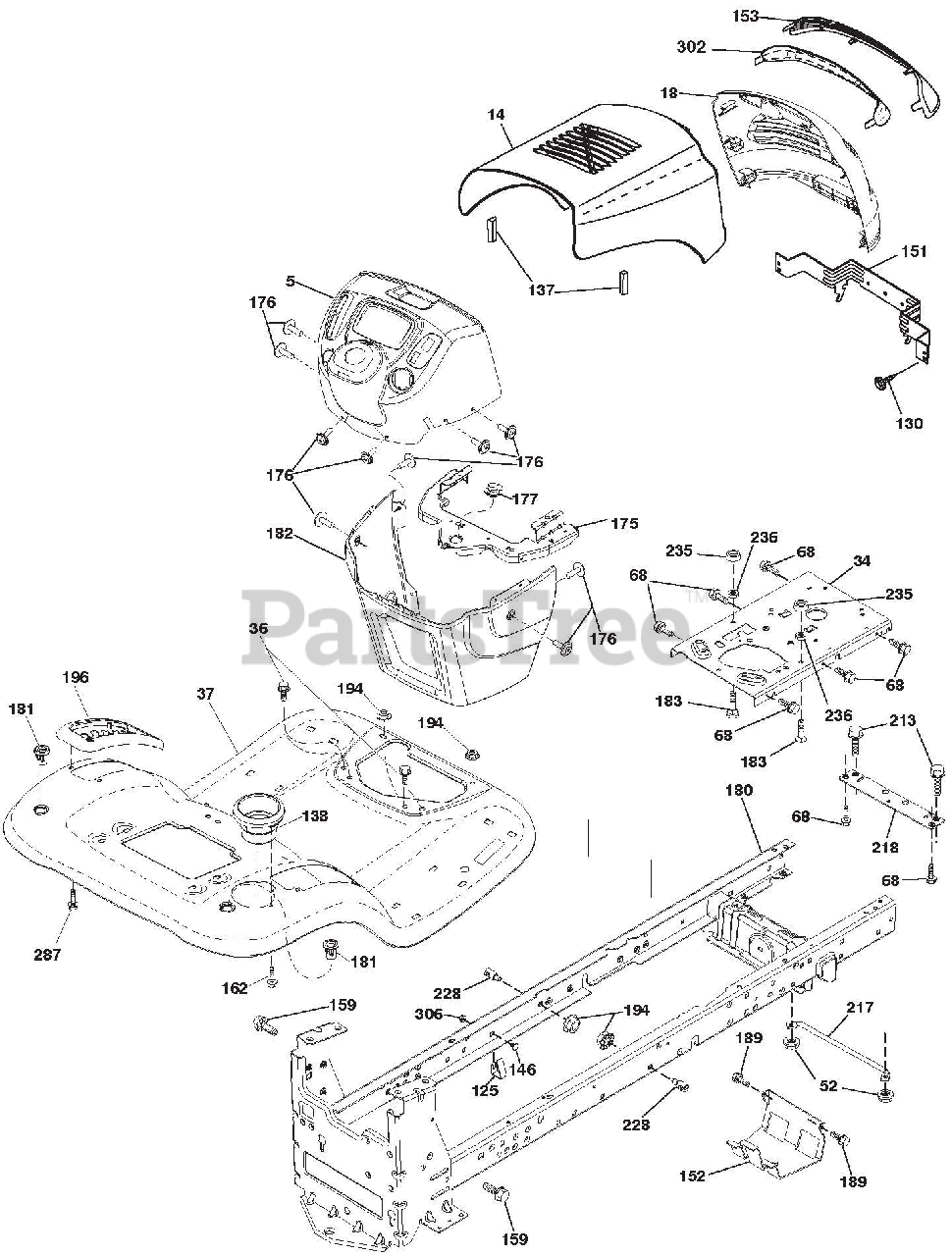

936093 (960460067-00) - Ariens 42" Lawn Tractor, Gear Chassis Parts Diagram

42" Lawn Tractor, Gear

Chassis Parts Diagram

  • Title

5

Ariens 21548174

DASH

$85.99

$

Usually ships in 4-12 days

0

14

Ariens 21547890

HOOD

$95.99

$

Usually ships in 4-12 days

0

18

Ariens 21547891

GRILLE

$

$

Not available

34

Ariens 21548072

PLATE.ENGINE.WELDED.CHASSIS

$

$

Not available

36

Ariens 21546187

SCREW.5/16-18X3/4.SMGML.TAP/R

$

$

Not available

37

Ariens 21547643

FENDER TLT W/CPH W/FW 422

$242.99

$

Usually ships in 4-12 days

0

52

Ariens 21546784

Nut, Hex, Crownlock 5/16-18

$1.99

$

Usually ships in 4-12 days

0

68

Ariens 21546199

SCREW.THDROL.5/16-18 X 1/2TYTT

$7.49

$

In Stock, only 1 left!

0

125

Ariens 21548397

CLIP.FUEL.LINE

$

$

Not available

130

Ariens 21546675

Screw

$7.49

$

Usually ships in 4-12 days

0

137

Ariens 21546230

BUMPER.HOOD.LARGE. 1.75"

$18.99

$

Usually ships in 4-12 days

0

138

Ariens 21547560

CUPHOLDER TL TEX 428

$

$

Not available

146

Ariens 21548398

BOLT

$

$

Not available

151

Ariens 21547052

Bracket Pivot

$

$

Not available

152

Ariens 21546501

SHIELD.BROWNING.W/TEX

$

$

Not available

153

Ariens 21547892

LENS.GRILLE.BAR

$

$

Not available

159

Ariens 21546181

SCREW.HEXWSH THDR3/8-16X3/4.BL
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

162

Ariens 21546106

SCREW.HEX.WSH.HI-LO.1/4X1/2UNC

$

$

Not available

175

Ariens 21546317

CROSSMEMBER.LT

$

$

Not available

176

Ariens 21546562

SCREW.#10-24X5/8.RND.QUDRX.GIM

$

$

Not available

177

Ariens 21546357

BUSHING.STEERING.LT

$11.99

$

In Stock, only 3 left!

0

180

Ariens 21547555

CHASS WLDMT TL 12 GA/2PC 18/22

$

$

Not available

181

Ariens 21547557

BUSHING MNT FEND CRGO BLK TEX

$7.49

$

Usually ships in 4-12 days

0

182

Ariens 21546302

DASH LOWER.LT.CCS

$

$

Not available

183

Ariens 21547383

BOLT.FIN.HEX.5/16-18 UNC X1-1/

$

$

Not available

189

Ariens 21546180

SCREW.5/16-18X3/4.SMGML.TAP/BL
(Superseded to 21547490)

$13.99

$

In Stock, Qty 7

0

191

Ariens 21547592

INSERT REFLECTIVE RH

$

$

Not available

194

Ariens 21546789

Nut, Lock Hex Flange 5/16-18 u
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

196

Ariens 21547812

CONSOLE ASSEMBLY

$

$

Not available

213

Ariens 21546804

Bolt, Hex Head 5/16-18 x 3/4

$8.99

$

In Stock, only 4 left!

0

217

Ariens 21546636

ROD.PIVOT.HOOD

$

$

Not available

218

Ariens 21546400

X-PIECE.HOOD.STOP.NON/STEALTH

$6.99

$

In Stock, only 1 left!

0

225

Ariens 21547953

BUMPER
(Superseded to 21547747)

$

$

Not available

228

Ariens 21546343

STUD.FASTNER.W/'D'ANTI-ROTATIO

$9.99

$

Usually ships in 4-12 days

0

235

Ariens 21546619

SPACER.FENDER

$

$

Not available

236

Ariens 21546793

NUT.CENTER LOCK.5/16-18 UNC
(Superseded to 06500522)

$1.99

$

In Stock, only 1 left!

0

287

Ariens 21546204

SCREW.HEX.WASHEAD.1/4-20 X 3/8

$5.99

$

In Stock, only 2 left!

0

302

Ariens 21547058

Insert Lens Reflect

$

$

Not available

306

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.99

$

In Stock, Qty 18

0
