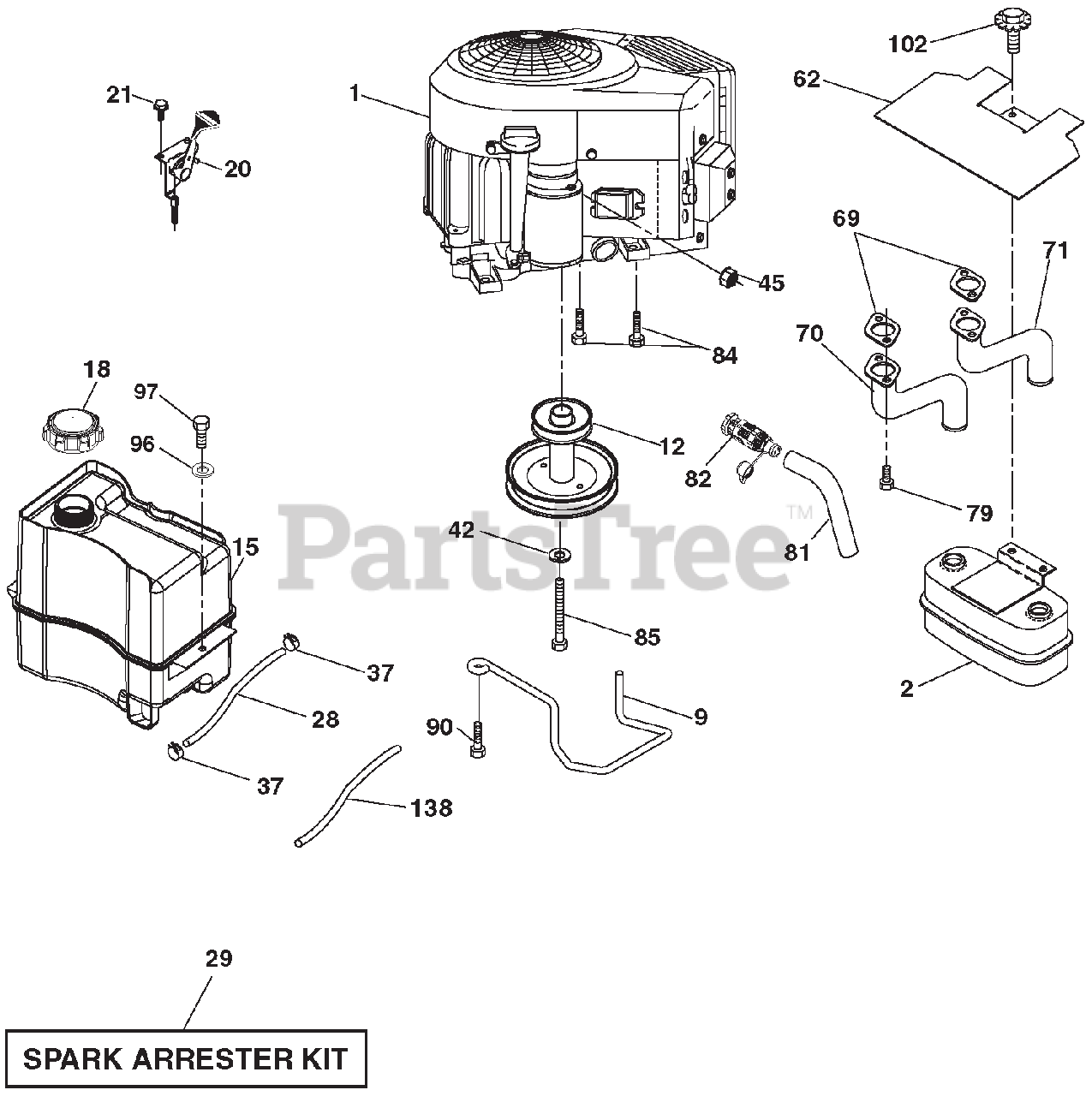

936095 (960460069-00) - Ariens 46" Lawn Tractor, Automatic Engine Parts Diagram

46" Lawn Tractor, Automatic

Engine Parts Diagram

  • Title

1

ENGINE BRIGGS MODEL NO. 44R677-0011-G1 (585742501)(ORDER PARTS FROM ENGINE MANUFACTURER. 1-800-233-3723)

Note: (585742501)(ORDER PARTS FROM ENGINE MANUFACTURER. 1-800-233-3723)

$

$

Not available

2

Ariens 21546118

MUFFLER ASM.TWIN.LO-TONE

$74.99

$

In Stock, Qty 7

0

9

Ariens 21548864

KEEPER BELT ENGINE

$

$

Not available

12

Ariens 21546606

PULLEY.ENGINE.5.0.P.D.

$90.99

$

Usually ships in 4-12 days

0

15

Ariens 21547730

TANK.FUEL.2.5.GAL.
(Superseded to 21547650)

$

$

Not available

18

Ariens 21548118

CAP.FUEL
(Superseded to 21547731)

$37.99

$

Usually ships in 4-12 days

0

20

Ariens 21548998

CONTROL THROTTLE

$33.99

$

In Stock, only 1 left!

0

21

Ariens 21546675

Screw

$

$

Not available

28

Ariens 21548052

LINE.FUEL.20"

$

$

Not available

29

Ariens 21546090

KIT.SPARK ARRESTOR(392390 B&S)

Note: (392390 B&S)

$

$

Not available

37

Ariens 21546069

CLAMP.HOSE.BLK.

$7.49

$

Usually ships in 4-12 days

0

42

Ariens 21546004

WASHER.LOCK.HVY HLCL.SPR.7/16
(Superseded to 21547501)

$3.49

$

Usually ships in 4-12 days

0

45

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$2.99

$

Usually ships in 4-12 days

0

62

Ariens 21547370

SHIELD.HEAT.MUFFLER.

$

$

Not available

69

Ariens 21547297

GASKET MUFFLER

$17.99

$

Usually ships in 4-12 days

0

70

Ariens 21548498

EXHAUST TUBE LH

$

$

Not available

71

Ariens 21548499

EXHAUST TUBE RH

$

$

Not available

79

Ariens 21547307

SCREW SOCKET HEAD 5/16-18 X 1

$6.99

$

Usually ships in 4-12 days

0

81

Ariens 21546117

TUBE.DRAIN.OIL.EASY

$4.99

$

In Stock, Qty 20+

0

82

Ariens 21547348

VALVE OIL DRAIN

$18.99

$

In Stock, Qty 17

0

84

Ariens 21547225

Screw 3/8-16 x <
(Superseded to 21547081)

$10.99

$

In Stock, Qty 11

0

85

Ariens 21546191

BOLT.HEX.7/16-20X4XGR5-1.5THR.

$

$

Not available

90

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$7.49

$

In Stock, Qty 8

0

96

Ariens 21546277

WASHER.9/32 X 7/8 X 16GA.

$5.99

$

Usually ships in 4-12 days

0

97

Ariens 21546207

SCREW.HEXWSH.THDROL.1/4-20X3/4
(Superseded to 21548385)

$4.99

$

In Stock, only 1 left!

0

102

Ariens 21546180

SCREW.5/16-18X3/4.SMGML.TAP/BL
(Superseded to 21547490)

$12.99

$

In Stock, only 2 left!

0

138

Ariens 21546660

PURGE.LINE.CARB

$25.99

$

In Stock, only 1 left!

0
